Audix AP41BP Wireless Bodypack System

The Audix AP41BP is a Performance Series analog UHF wireless system built around the B60 bodypack transmitter. The AP41 pairs a single R41 receiver with one transmitter. The R41 is a single-tuner antenna-diversity design covering a 32 MHz window with 106 pre-coordinated frequencies, so up to 16 systems can share a room without hand-picking frequencies. One-touch auto scan finds a clear channel and an infrared sync beams it to the transmitter.

The B60 takes any lavalier, headworn, or instrument microphone in the Audix line on its 3-pin mini-XLR input, and it will take a guitar or bass just as happily. Gain is switchable at 0, -6, -12 and -24 dB so a hot instrument pickup and a quiet lavalier can both sit correctly.

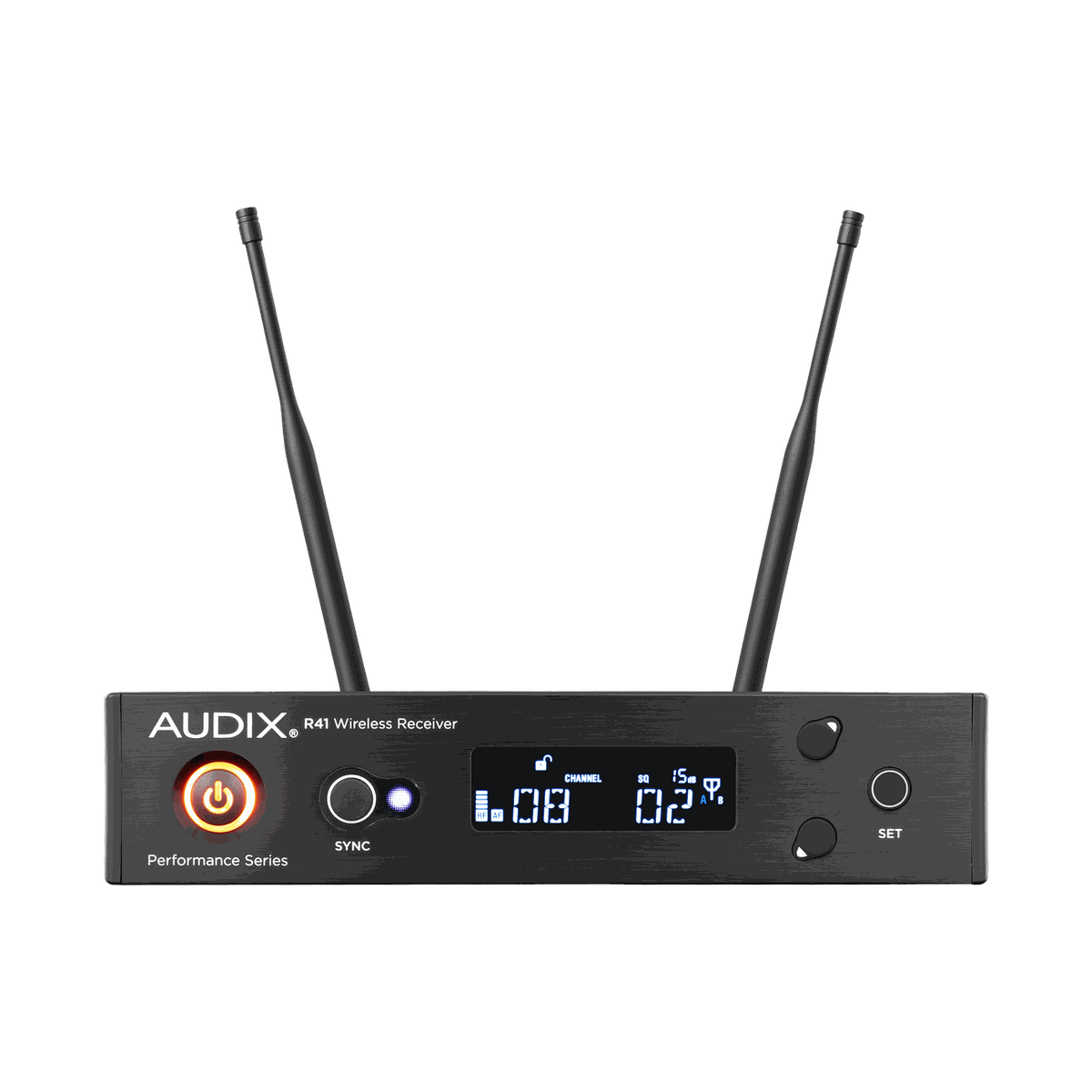

ReceiverR41 single tuner, antenna diversity
Frequency RangeA: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
Switchable Frequencies106 pre-coordinated frequencies
Simultaneous SystemsUp to 16
Audio Frequency Response45 Hz - 18 kHz
Signal-to-Noise Ratio105 dB at 30 kHz deviation (A-weighted)
Output ConnectorsXLR balanced and 1/4 in unbalanced

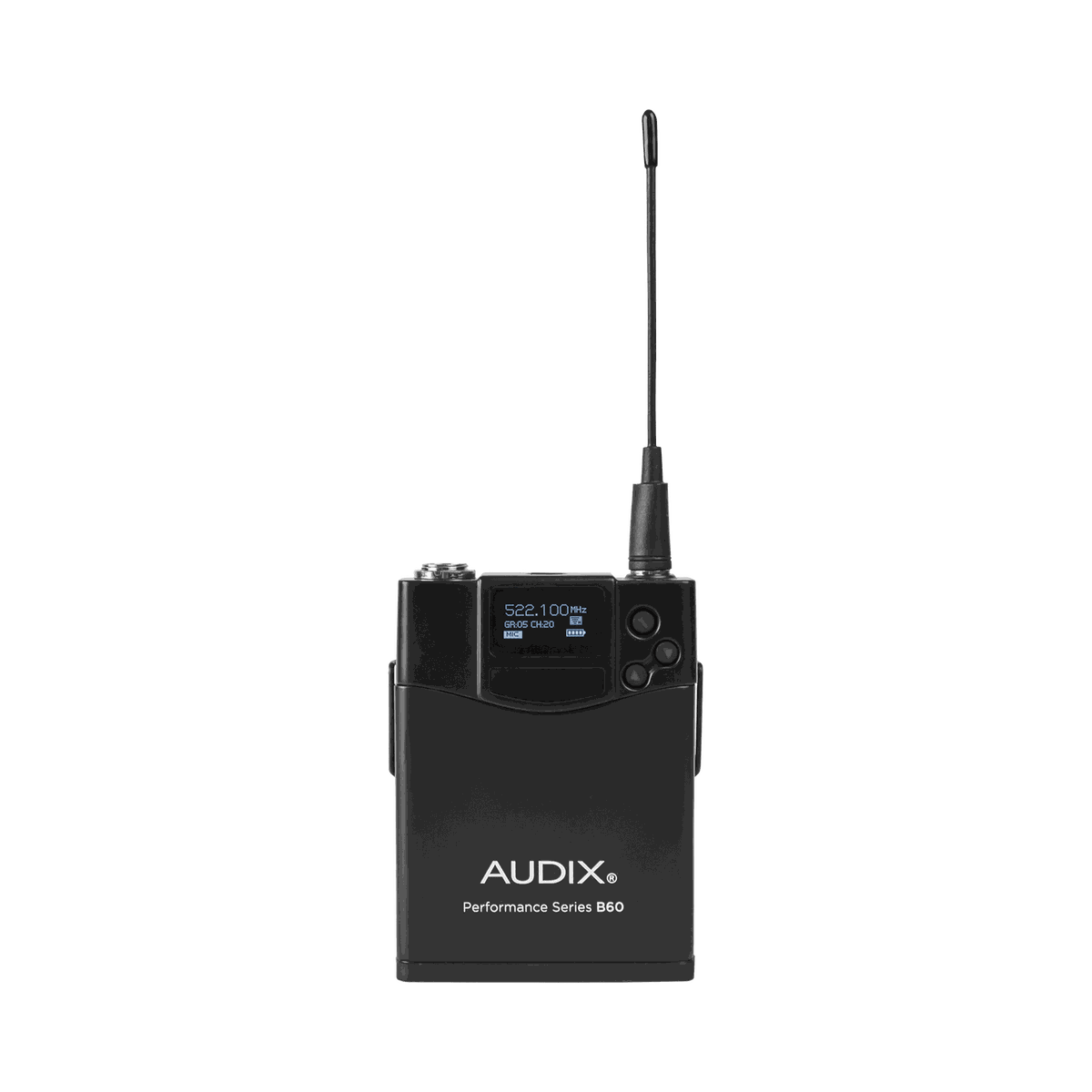

TransmitterB60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery2 x AA, approximately 14 hours
