Audix AP41OM2L10 Wireless Combo System

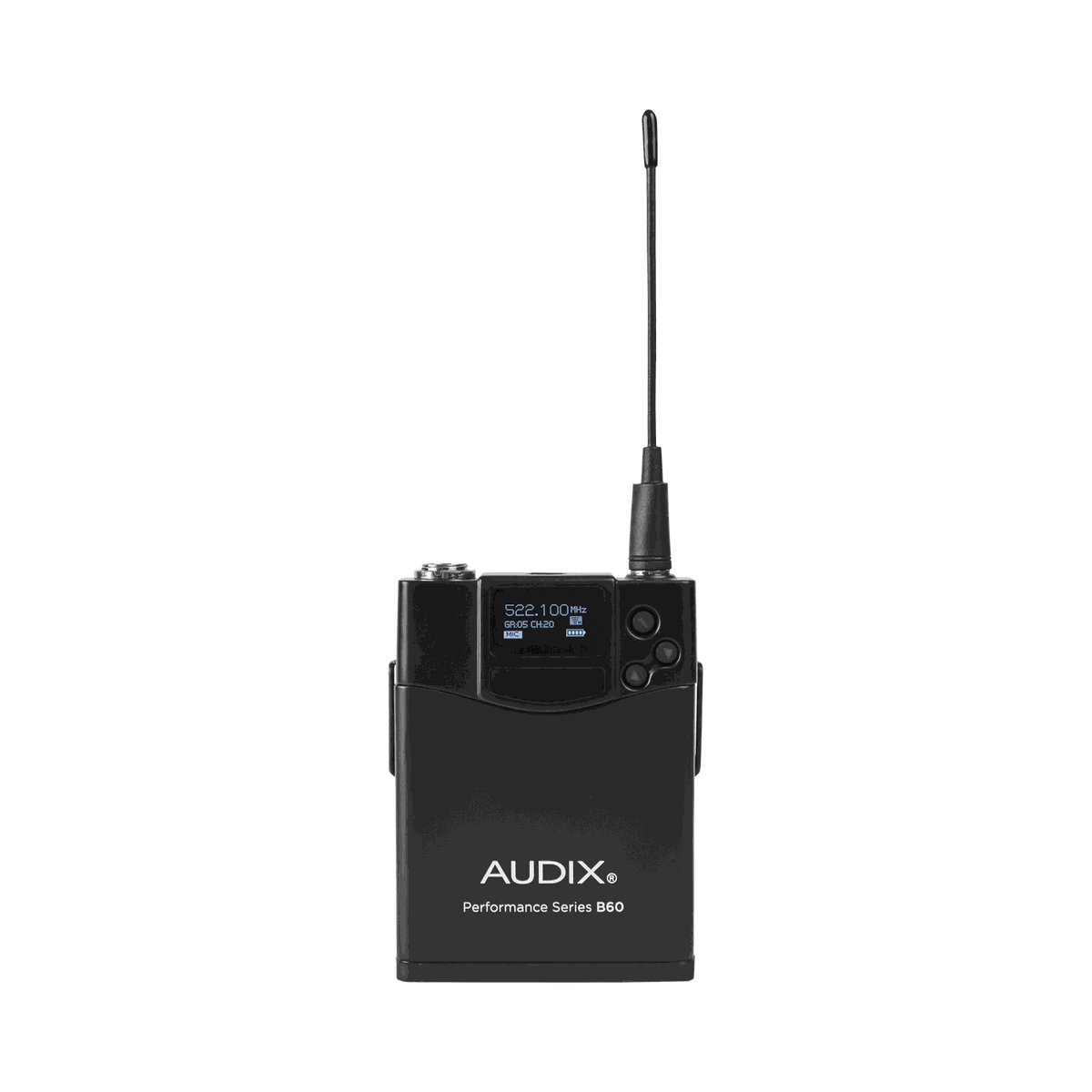

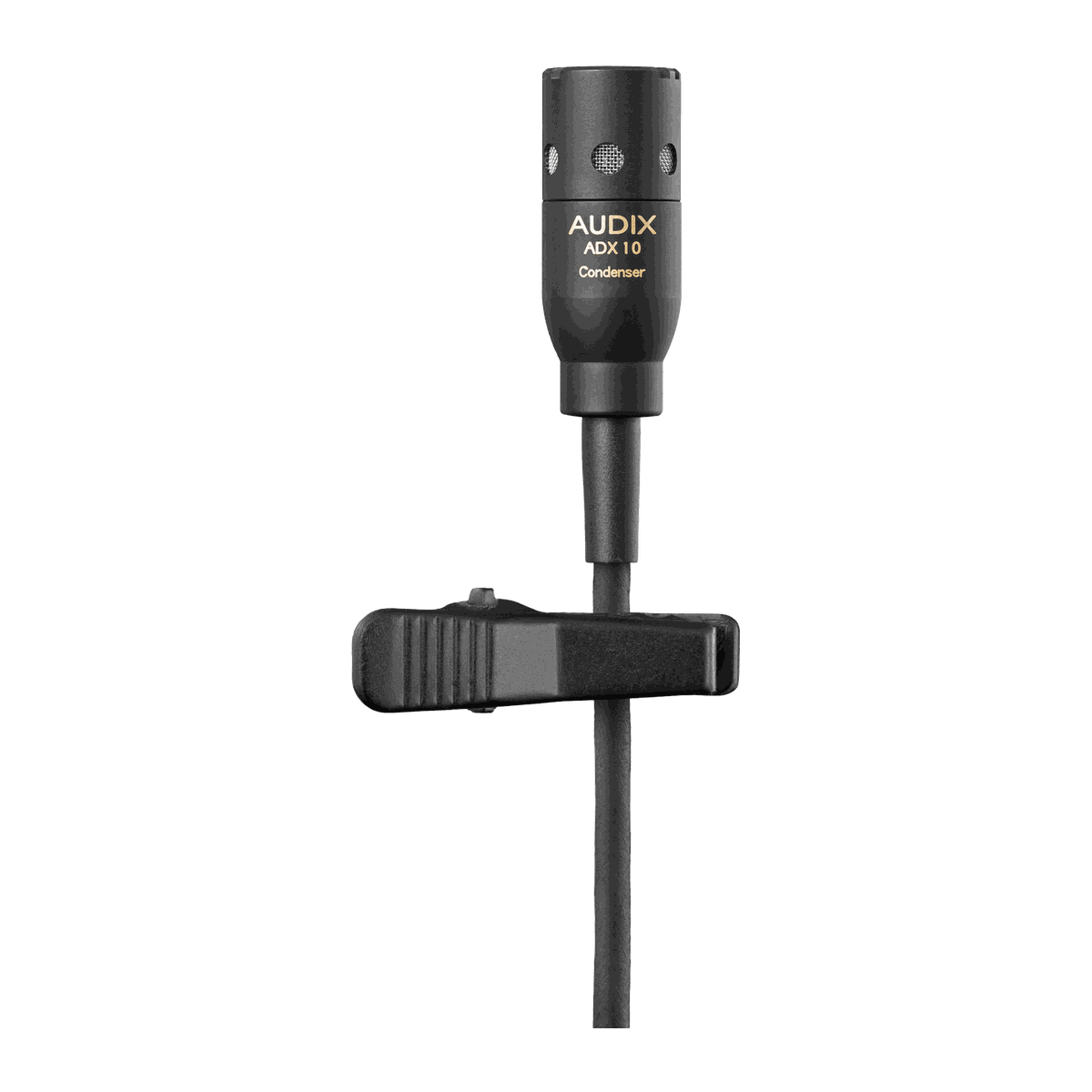

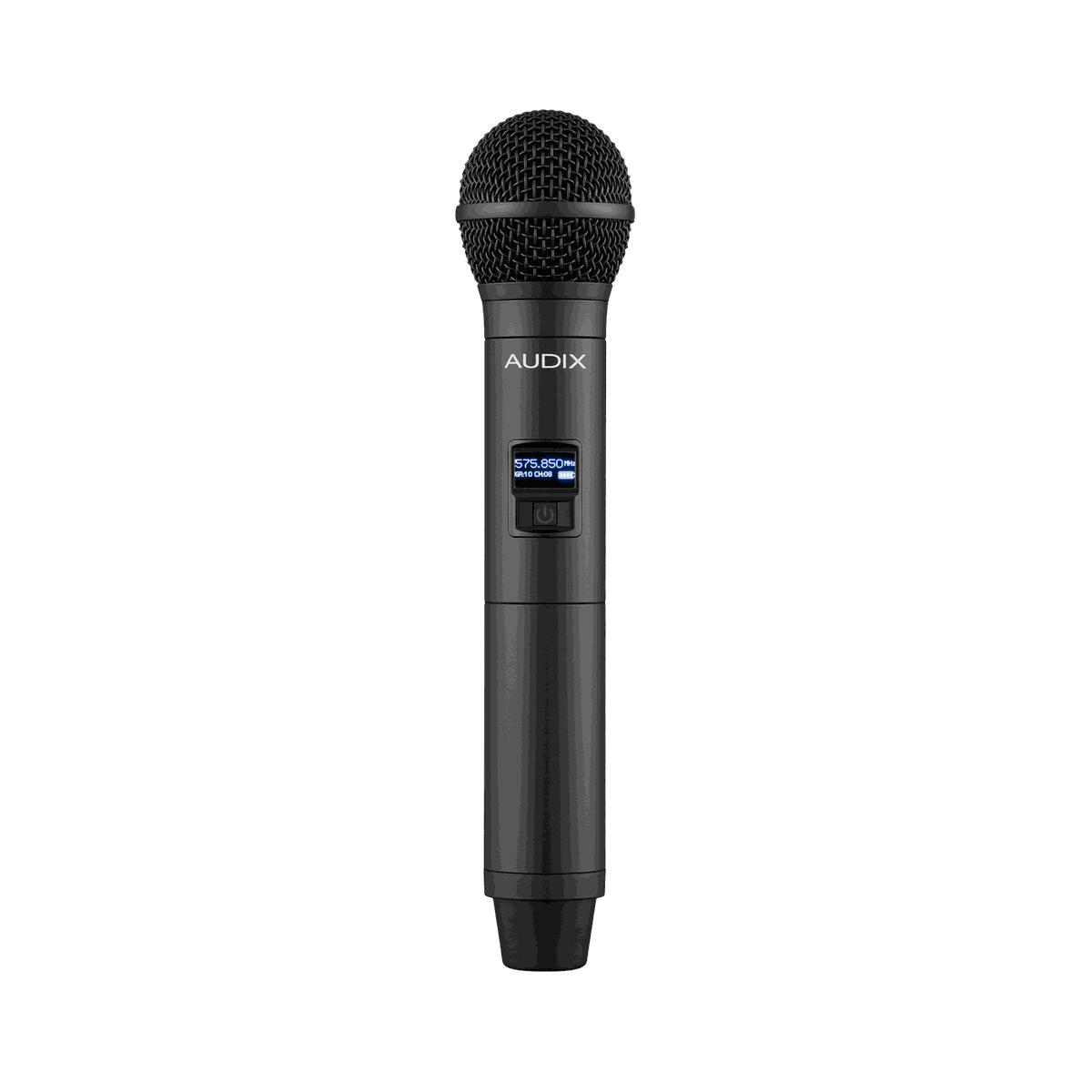

The Audix AP41OM2L10 is a Performance Series analog UHF wireless system built around both an OM2 handheld transmitter and a B60 bodypack with an ADX10 lavalier. The AP41 pairs a single R41 receiver with one transmitter. The R41 is a single-tuner antenna-diversity design covering a 32 MHz window with 106 pre-coordinated frequencies, so up to 16 systems can share a room without hand-picking frequencies. One-touch auto scan finds a clear channel and an infrared sync beams it to the transmitter.
One receiver, two ways to talk. The kit suits rental stock, hotels, and education, where the same channel is a lectern lavalier in the morning and a handheld in the afternoon. Note that only one transmitter can be live on the channel at a time.
| Receiver | R41 single tuner, antenna diversity |
|---|---|
| Frequency Range | A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz |
| Switchable Frequencies | 106 pre-coordinated frequencies |
| Simultaneous Systems | Up to 16 |
| Audio Frequency Response | 45 Hz - 18 kHz |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Output Connectors | XLR balanced and 1/4 in unbalanced |
| Transmitters | H60 handheld and B60 bodypack, 10 mW / 30 mW RF |
| Transmitter Battery | 2 x AA each, approximately 14 hours |
