Audix AP41OM2 Handheld Wireless System

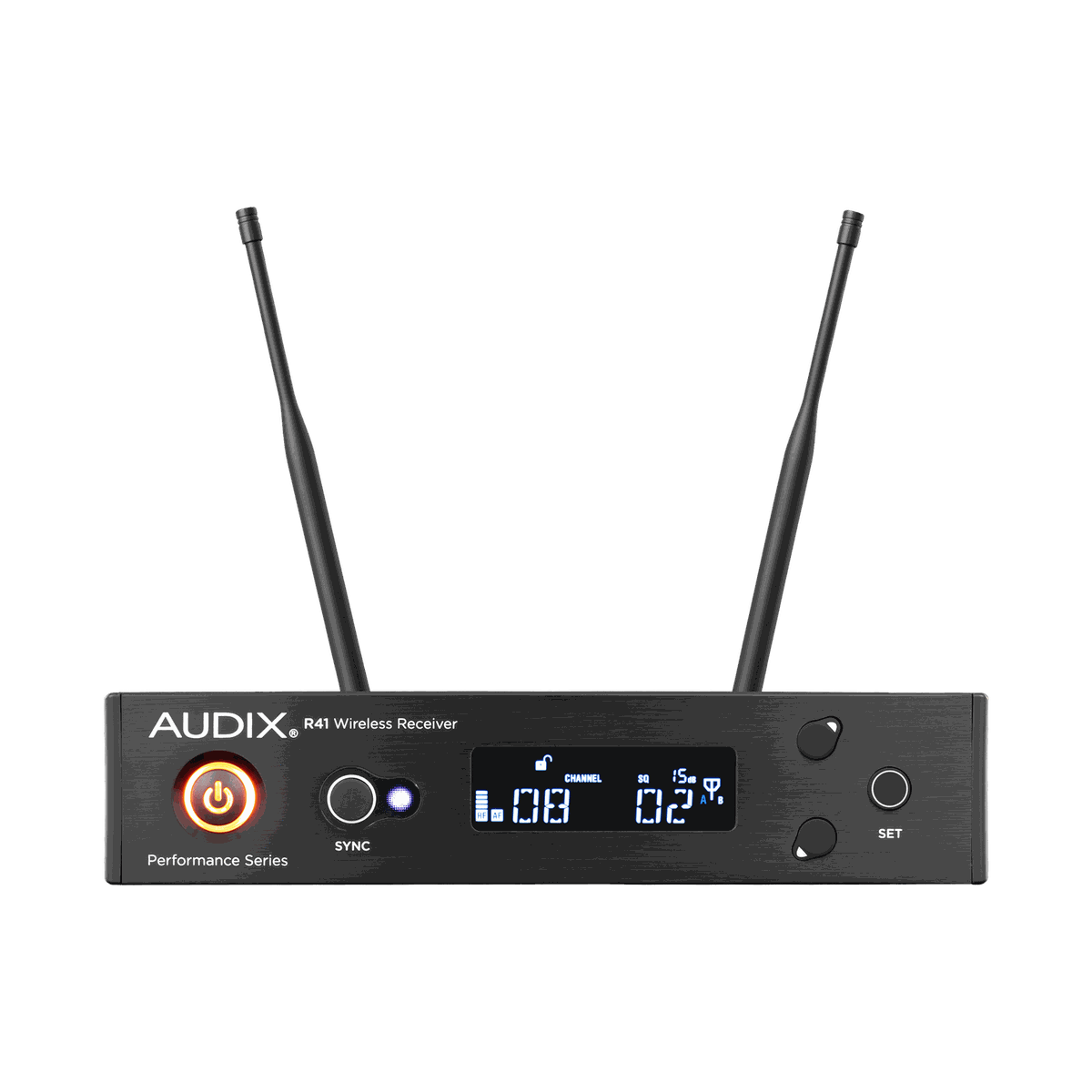

The Audix AP41OM2 is a Performance Series analog UHF wireless system built around the Audix OM2 handheld dynamic. The AP41 pairs a single R41 receiver with one transmitter. The R41 is a single-tuner antenna-diversity design covering a 32 MHz window with 106 pre-coordinated frequencies, so up to 16 systems can share a room without hand-picking frequencies. One-touch auto scan finds a clear channel and an infrared sync beams it to the transmitter.

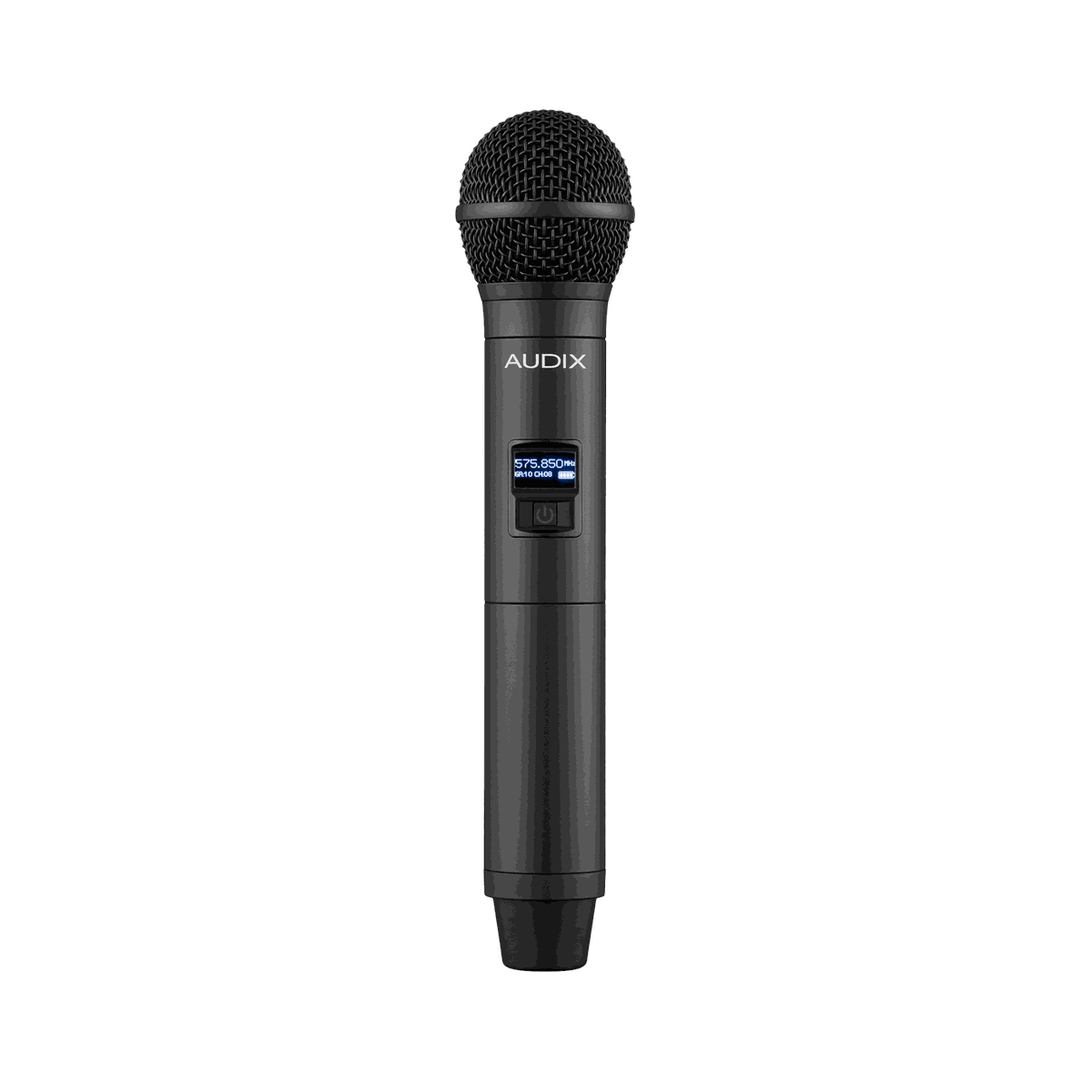

The OM2 is Audix's best-selling vocal capsule: slight bass proximity, a tailored midrange, and a full-bodied voice suited to small and mid-size PA systems. It isolates well on a crowded stage, rejects feedback, and takes high SPL without breaking up.

Receiver	R41 single tuner, antenna diversity
Frequency Range	A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
Switchable Frequencies	106 pre-coordinated frequencies
Simultaneous Systems	Up to 16
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced
Transmitter	H60 handheld, 53 mm diameter x 265 mm, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
