Audix AP41FLUTE Wireless System for Flute

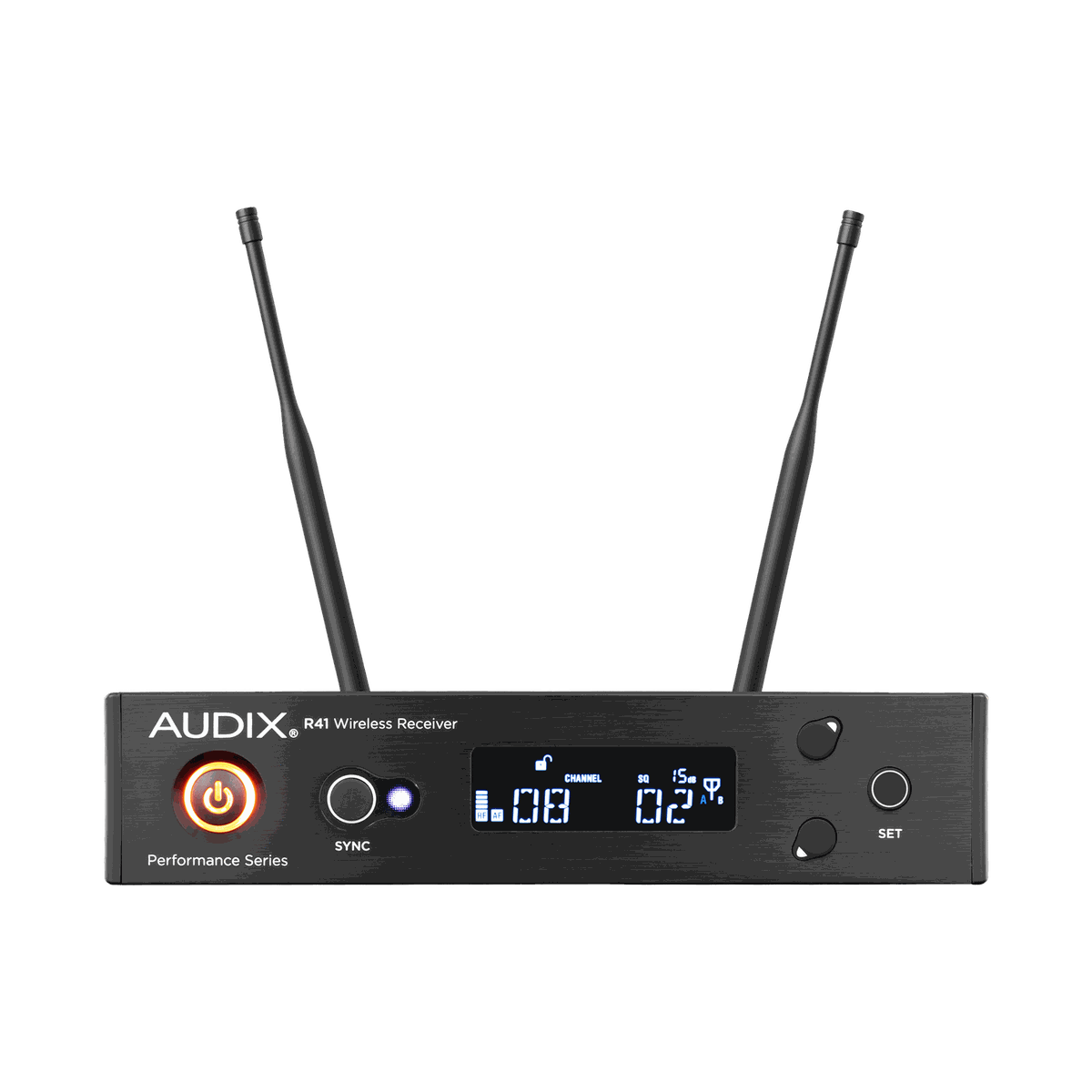

The Audix AP41FLUTE is a Performance Series analog UHF wireless system built around the ADX10FL miniature cardioid condenser for flute. The AP41 pairs a single R41 receiver with one transmitter. The R41 is a single-tuner antenna-diversity design covering a 32 MHz window with 106 pre-coordinated frequencies, so up to 16 systems can share a room without hand-picking frequencies. One-touch auto scan finds a clear channel and an infrared sync beams it to the transmitter.

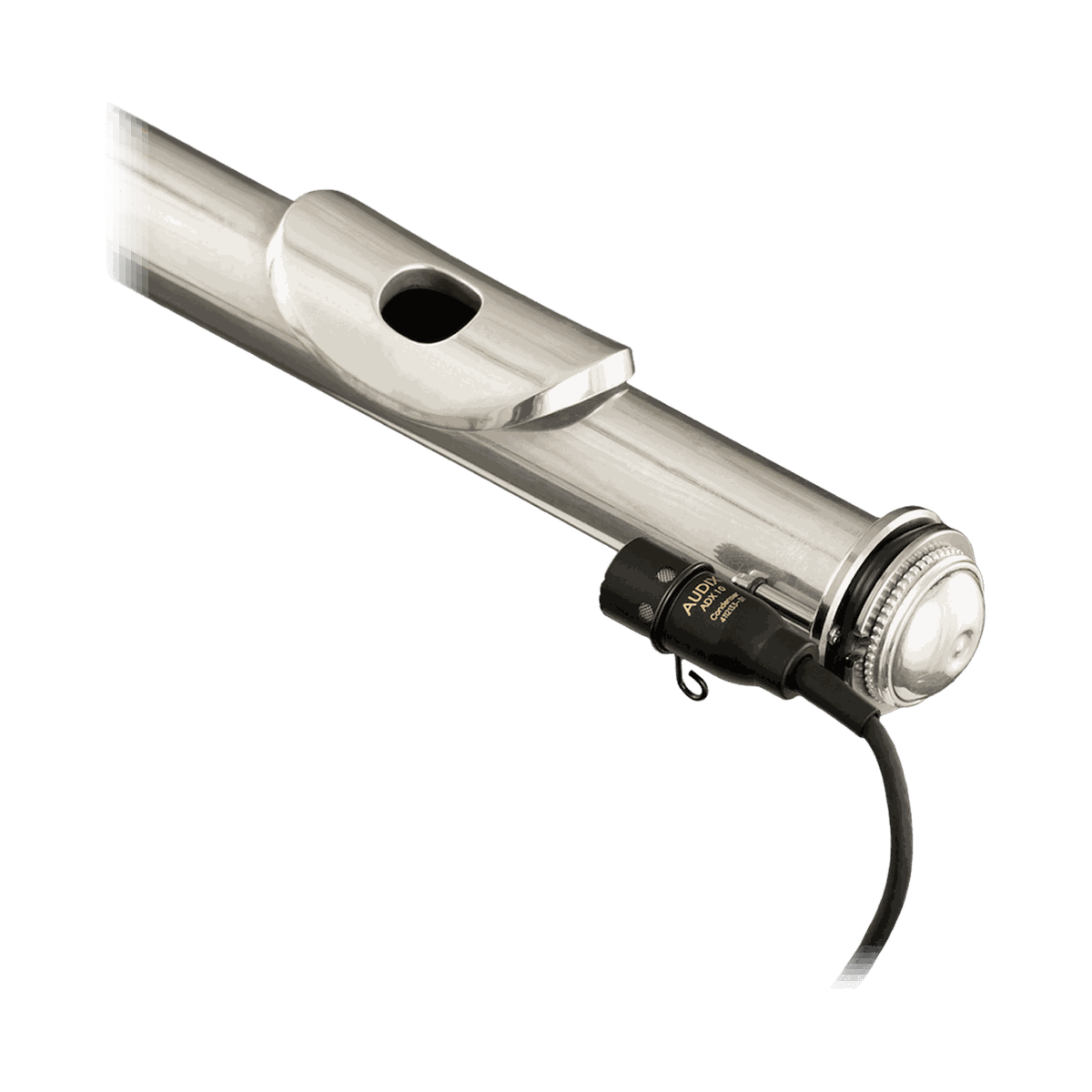

The ADX10FL clips to the headstock of a standard-size flute and reproduces both the tone and the percussive key noise of the instrument with detail. Its tight pattern is what isolates the flute from the rest of the stage.
| Receiver | R41 single tuner, antenna diversity |
|---|---|
| Frequency Range | A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz |
| Switchable Frequencies | 106 pre-coordinated frequencies |
| Simultaneous Systems | Up to 16 |
| Audio Frequency Response | 45 Hz - 18 kHz |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Output Connectors | XLR balanced and 1/4 in unbalanced |

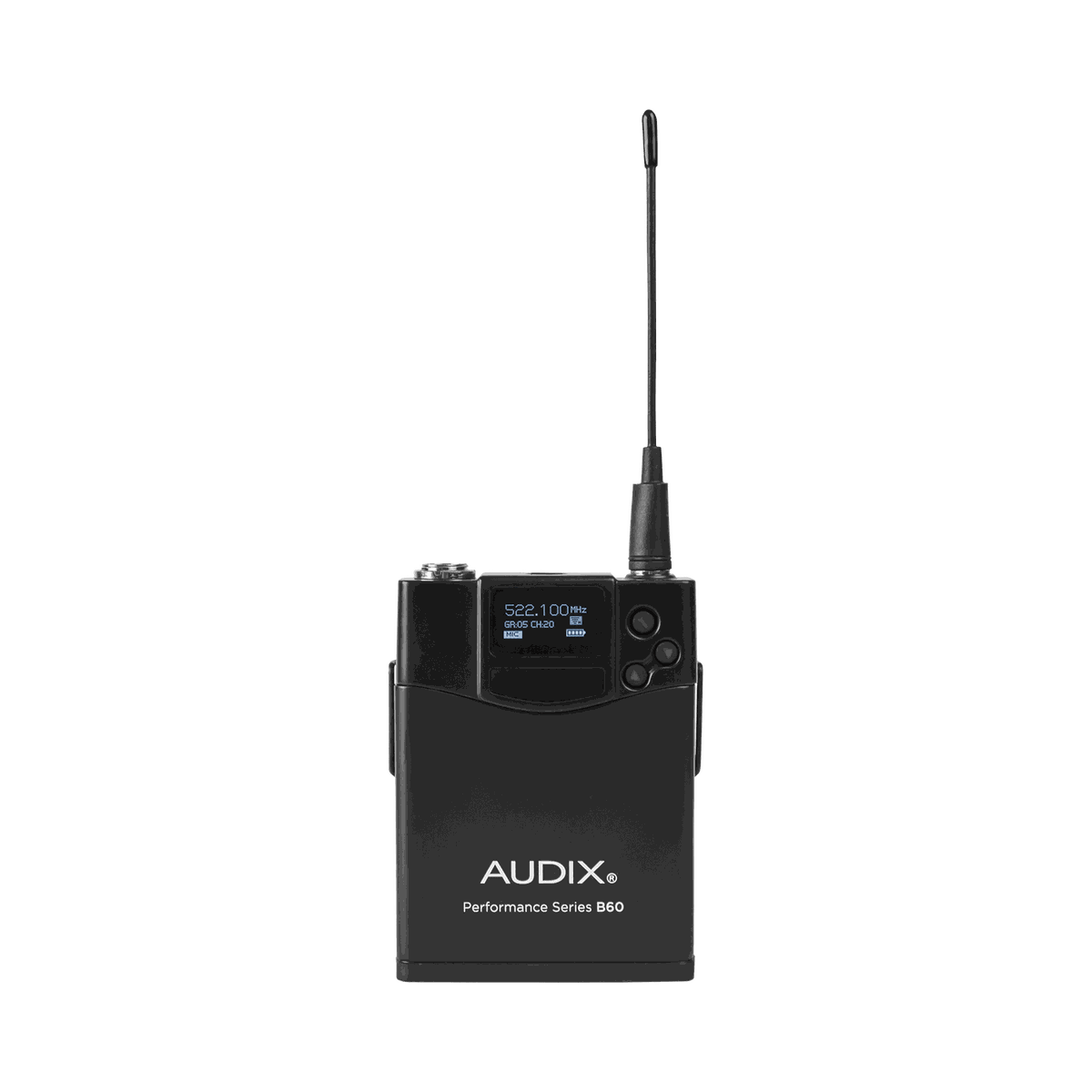

| Transmitter | B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF |
| Transmitter Battery | 2 x AA, approximately 14 hours |
