Audix AP41HT7 Wireless Headworn System

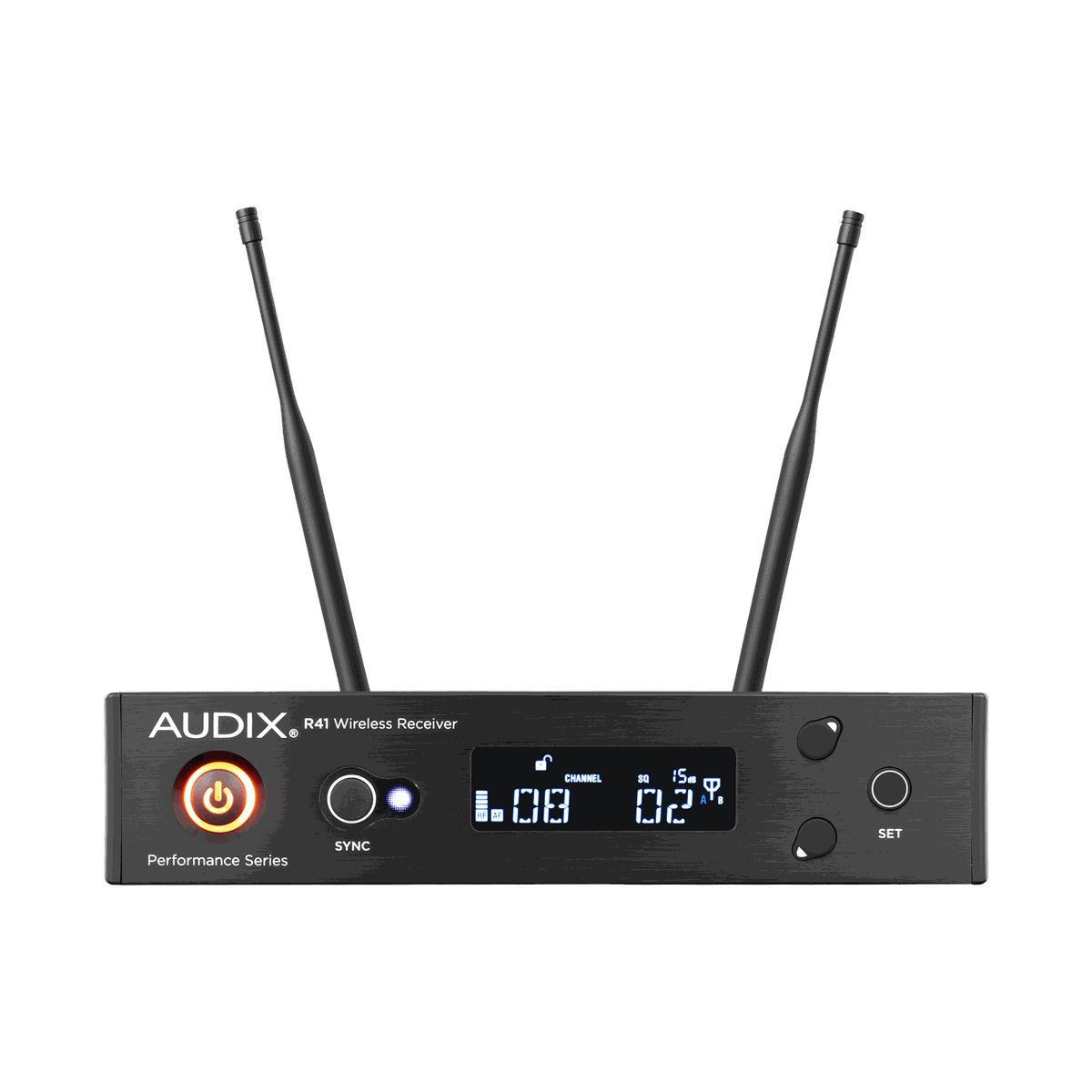

The Audix AP41HT7 is a Performance Series analog UHF wireless system built around the HT7 single-ear headworn condenser. The AP41 pairs a single R41 receiver with one transmitter. The R41 is a single-tuner antenna-diversity design covering a 32 MHz window with 106 pre-coordinated frequencies, so up to 16 systems can share a room without hand-picking frequencies. One-touch auto scan finds a clear channel and an infrared sync beams it to the transmitter.

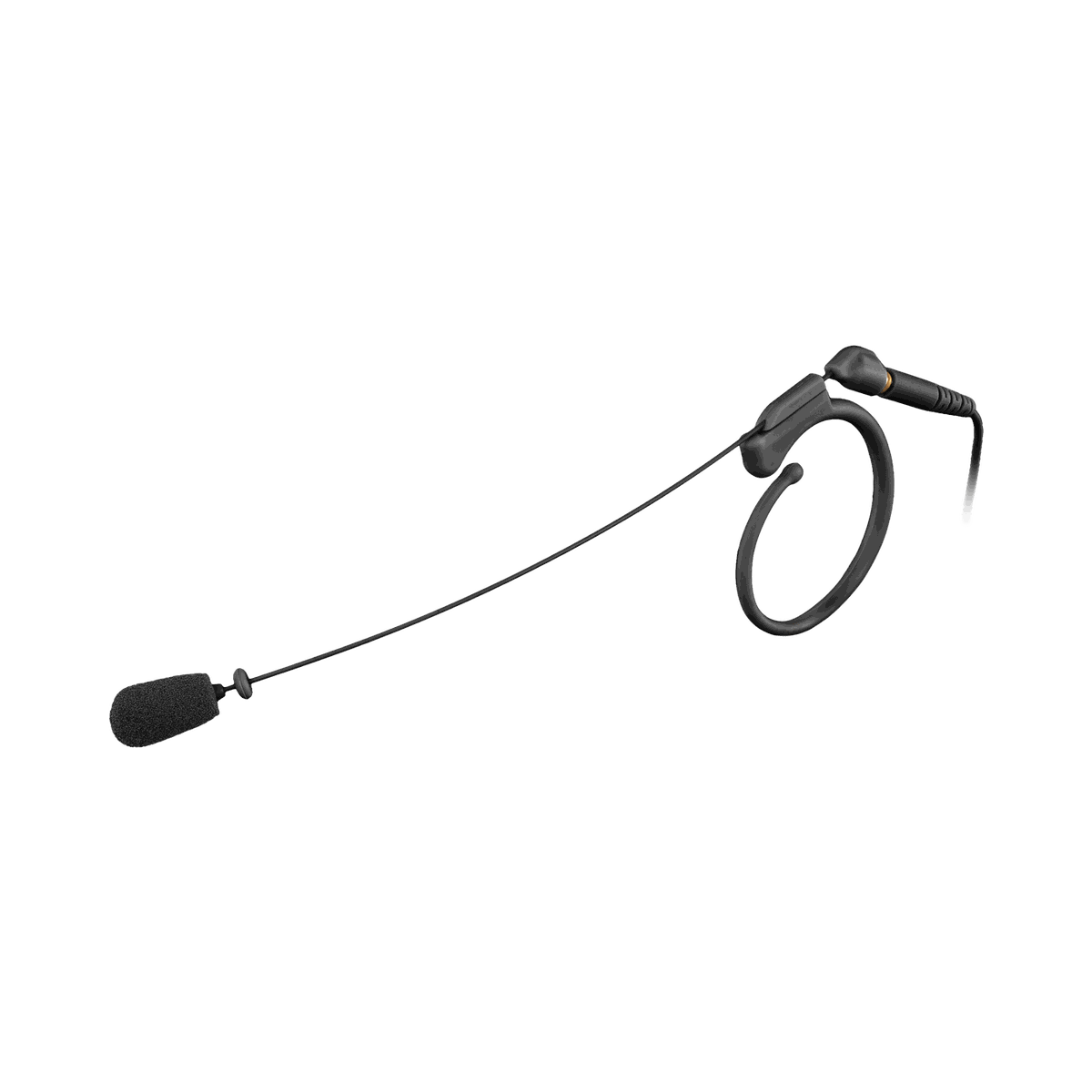

The HT7 uses a 3 mm element, the smallest microphone Audix builds. The earpiece can be worn on either ear and the boom arm adjusts for length, which is what lets one unit fit a rotating cast of presenters.

Receiver	R41 single tuner, antenna diversity
Frequency Range	A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
Switchable Frequencies	106 pre-coordinated frequencies
Simultaneous Systems	Up to 16
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

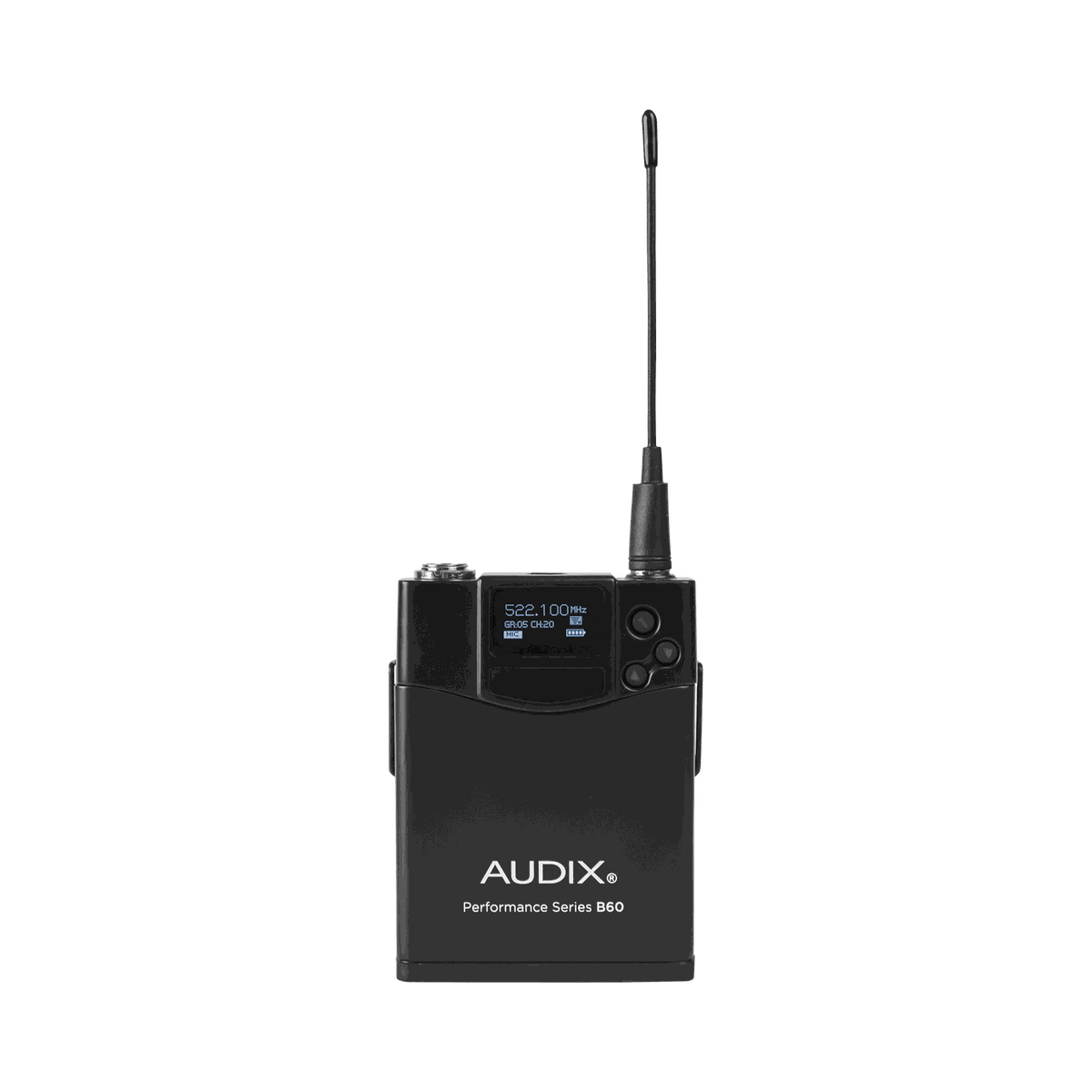

Transmitter	B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
