AUDAC XMP44 Modular Audio System

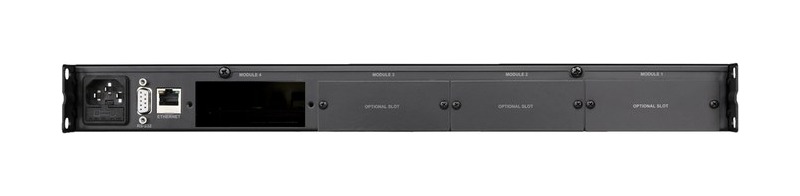

The XMP44 is a 1U, 19 in frame with four SourceCon slots, and you fill those slots with the audio sources a building needs: FM, DAB/DAB+ or internet radio tuners, a voice file player for announcements, and other AUDAC modules. One rack space then holds up to four different sources for background music and messages, and the rear panel gives each module its own USB port.
A 2.8 in graphical LCD, a rotary dial and four buttons set it up from the front panel, and a built-in PFL speaker with its own volume lets you check any source without walking to a zone. It also runs from the AUDAC Touch app, an HTML5 web interface, or a control system over RS-232 and TCP/IP. An optional ANX44 interface adds Dante with four channels in and four out. It ships with slot 4 open and slots 1 to 3 behind blank panels.
- Dimensions482 x 44 x 330 mm
- Inputs Type4 x SourceCon interface card slots
- Frequency Response (+/- 3 dB)20 Hz - 20 kHz
- Power Source110 ~ 240 V AC / 50 ~ 60 Hz
- Power Consumption2 W (without module installed)
| Inputs Type | 4 x SourceCon interface card slots |
|---|---|
| Mounting | 19 in rack, 1U |
| Remote Control | RS-232, TCP/IP, AUDAC Touch app, HTML5 web interface |
| Dante Option | ANX44 interface, 4 in / 4 out |
| Dimensions | 482 x 44 x 330 mm |
| Control | Front panel |
| Frequency Response (+/- 3 dB) | 20 Hz - 20 kHz |
| Display Type | 2.8 in Graphical LCD |
| Monitoring | Front PFL speaker with vol control |
| Power Source | 110 ~ 240 V AC / 50 ~ 60 Hz |
| Power Consumption | 2 W (without module installed) |
| Power Supply | Switching mode |
| Weight | 3.400 kg |
