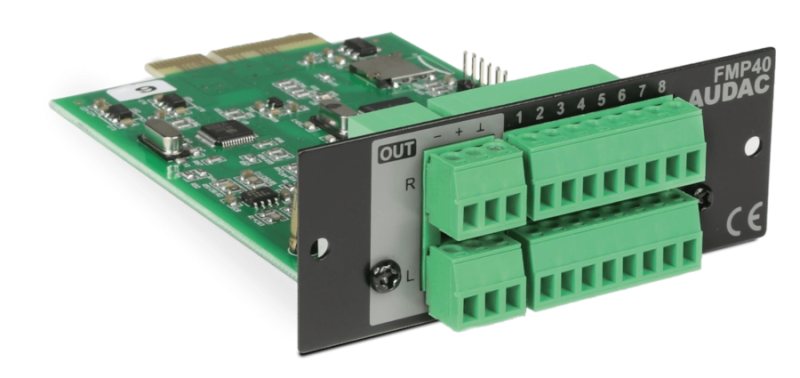

AUDAC FMP40

The FMP40 is AUDAC's sourceCon voice file media player module and THD+N < 0.07% at 1 kHz. The inputs type is 15 trigger contact inputs (NO or NC).

It connects by SourceCon interface card slot. Inputs land on 2 x 8-pin Euro Terminal Block (Pitch - 0.15 in) and outputs on 3-pin Euro Terminal Block (Pitch - 3.81 mm). It measures 3.43 x 1.36 x 4.49 in (W x H x D) and weighs 0.17 lb.

Connection	SourceCon interface card slot
Inputs Type	15 trigger contact inputs (NO or NC)
Inputs Connector	2 x 8-pin Euro Terminal Block (Pitch - 0.15 in)
Outputs Type	Balanced stereo line outputs
Outputs Connector	3-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs Level	+8 dB ~ -91 dB
Compatible media Playback	USB memory
Compatible filesystems	FAT16
