AtlasIED BB-EB1616DT BlueBridge® Expansion I/O Box with Dante™

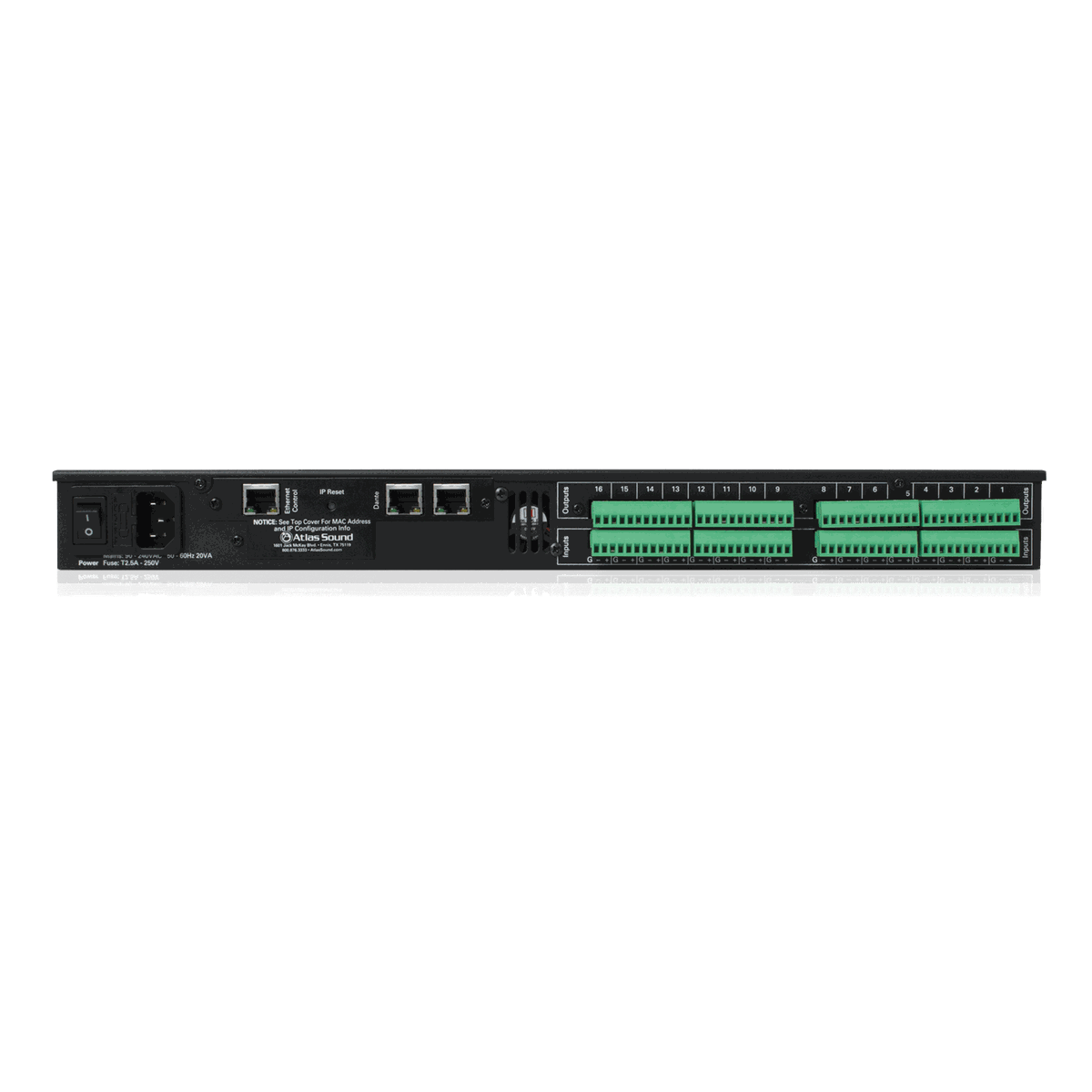

The AtlasIED BB-EB1616DT is a BlueBridge® expansion I/O box with Dante™. The BB-EB1616DT is a single rackspace device with LED indicators for each channel, network LEDs and power LEDs on the front panel. On the rear panel are dual RJ-45 connectors for Dante™, one RJ-45 network control connector, 16 balanced mic/line inputs and 16 balanced line level outputs all using Euro Block/Phoenix style connectors. Published frequency response is 20Hz - 20kHz.

The BB-EB1616DT can be incorporated into any BlueBridge® system as an I/O expander or it can be used as a standalone digital snake on networks featuring Dante™. Input configuration, mutes, analog and digital trim, phantom power and live level meters work with all BlueBridge software platforms. AtlasIED lists 16 x 16 Dante™ network I/O; 16 x 16 analog I/O; selectable mic/line inputs; 48V phantom power. It measures 19" (483mm) wide. It carries a manufacturer warranty of 36 months from date of purchase.
