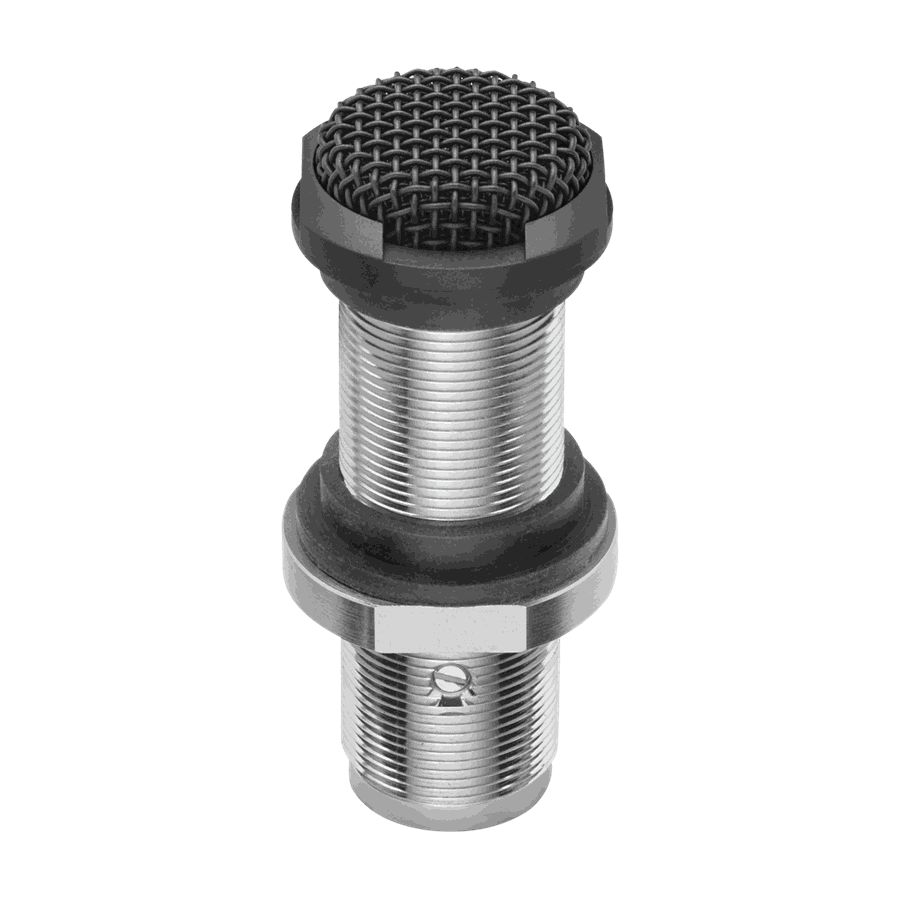

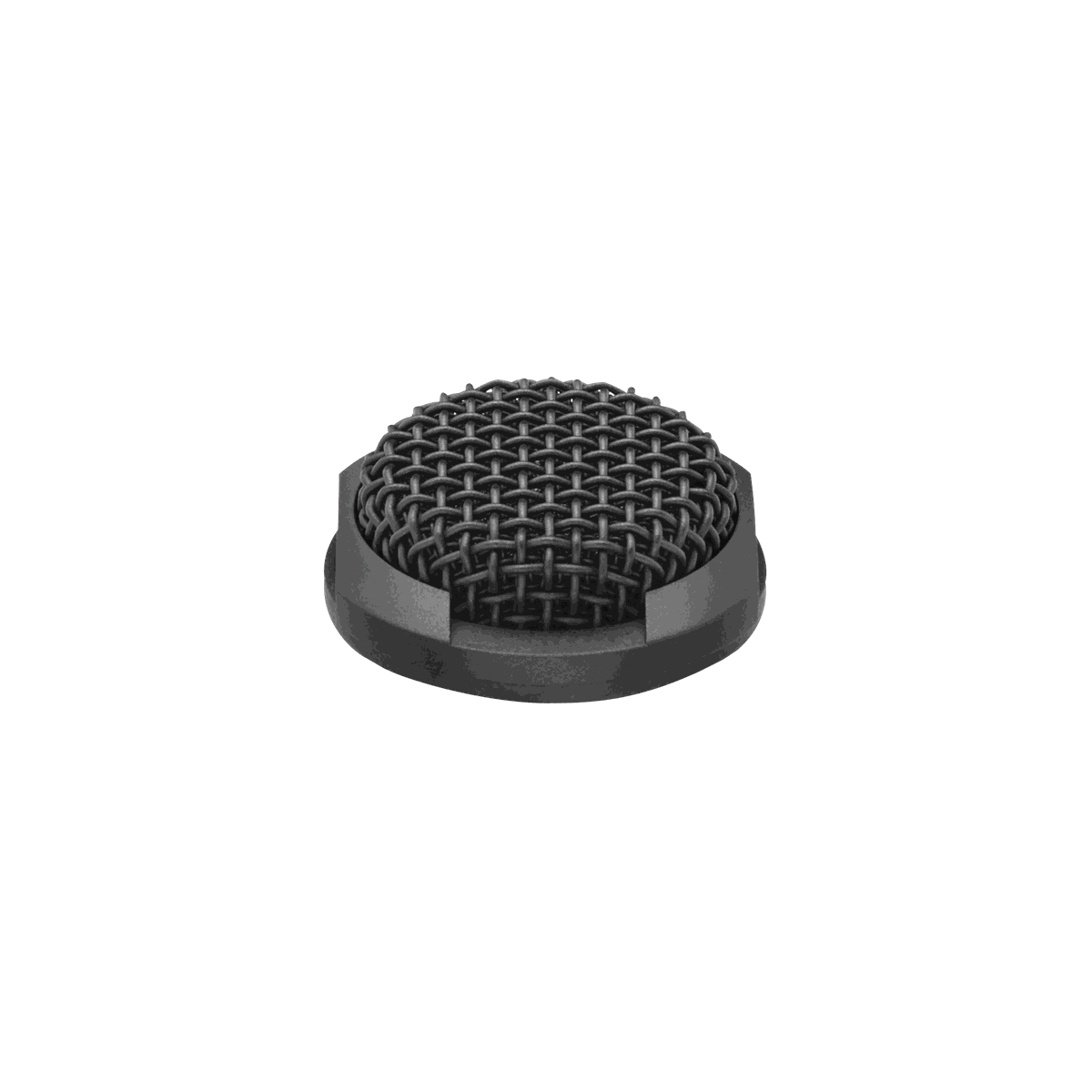

Audio-Technica ES945O Omnidirectional Boundary Microphone

The ES945O is a low-profile omnidirectional condenser boundary microphone that mounts flush into a tabletop, ceiling, or panel for conferencing, recording, and monitoring. Its all-metal case and dual-layer perforated grille house a self-contained power module, and it ships with rubber isolators to damp vibration from the mounting surface; UniGuard RFI-shielding technology keeps it quiet near phones and other RF sources.

Four output/control versions cover different installs: XLR is a standard 3-pin XLR output with IPX4 water resistance for splash protection; TB3 is an ultra-compact terminal-block version sized for tight tabletop, ceiling, or wall mounts; FM3 adds a two-state RGB LED ring (7 colors, plus off) and a touch-sensitive switch for local mute over a 3-pin XLR; and FM5 is the same LED/switch package on a 5-pin XLR, with the switch configurable to toggle mute or trigger an external device like a camera. XLR and TB3 are available in black or white.

TypeOmnidirectional condenser boundary microphone
Polar PatternOmnidirectional, 360°
Frequency Response60-15,000 Hz
Maximum SPL130 dB (1 kHz, 1% THD)
Power11-52V DC phantom, 2 mA
Connector3-pin XLR (XLR/FM3), 5-pin XLR (FM5), or compact terminal block (TB3)
Water ResistanceIPX4 (XLR, TB3 versions)
ControlFM3/FM5: 7-color RGB mute LED ring + touch-sensitive switch
