Audio-Technica BP3600 Immersive Audio Microphone

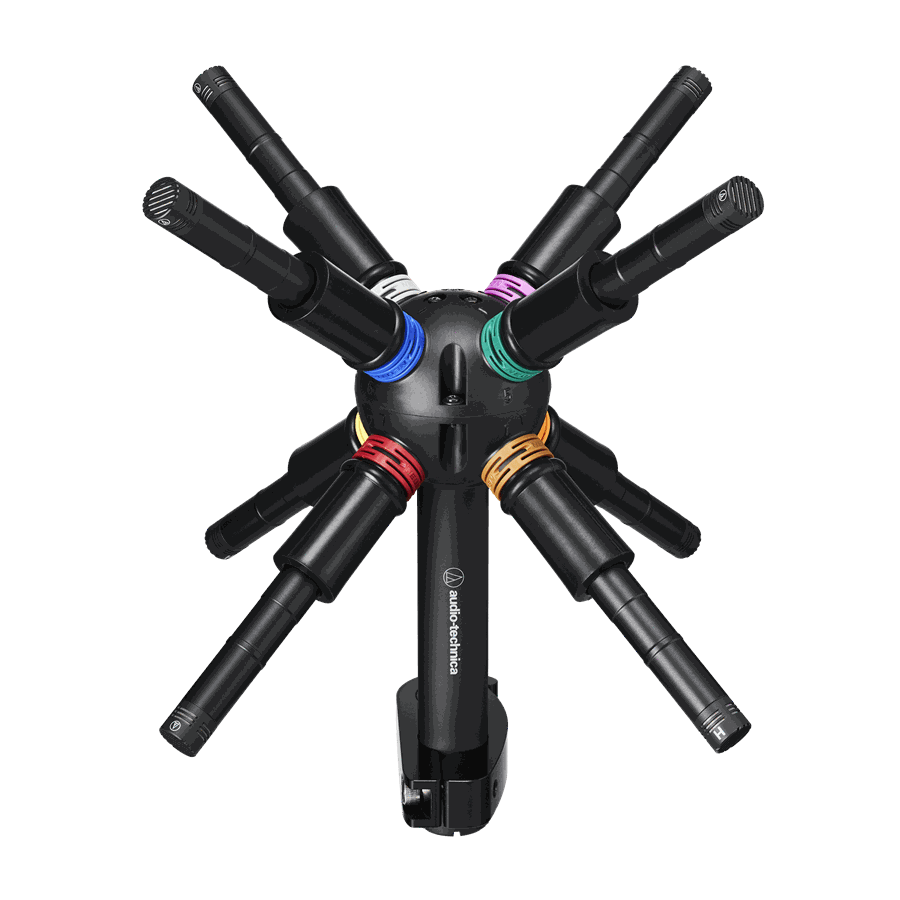

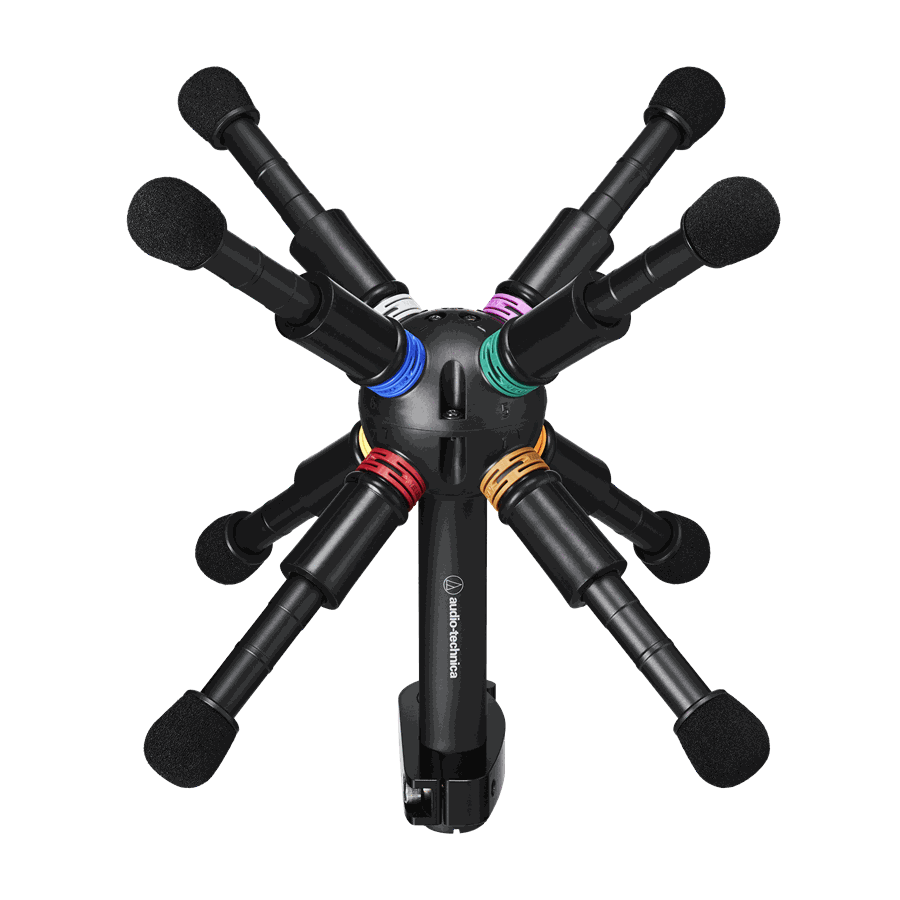

The BP3600 arranges eight compact hypercardioid condenser capsules into a cube, each 3.5 inches long and equidistant from the center, 15 cm apart, to capture immersive and object-based audio from a single mount point instead of rigging eight separate mics. Each capsule keeps its own excellent high-frequency response while staying small enough that the whole array remains practical to fly or stand on a film, broadcast, or live sound set.

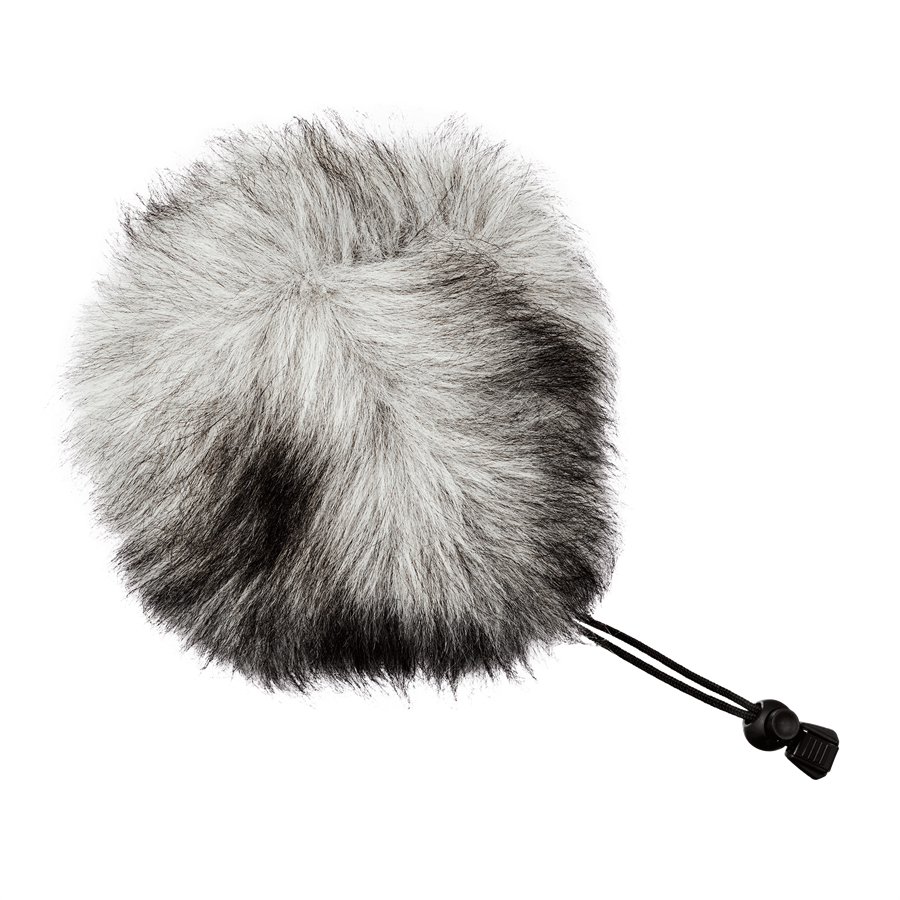

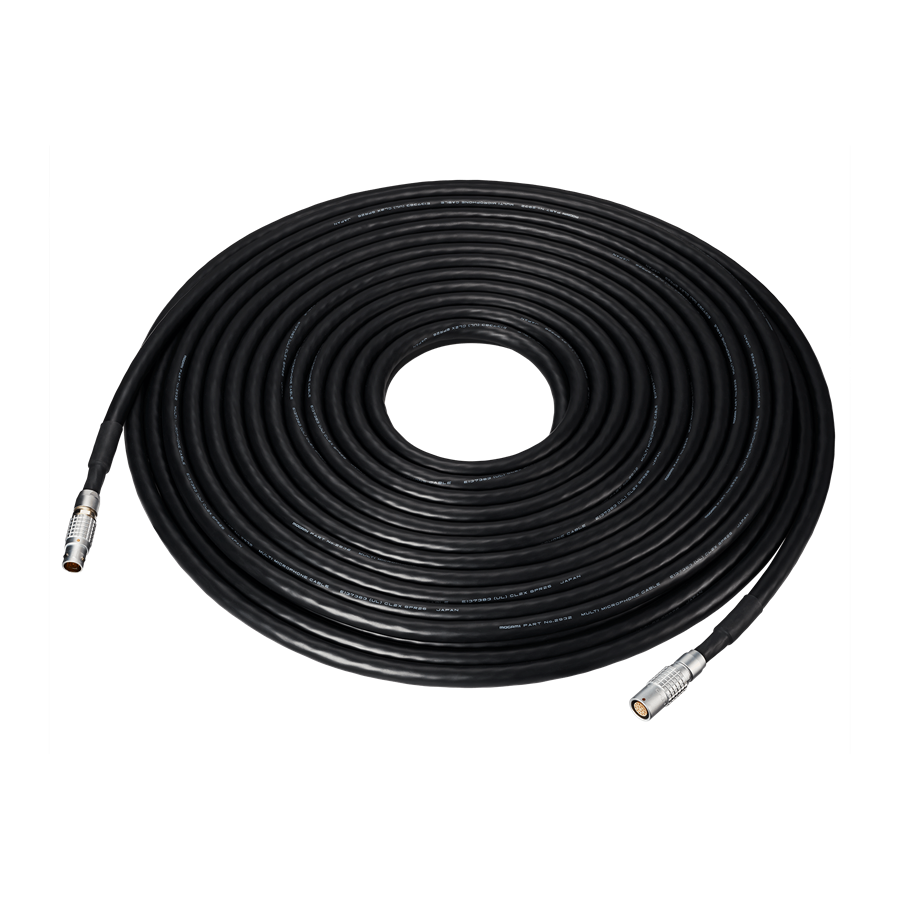

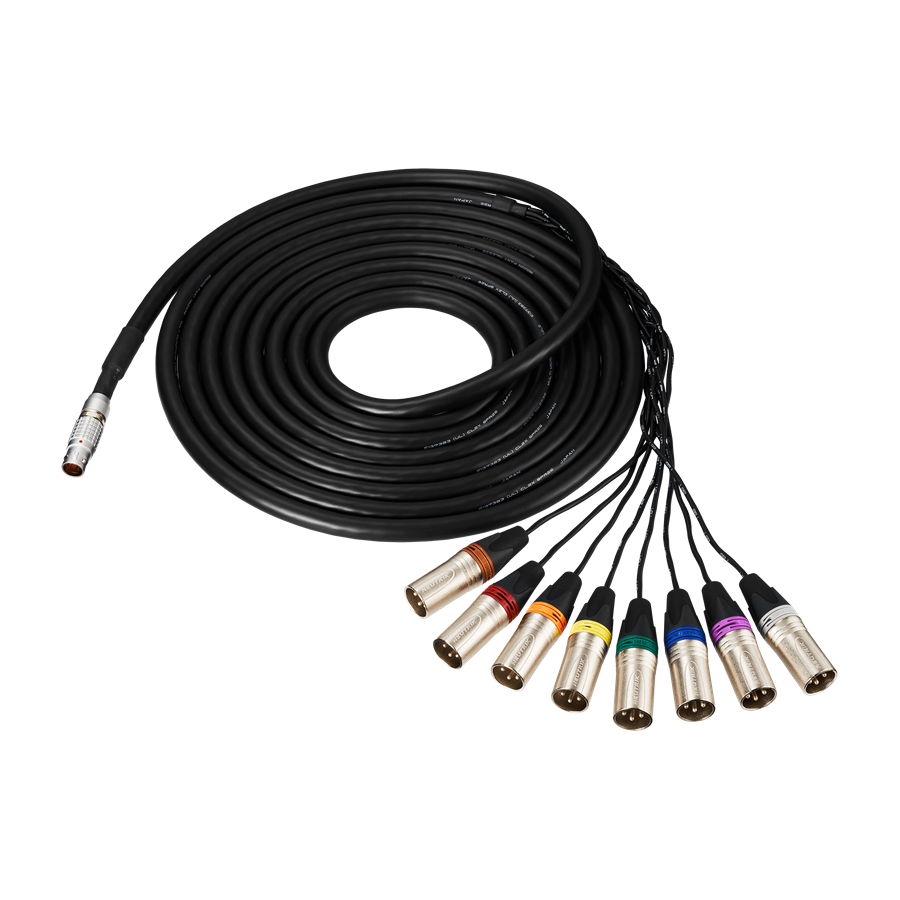

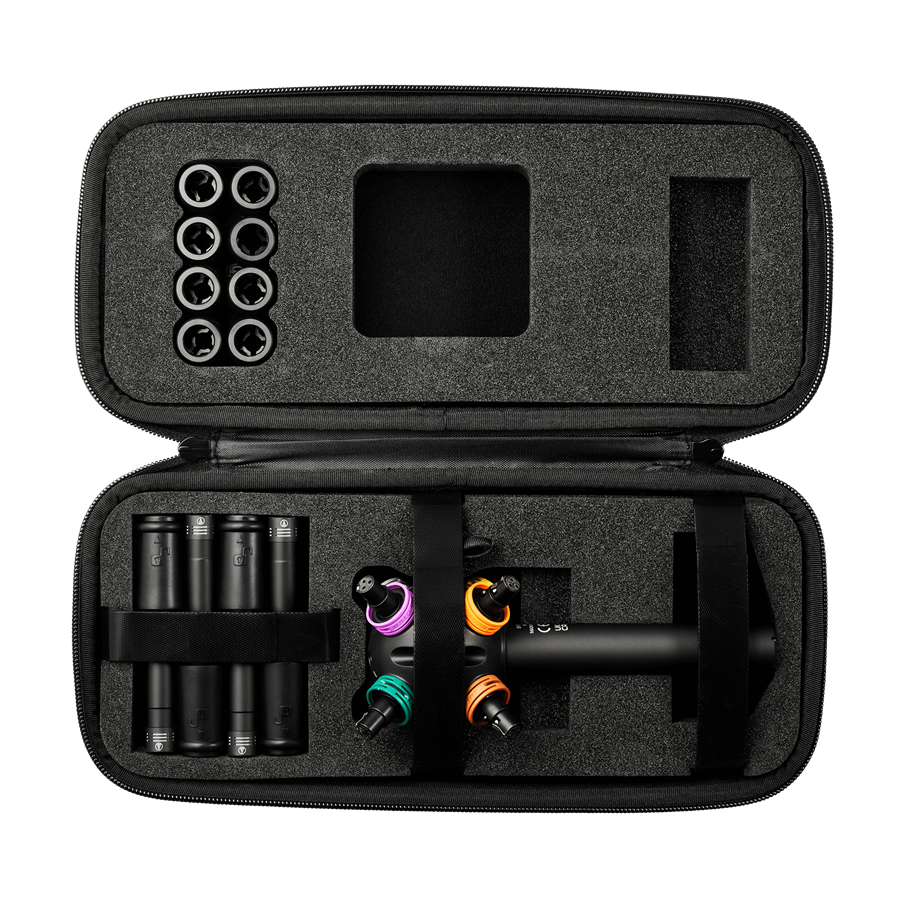

Audio comes out through a single 16-pin LEMO connector, and the standard BP3600 SKU includes a 5 m LEMO-to-XLRM breakout cable with color-coded ends so each capsule's channel is easy to trace on a console; BP3600/MIC is the same array sold without that cable for a production that already owns one or needs a different length. Both include an AT8476 stand clamp, a 5/8-inch to 3/8-inch adapter, eight AT8177 windscreens, and a Case Style R14 for transport.
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Hypercardioid (x8 capsules) |
| Frequency Response | 40-20,000 Hz |
| Impedance | 70 ohms |
| Phantom Power | 48V DC, 4 mA |
| Output Connector | 16-pin LEMO 2B series (female) |
| Dimensions | 6.3" x 6.3" x 8.6" (160.4 x 160.4 x 217.7 mm) |
| Included | AT8476 clamp, 5/8"-27 to 3/8"-16 adapter, 8x AT8177 windscreens, Case Style R14 |
