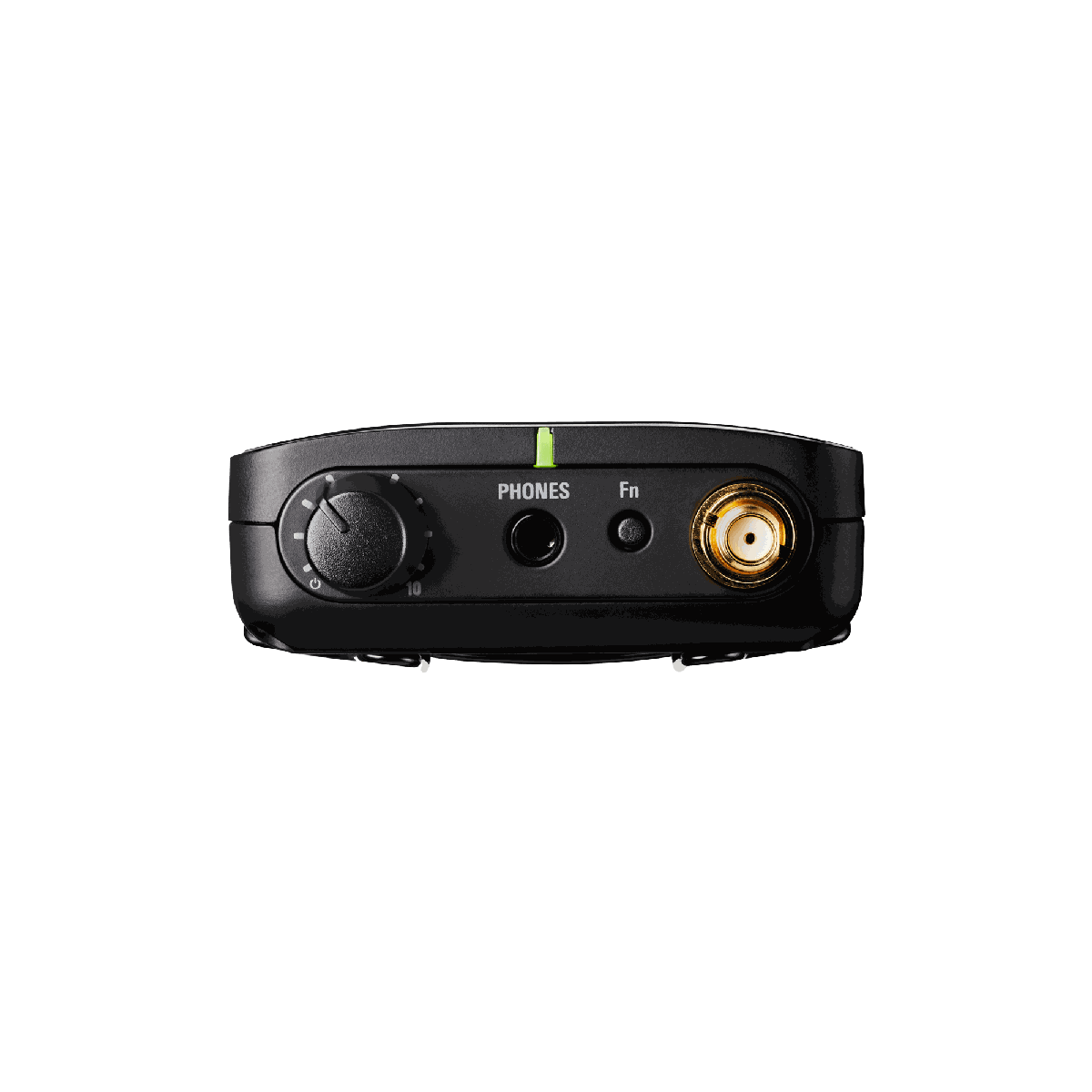

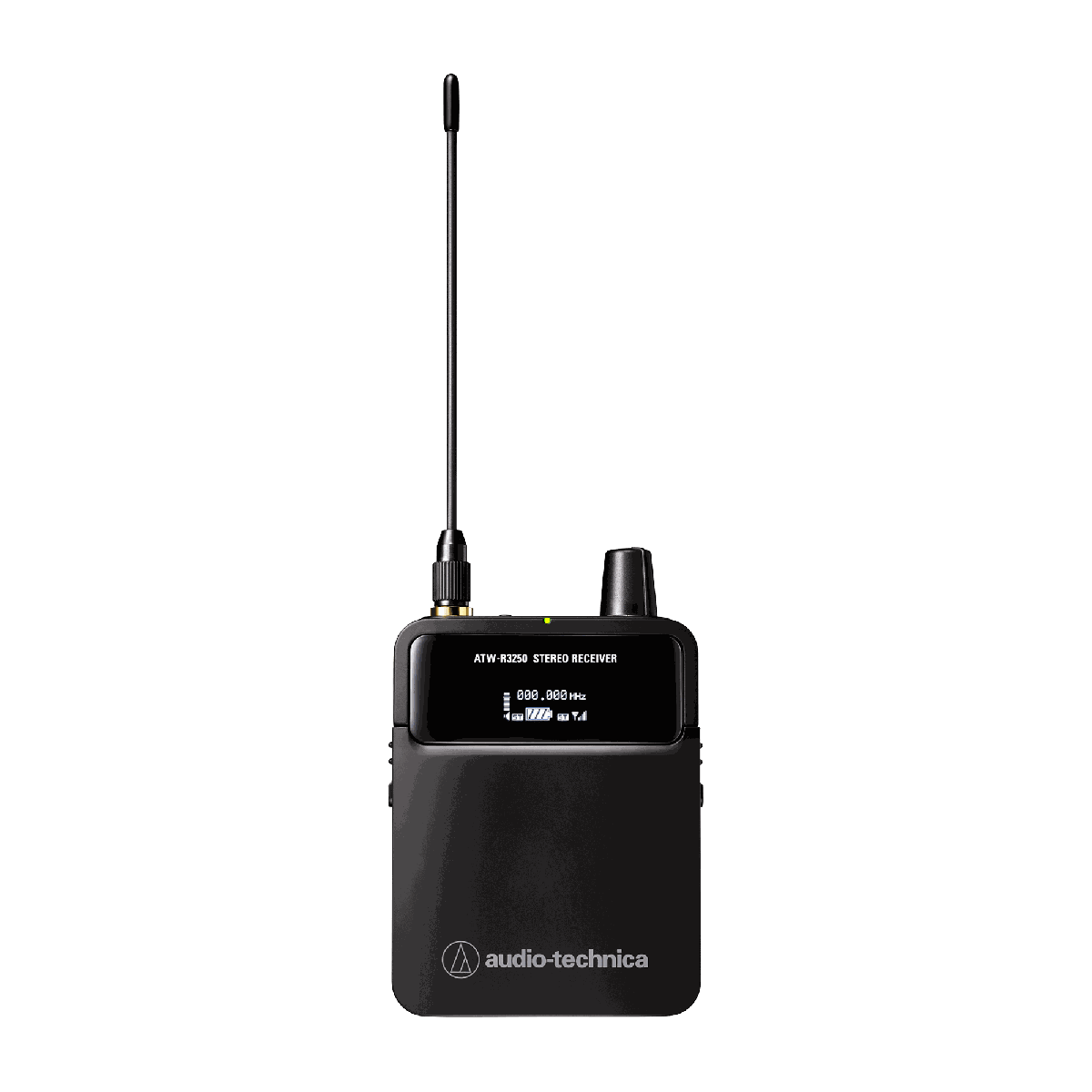

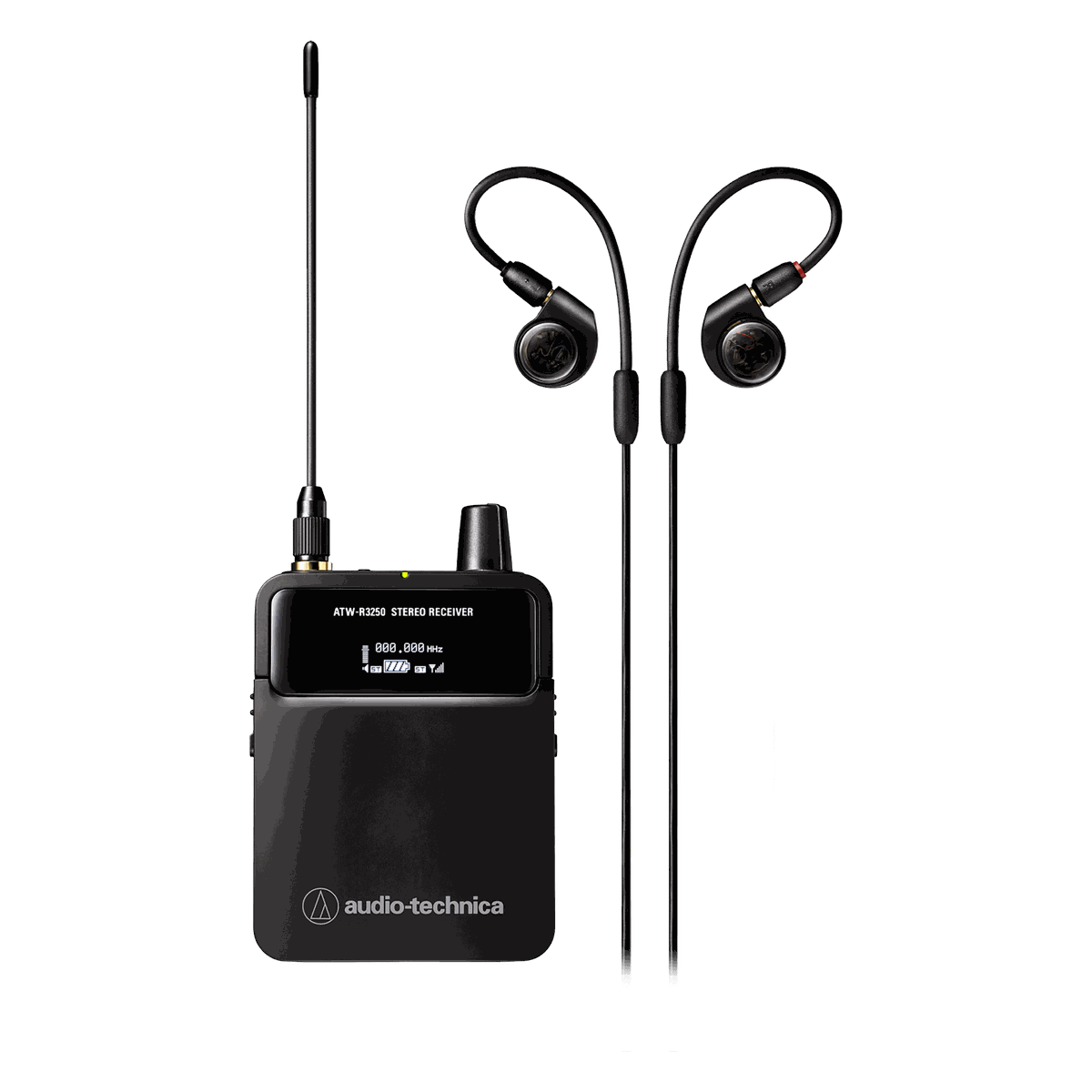

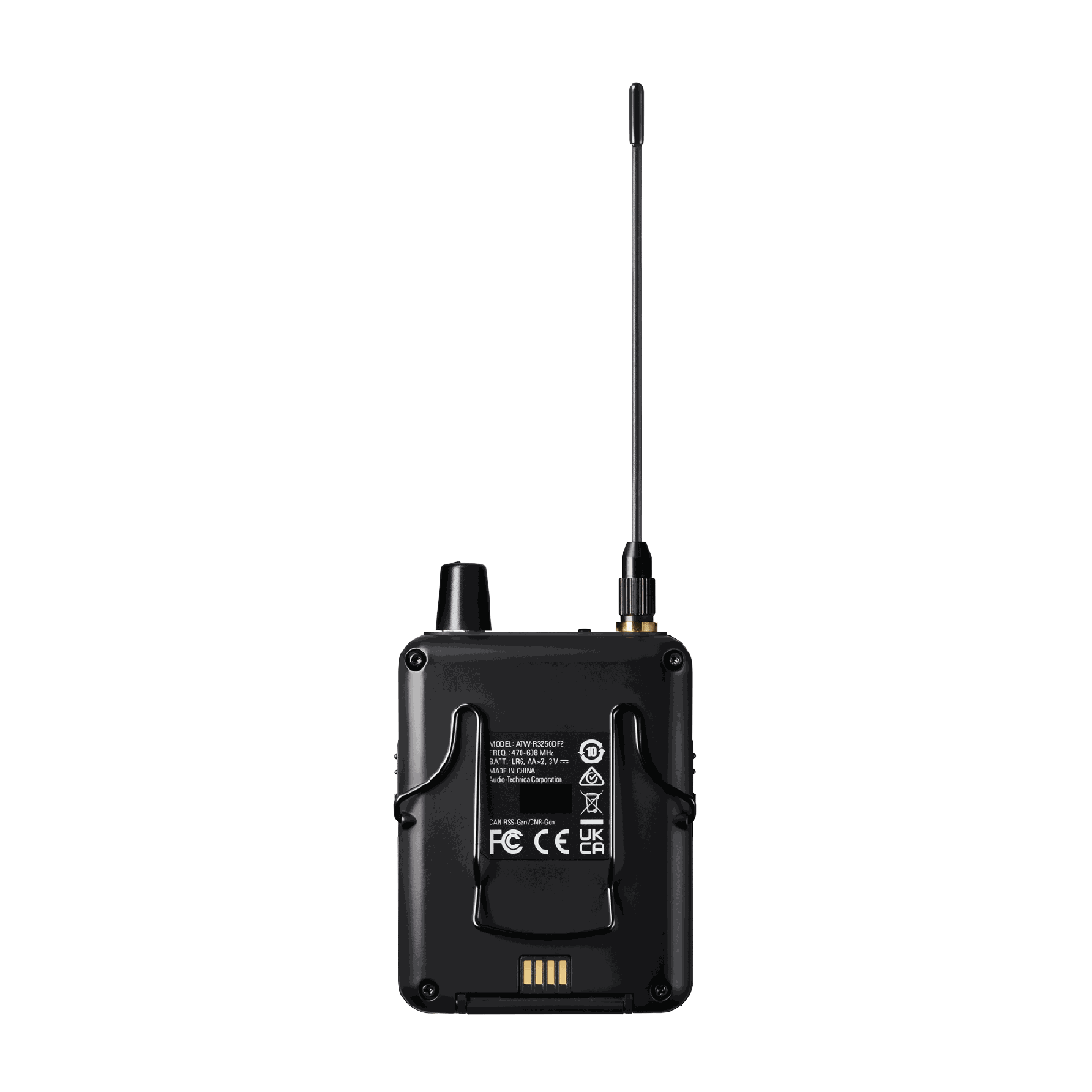

Audio-Technica ATW-R3250 IEM Bodypack Receiver

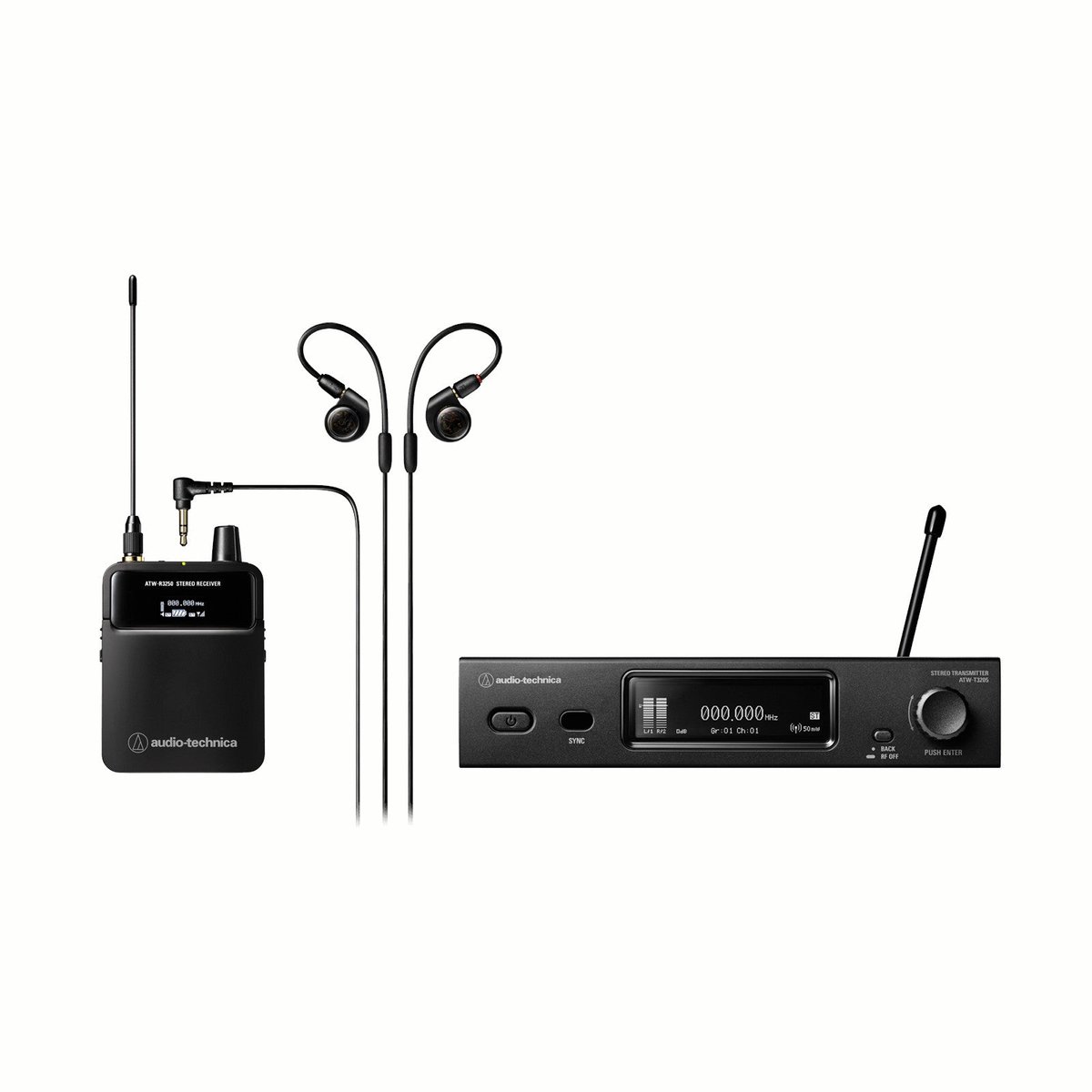

The ATW-R3250 is the bodypack receiver from the ATW-3255 in-ear monitor system, sold on its own so a production can add performers to an existing IEM rig without buying a whole second transmitter. It shares the DF2 band's exceptionally wide 470-608 MHz tuning range with the rest of the 3000 Series IEM line, and uses the earphone cable itself as a secondary antenna for diversity reception that stays solid as a performer moves around stage.

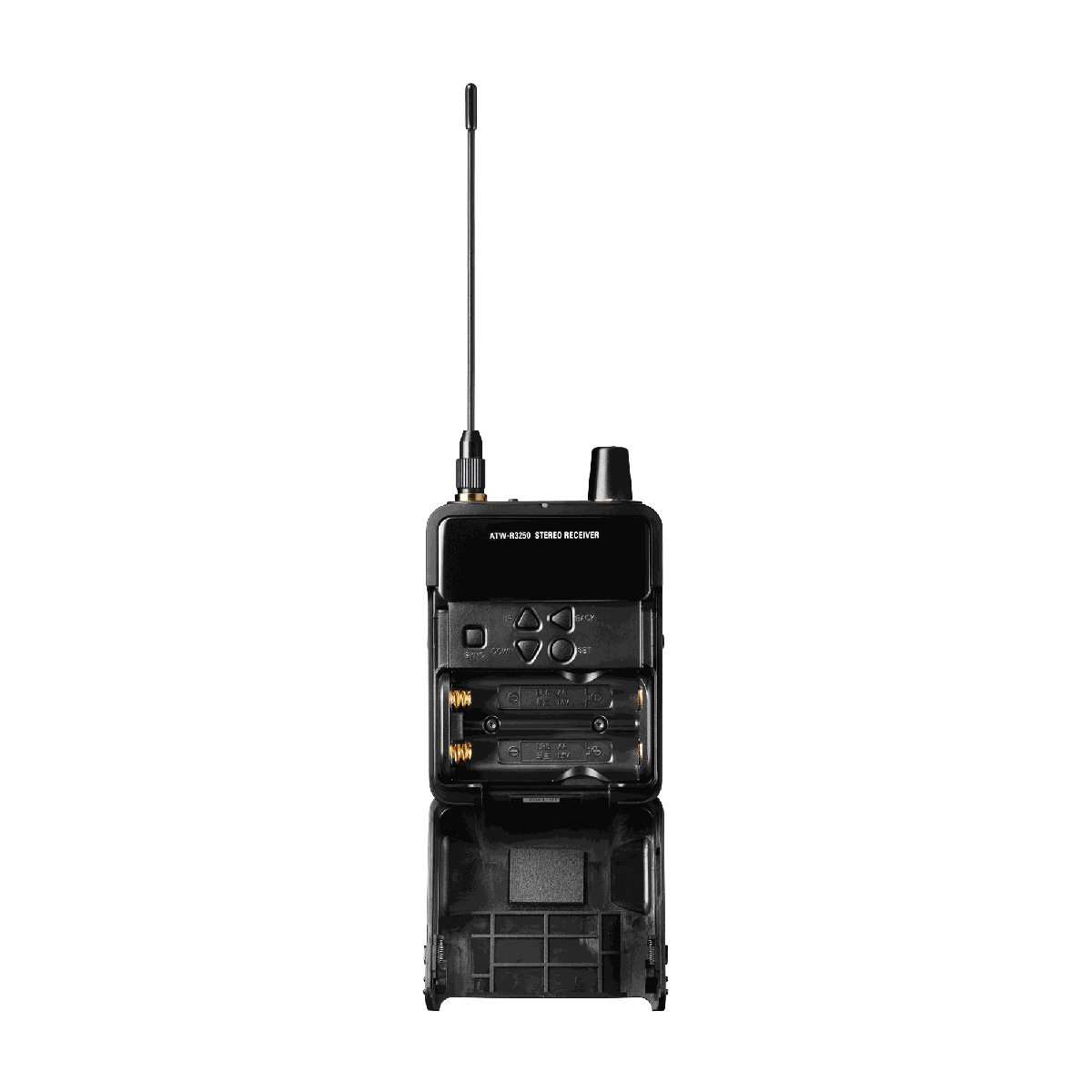

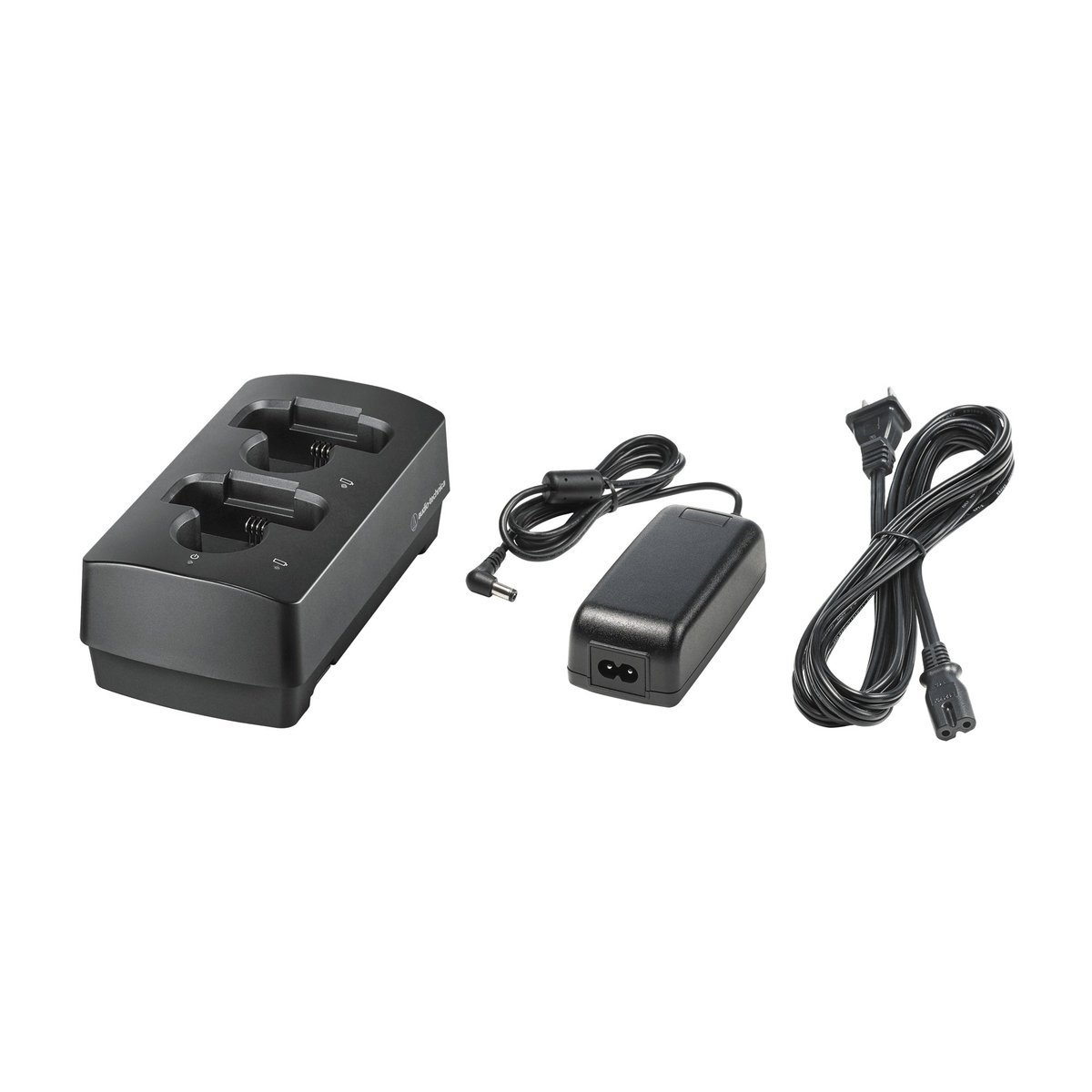

Each performer gets their own mix from the receiver's front-panel controls: stereo or mono operation, pan and personal mix, plus EQ, limiter, gain, and balance to dial in exactly how loud and how bright their monitor mix needs to be. It runs up to 7 hours on NiMH batteries (6 on alkaline) and recharges in the same ATW-CHG3 or ATW-CHG3N station used for 3000 Series bodypack transmitters.
| Type | 3000 Series IEM bodypack receiver |
|---|---|
| Frequency Band | DF2: 470-608 MHz (138 MHz tuning bandwidth) |
| Frequency Response | 40 Hz - 14,100 Hz |
| Stereo Separation | 75 dB |
| Battery Life | Up to 7 hours (NiMH), up to 6 hours (alkaline) |
| Audio Controls | EQ, limiter, gain, balance, stereo/mono, pan/personal mix |
| Headphone Output | 40 mW at 12 ohms |
| Diversity | Antenna diversity via earphone cable |
