Audio-Technica ATM350 UniMount Cardioid Condenser Instrument Microphone System

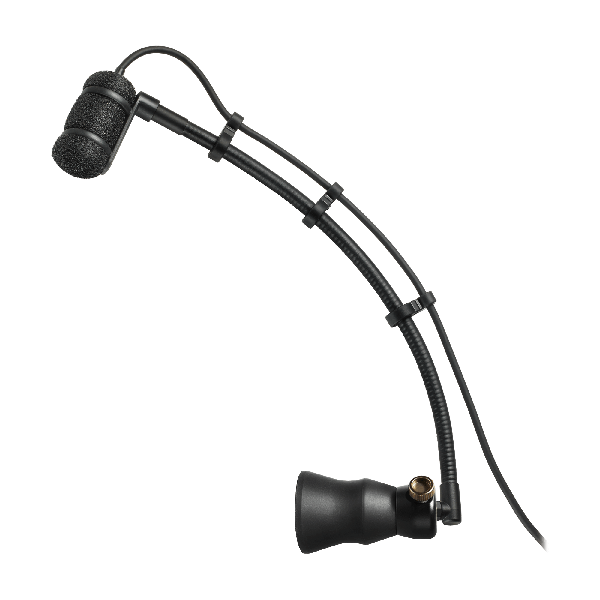

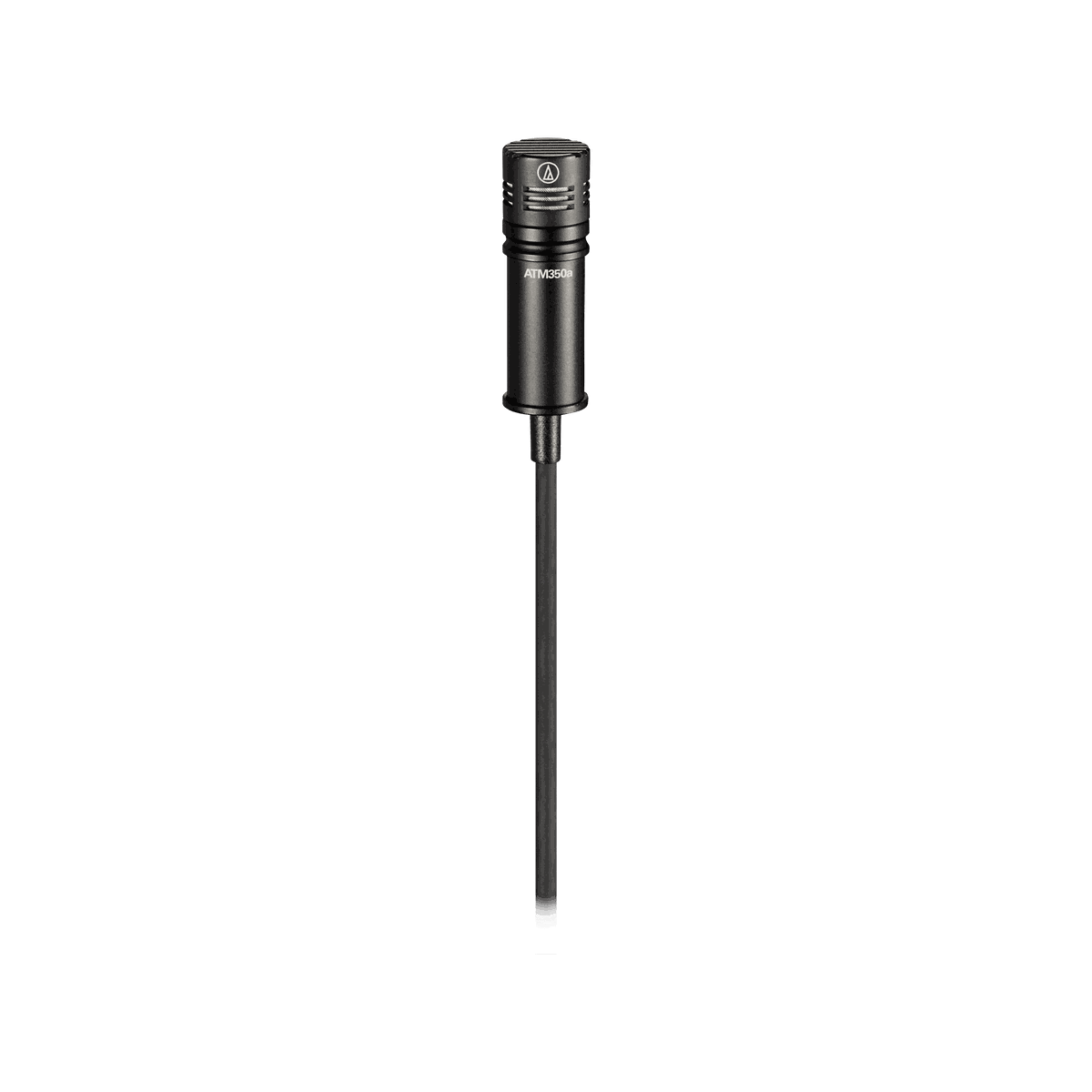

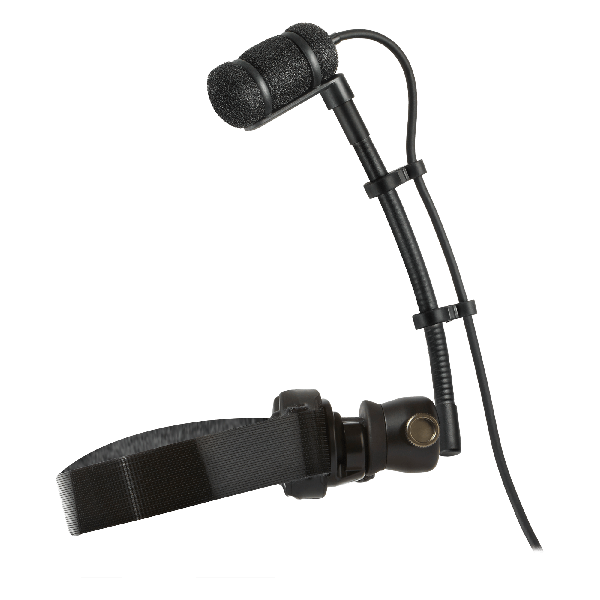

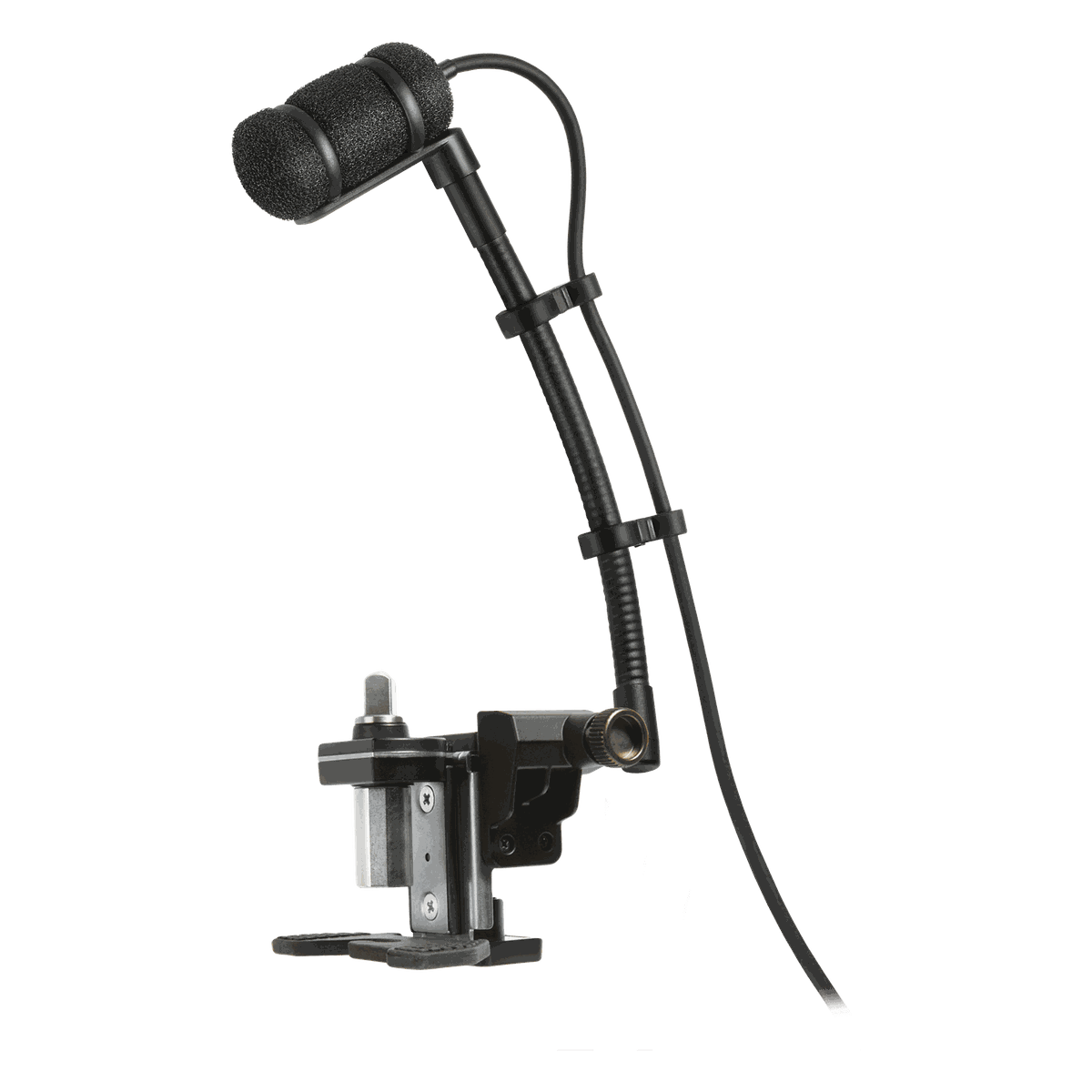

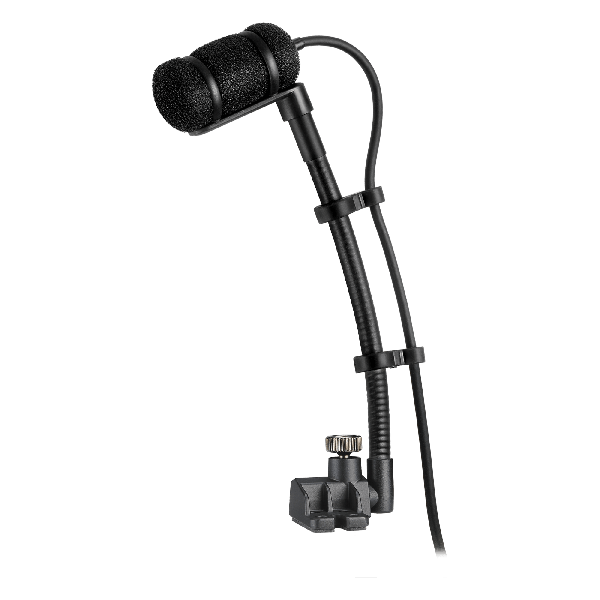

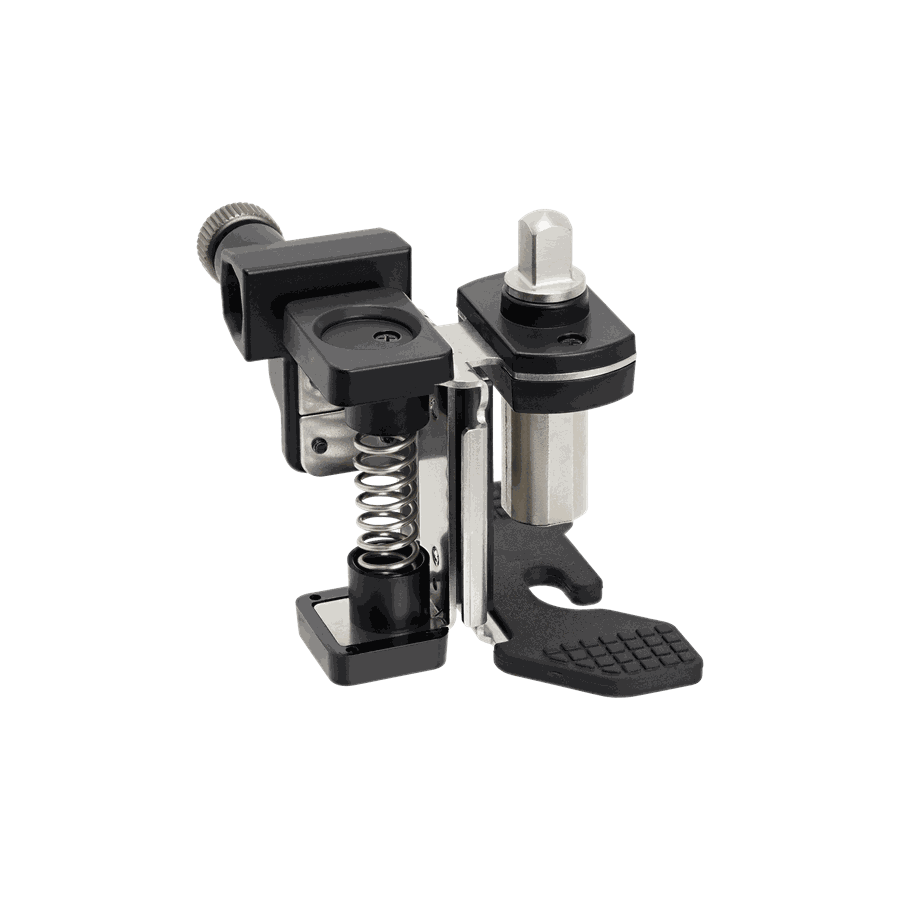

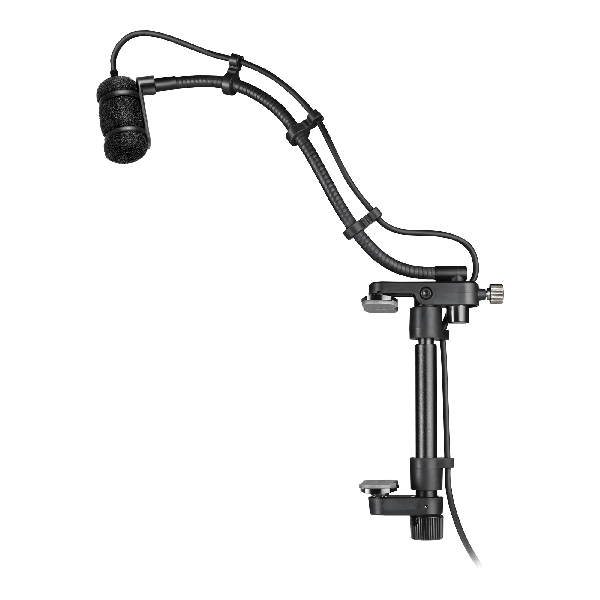

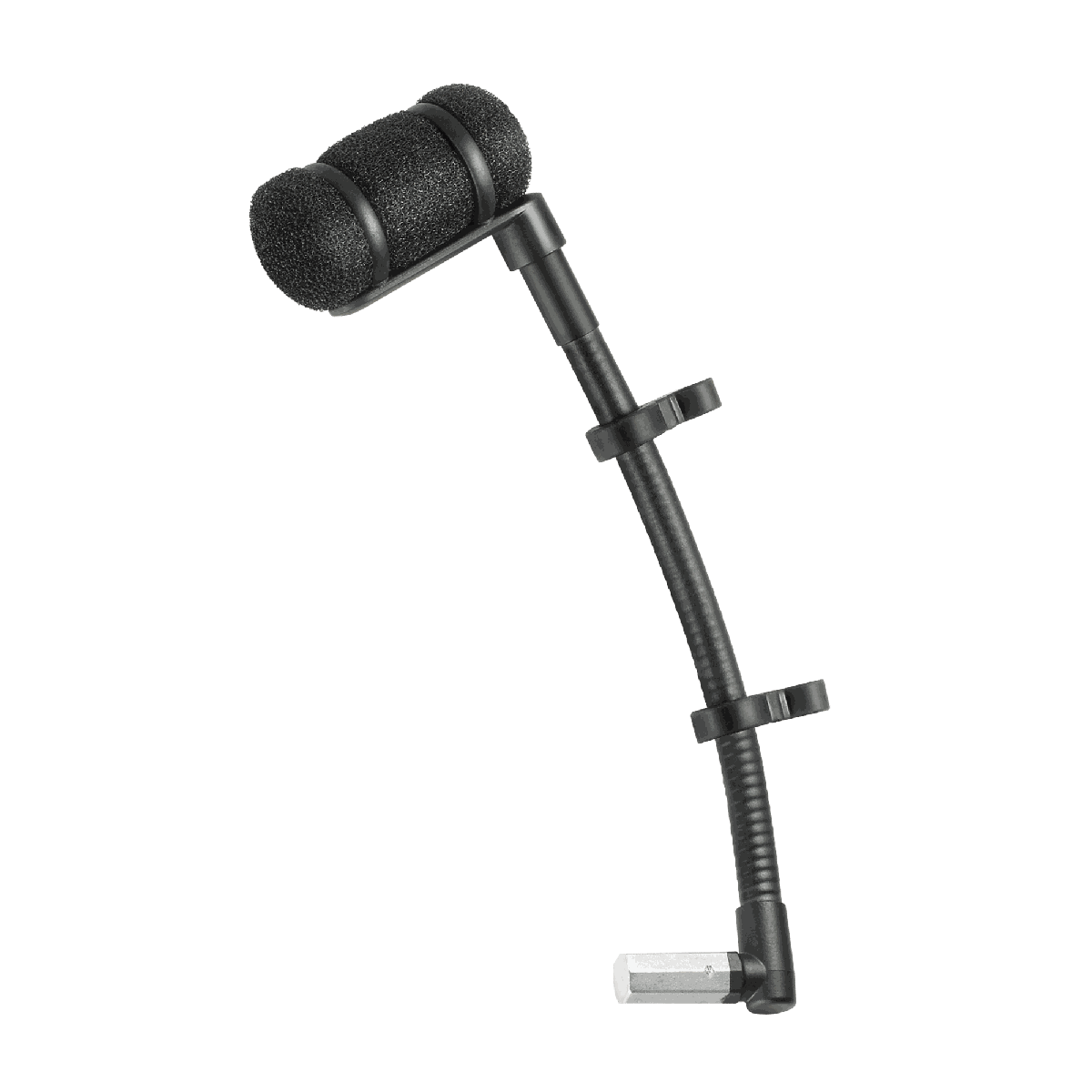

Every ATM350 UniMount system starts with the same ATM350a cardioid condenser capsule, a small, high-SPL mic that gives a clear, well-balanced response on close-miked instruments, then pairs it with mounting hardware built for one specific instrument. The drum version (ATM350D) uses a spring-loaded clamp that grips a drum lug without blocking tuning access; the guitar (ATM350GL) and piano (ATM350PL) versions use a 9-inch gooseneck for extra reach; the surface version (ATM350S) is built for accordions and other hard-to-mike instruments; and the woodwind version (ATM350W) straps securely to any woodwind body.

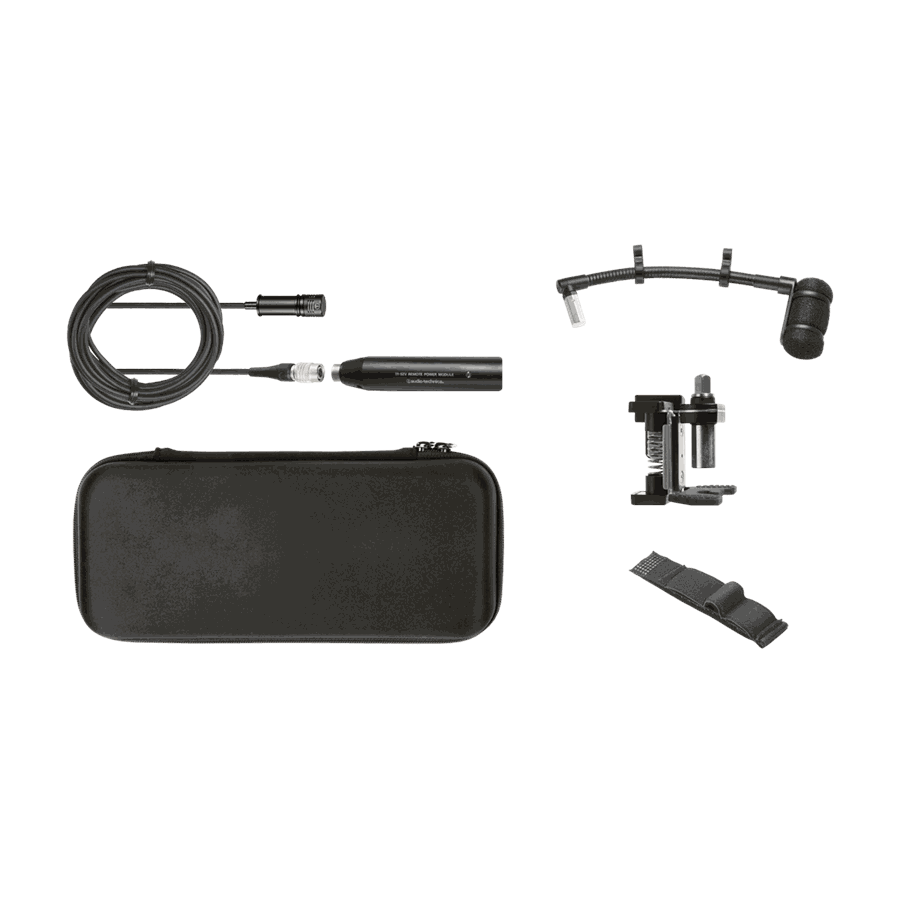

Every configuration runs through Audio-Technica's AT8543 in-line power module, which carries a switchable 80Hz high-pass filter to tame low-frequency noise, and every kit also includes an AT8468 violin mount with a hook-and-loop fastener as a second mounting option, plus a protective carrying case. The cardioid capsule itself is field-swappable for an optional UE-H hypercardioid or UE-O omnidirectional element if the room or instrument calls for a different pattern.
| Element | ATM350a fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Cardioid (UE-H hypercardioid, UE-O omni available separately) |
| Frequency Response | 40-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave (switchable, on power module) |
| Maximum Input Sound Level | 159 dB SPL, 1 kHz at 1% T.H.D. |
| Phantom Power Requirements | 11-52V DC, 3.5 mA typical |
| Cable | 4.0 m (13.1') to power module, HIROSE HR10-type connector |
| Included | AT8543 power module, instrument mount + gooseneck, AT8468 violin mount, carrying case |
