Analog Way ShotBox 2 Controller

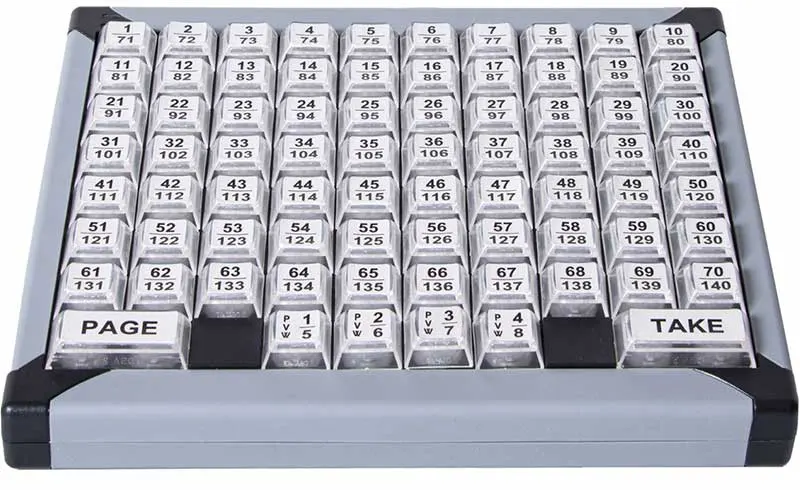

The Shot Box 2 (ref. SB80-2) is the cheaper way to get physical keys under an operator's hands on an Analog Way switcher. 76 function-labeled buttons recall up to 140 stored memories instantly, which is the difference between hitting a preset on cue and hunting for it in a menu while a speaker is already walking on. Each key backlights in blue and red, so the operator reads the panel by color in a dark control position.

On LivePremier, Alta 4K and Midra 4K systems it plugs directly into the unit's USB port (one USB controller at a time), or it runs remotely from a Windows or macOS computer sitting on the same network as the switcher, using the included AW Shotbox Control software. It is a preset-recall surface rather than a full console: there is no T-Bar, so manual transitions still belong to the Control Box 3 or the switcher's own front panel.
