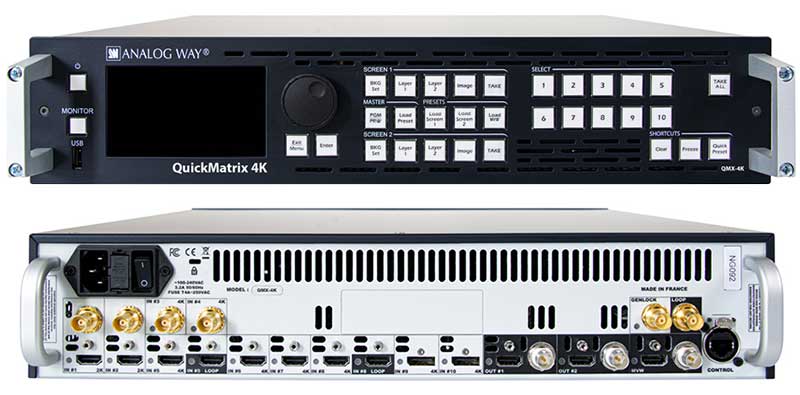

Analog Way QuickMatrix 4K Presentation Switcher

The QuickMatrix 4K is the Midra 4K unit built for two rooms at once. It takes the family's ten seamless inputs, eight of them 4K60 across four HDMI 2.0, two 12G-SDI and two DisplayPort 1.2 connectors plus two 1080p inputs on selectable HDMI or 3G-SDI, and drives two fully independent 4K60 program outputs, each with mirrored HDMI and SDI plugs. Each program gets its own still image background, one mixing 4K layer (or two split layers) and a foreground 4K image layer, so a main hall and an overflow room can run different content from one 2RU box.

Image processing is 10-bit 4:4:4 with 16 ms of latency at 60 Hz, HDR10 and HLG are supported with built-in SDR/HDR converters, and HDCP 1.4 and 2.2 pass through. A dedicated multiviewer with resizable widgets, clocks, countdowns and timers runs up to 2560x1600 so the operator watches both programs and every source on one screen. Any input or output can be pushed out over RTMP, audio embeds and de-embeds on every connector, and the Dante option card adds 32x32 networked audio. Front panel, on-board HTML5 Web RCS, TCP/IP and SNMP all control it.
