Analog Way Control Box 3

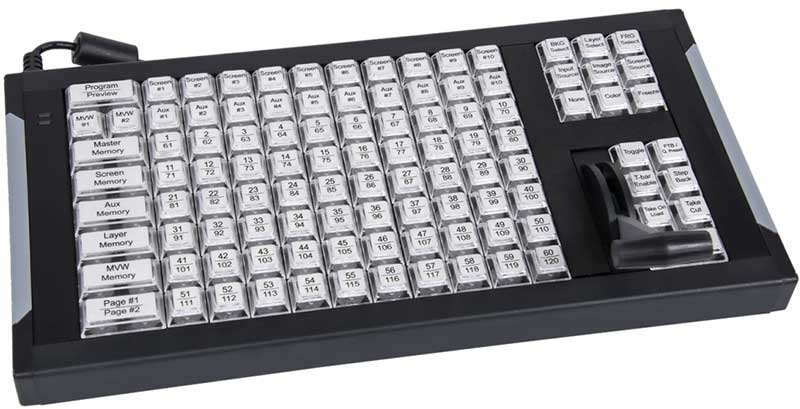

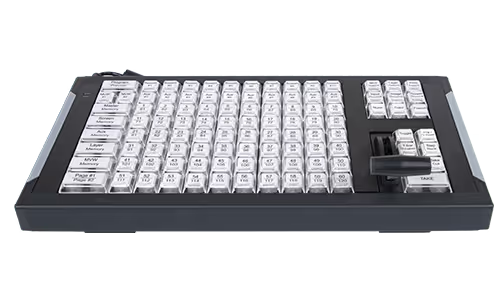

The Control Box 3 (ref. SB124T-3) is the full-size hardware surface for driving an Analog Way switcher live. 105 function-labeled keys put screens, sources and memories one press away instead of buried in a menu, and a T-Bar handles manual transitions when an operator wants to ride a dissolve by hand rather than let the switcher time it. Every key backlights in blue and red so the panel reads at a glance in a dark control position, and the whole surface is built into a heavy-duty extruded aluminum case.
It connects straight to the switcher's front-panel USB port, or it can run remotely from a Windows or macOS computer that is on the same network as the unit, using the AW Shotbox Control software that is included. It is designed for the LivePremier, Alta 4K and Midra 4K series (LivePremier needs firmware 2.2 or above, Midra 4K firmware 1.3 or above). The Control Box 3 ships with a robust carrying case and a quick start guide.
| Reference | SB124T-3 |
|---|---|
| Keys | 105 function-labeled key buttons |
| Backlighting | Blue and red backlighting on each key |
| Transition Control | T-Bar for manual smooth transitions |
| Chassis | Heavy-duty extruded aluminum case |
| Connection | Direct USB to the switcher front panel, or remote via a computer with USB and LAN |
| Control Software | AW Shotbox Control for Windows and macOS (included) |
| Compatibility | LivePremier series (firmware 2.2 or above), Alta 4K and Midra 4K series (firmware 1.3 or above) |
| Included | Control Box 3, carrying case, quick start guide |
