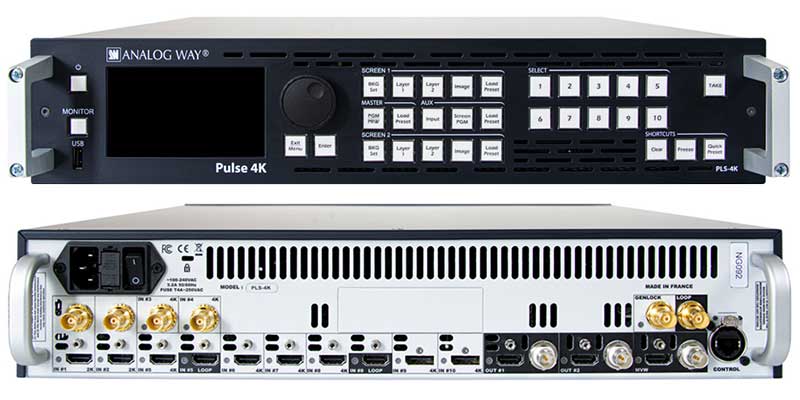

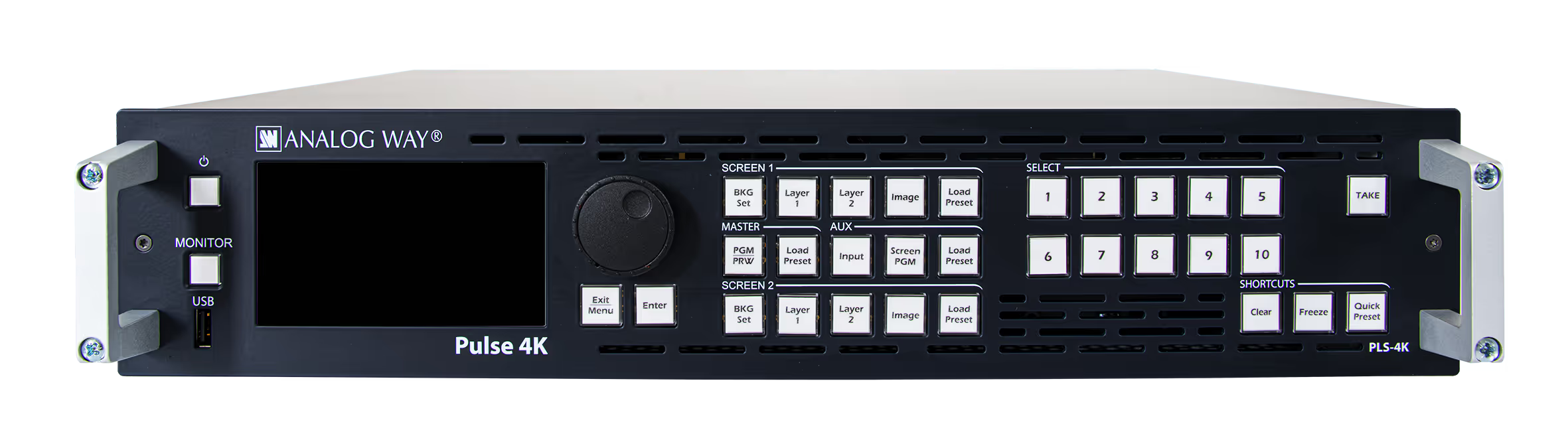

Analog Way PLS-4K Presentation Switcher

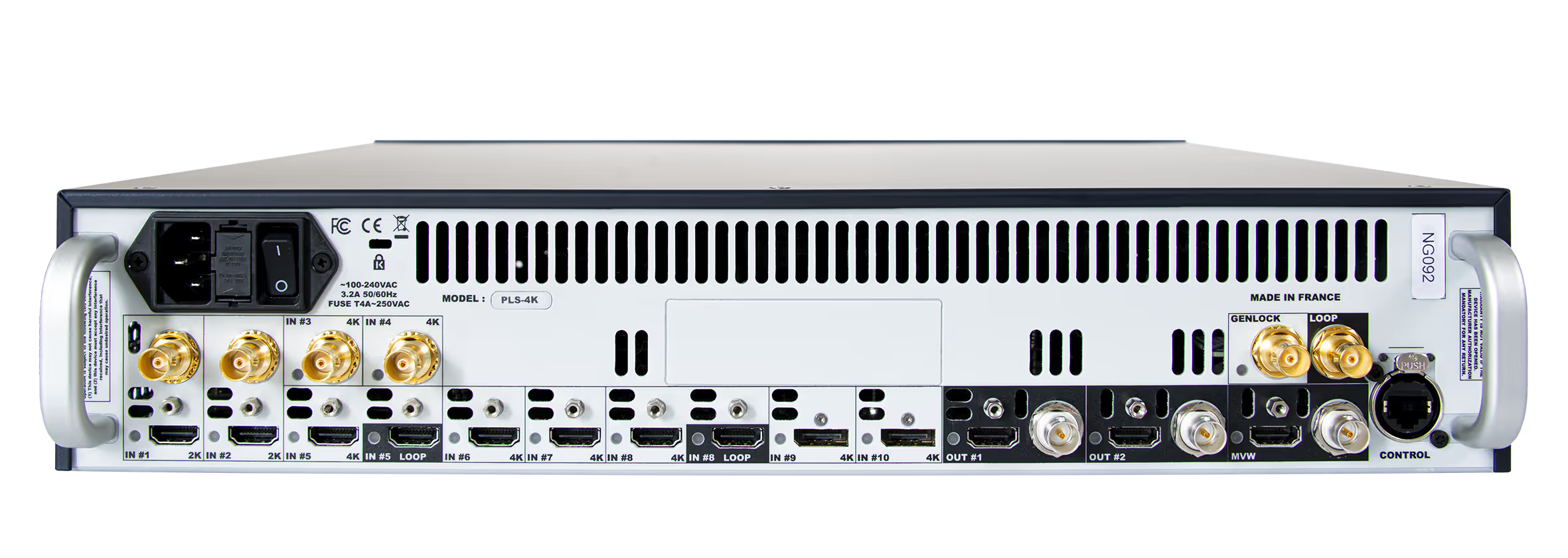

The Pulse 4K sits in the middle of the Midra 4K family: the same ten inputs and two 4K60 program outputs as the Eikos 4K, without the edge-blending mode, and the same clean cuts between any input. Eight of the inputs are 4K60 (four HDMI 2.0, two 12G-SDI, two DisplayPort 1.2) and two are 1080p on selectable HDMI or 3G-SDI connectors. The two outputs carry mirrored 12G-SDI and HDMI 2.0 plugs and configure either as two independent programs or as one program plus an AUX feed.
Video is handled at 10-bit 4:4:4 with 16 ms of latency at 60 Hz, with HDR10 and HLG support and built-in SDR/HDR converters. The mixer mode gives you a still image background, two mixing 4K layers (or four split layers) and a foreground 4K image layer, and a dedicated multiviewer with resizable clock, countdown and timer widgets runs up to 2560x1600. Any input or output can be streamed over RTMP, audio embeds and de-embeds on every connector with AES67 support, and the Dante option card adds 32x32 networked channels. It is a 2RU chassis, 16.76 lb, 80 W.
- Outputs2x 4K60 PGM with mirrored 12G-SDI and HDMI 2.0
- Processing4K60 10-bit 4:4:4, ultra low latency (16 ms at 60 Hz)
- Multiviewer1 dedicated multiviewer, resizable widgets with clocks
- AudioEmbed/de-embed on all inputs and outputs, AES67
- HDCPHDCP 1.4 and HDCP 2.2 compliant
| Inputs | 10 seamless: 8x 4K60 (4x 2.0, 2x , 2x DisplayPort 1.2) and 2x 1080p60 (selectable HDMI/3G-) |
|---|---|
| Outputs | 2x 4K60 PGM with mirrored 12G-SDI and HDMI 2.0; Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX) |
| Layers (Mixer Mode) | 1 still image background + 2 mixing 4K layers (or 4 split layers) + 1 foreground 4K image layer |
| Processing | 4K60 4:4:4, ultra low latency (16 ms at 60 Hz); HDR10 and HLG with SDR/HDR converters |
| Multiviewer | 1 dedicated multiviewer, resizable widgets with clocks, countdown and timers, up to 2560x1600@60 |
| Streaming | RTMP livestreaming of any input or output |
| Audio | Embed/de-embed on all inputs and outputs, AES67; optional Dante 32x32 networking card |
| HDCP | HDCP 1.4 and HDCP 2.2 compliant |
| Chassis | 2RU, 17.32 x 3.46 x 17.08 in, 16.76 lb; 80 W, 100-240V AC |
