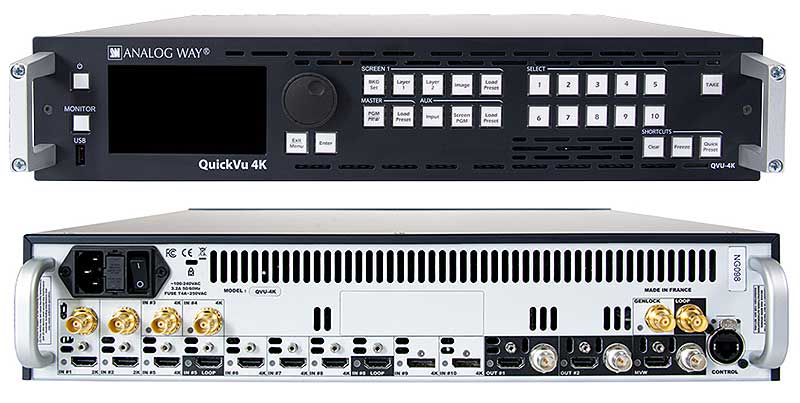

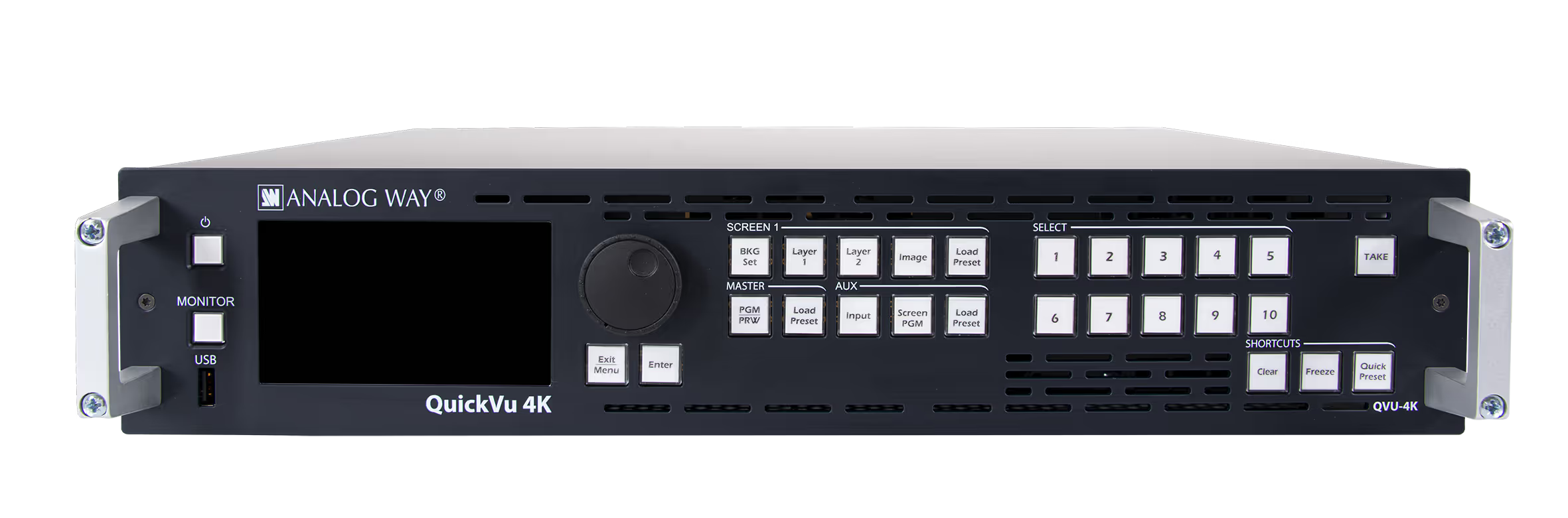

Analog Way QuickVu 4K Presentation Switcher

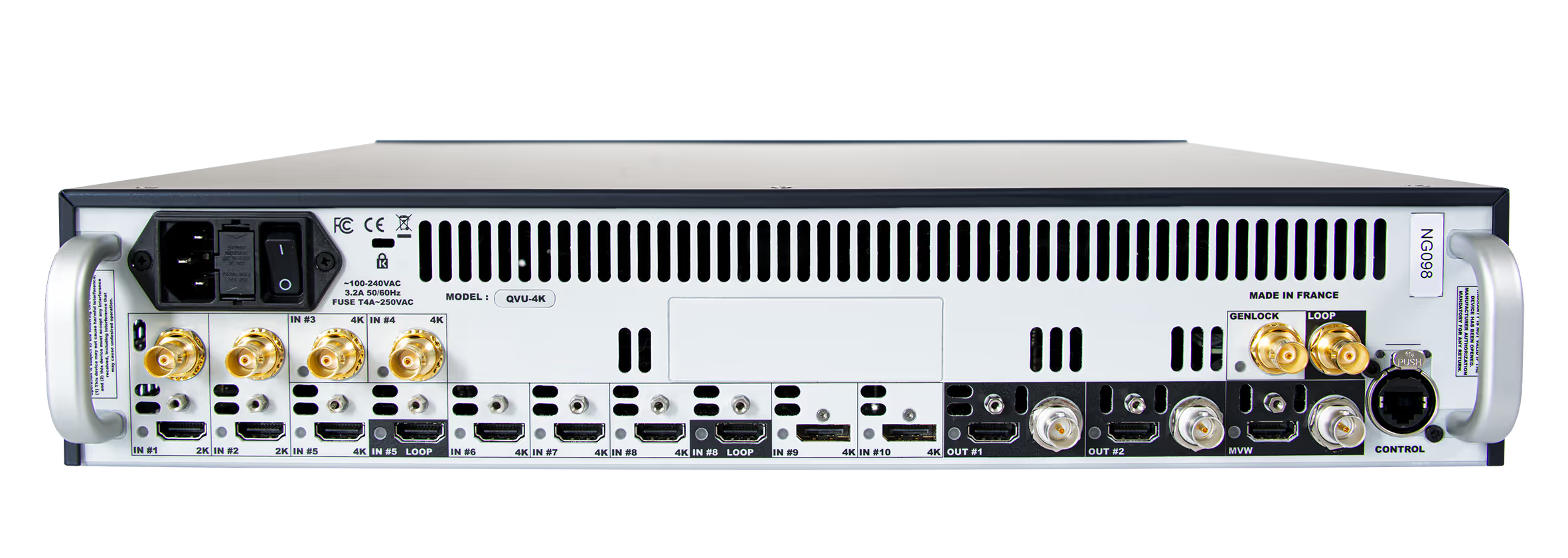

The QuickVu 4K is the entry point into Analog Way's Midra 4K series and the one to reach for when a single screen has to be fed cleanly. It carries the same ten seamless inputs as the rest of the family, eight of them 4K60 on four HDMI 2.0, two 12G-SDI and two DisplayPort 1.2 connectors, plus two 1080p inputs on selectable HDMI or 3G-SDI. Output is one 4K60 program and one 1080p AUX, both with mirrored SDI and HDMI plugs, so the main screen and a confidence or record feed leave the box on separate paths.
The program builds from a still image background, one mixing 4K layer (or two split layers) and a foreground 4K image layer, processed at 10-bit 4:4:4 with 16 ms of latency at 60 Hz. HDR10 and HLG are supported with built-in SDR/HDR converters, and HDCP 1.4 and 2.2 pass through. The dedicated multiviewer puts program, preview and every input on one 2560x1600 screen with resizable clock, countdown and timer widgets. Any input or output can be streamed over RTMP, audio embeds and de-embeds on all connectors, and the Dante option card adds 32x32 channels of networked audio. It is a 2RU chassis drawing 80 W.
| Inputs | 10 seamless: 8x 4K60 (4x HDMI 2.0, 2x 12G-SDI, 2x DisplayPort 1.2) and 2x 1080p60 (selectable HDMI/3G-SDI) |
|---|---|
| Outputs | 1x 4K60 PGM + 1x 1080p60 AUX, both with mirrored SDI and HDMI |
| Layers (PGM) | 1 still image background + 1 mixing 4K layer (or 2 split layers) + 1 foreground 4K image layer |
| Processing | 4K60 10-bit 4:4:4, ultra low latency (16 ms at 60 Hz); HDR10 and HLG with SDR/HDR converters |
| Multiviewer | 1 dedicated multiviewer, resizable widgets with clocks, countdown and timers, up to 2560x1600@60 |
| Streaming | RTMP livestreaming of any input or output |
| Audio | Embed/de-embed on all inputs and outputs, AES67; optional Dante 32x32 networking card |
| HDCP | HDCP 1.4 and HDCP 2.2 compliant |
| Chassis | 2RU, 17.32 x 3.46 x 17.08 in, 16.76 lb; 80 W, 100-240V AC |
