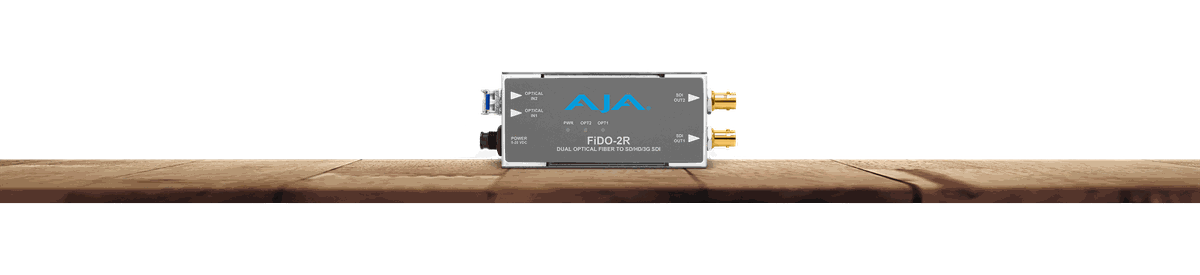

AJA FIDO 2R Two-channel Single-mode LC Fiber Receiver

The FiDO-2R receives two single-mode LC fiber signals and converts each one back to a 3G/HD/SD-SDI output on BNC. The two paths are completely independent, so a pair of unrelated camera or program feeds can share the same duplex fiber run and come out cleanly separated at the receive end. Because the transport is optical, signals travel up to 10 kilometers with full electrical isolation, which also breaks the ground loops that plague long copper runs.

Each output supports SD, HD, and 3G rates up to 1080p. The unit draws only 2.5 watts and runs on 5 to 20V DC from the included DWP-U-R1 worldwide power supply, and it is backed by a five-year warranty.
