Aida Imaging HD-NDI3-120 NDI|HX3 POV Camera
The HD-NDI3-120 steps up to NDI|HX3, Aida's higher-bandwidth-efficiency NDI implementation, and pairs it with a sensor capable of up to 120fps at 1080p over NDI|HX/HDMI (60fps in HX3 mode). That frame rate headroom is useful for slow-motion replay in sports and live event coverage, where a standard 60fps camera can't deliver the same smoothness. A 5-megapixel-rated 4mm CS-mount lens gives an 86-degree field of view.

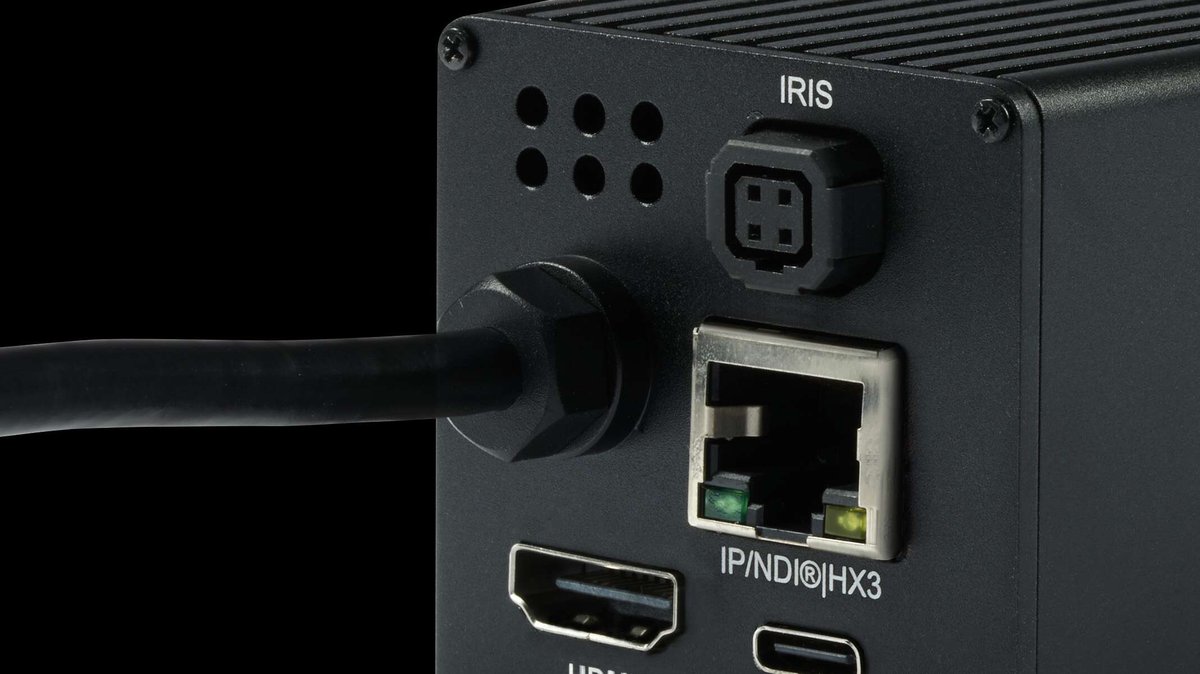

The camera outputs HDMI alongside NDI|HX3, SRT, RTMP, and RTSP simultaneously, with a 10-bit 4:2:2 color pipeline for clean grading. A 3.5mm line input embeds audio into both the HDMI and IP feeds, and it runs on 12VDC or 802.3at PoE+, so a single Ethernet cable can carry power and every output. At 85 x 49 x 49mm, it's compact enough for a POV rig while delivering broadcast-grade frame rates.
| Sensor | 1/3-inch progressive CMOS, 1920x1080 |
|---|---|
| Lens | 5MP-rated 4mm CS mount, 86-degree FOV |
| Outputs | HDMI, NDI|HX3, SRT, RTMP, RTSP |
| Frame Rate | Up to 120fps at 1080p (NDI|HX/HDMI), 60fps in HX3 |
| Color | 4:2:2 (YCbCr) 10-bit |
| Dimensions | 85 x 49 x 49mm (350g) |
| Power | 12VDC or PoE+ (802.3at) |
| Audio | 3.5mm line input, embedded over HDMI/IP |
