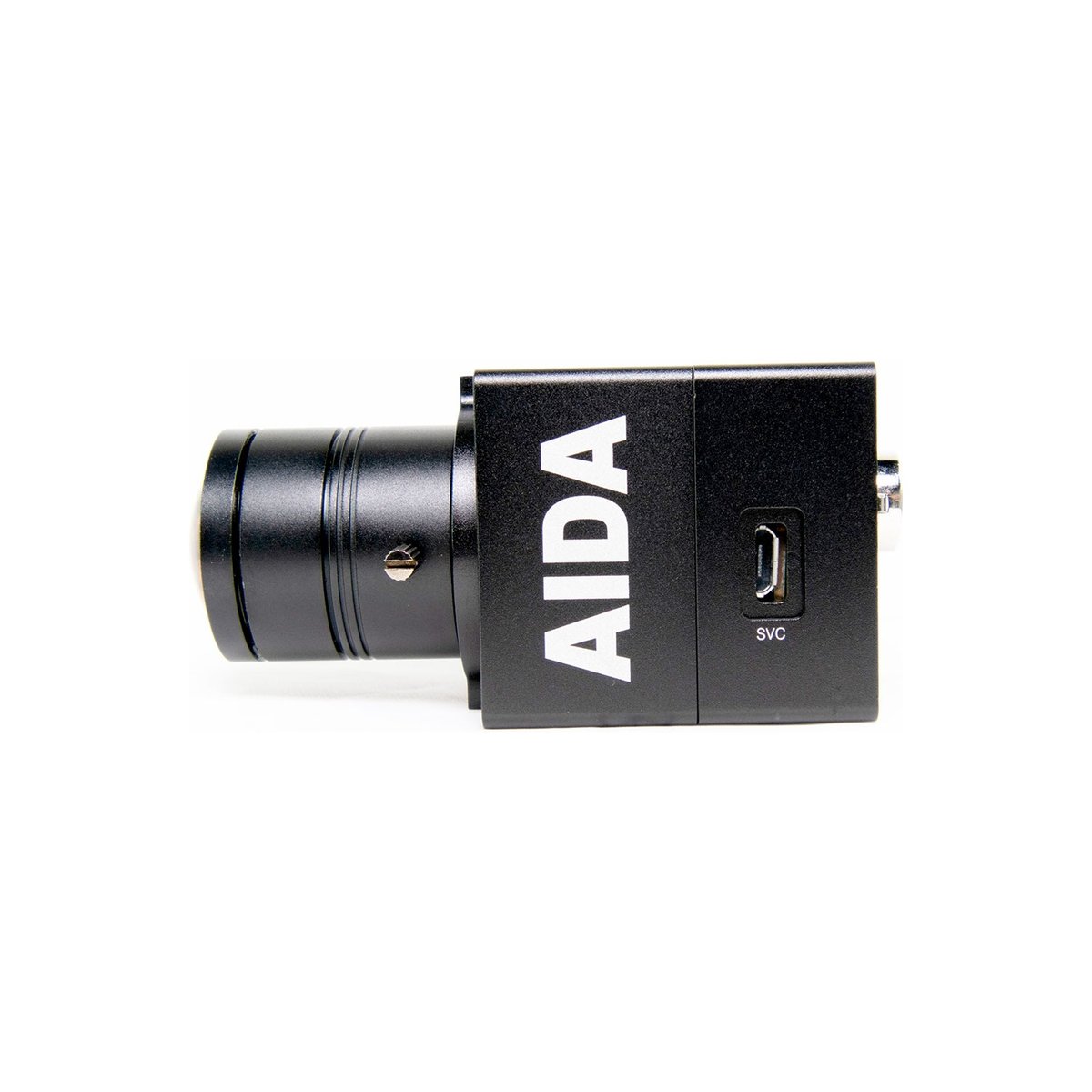

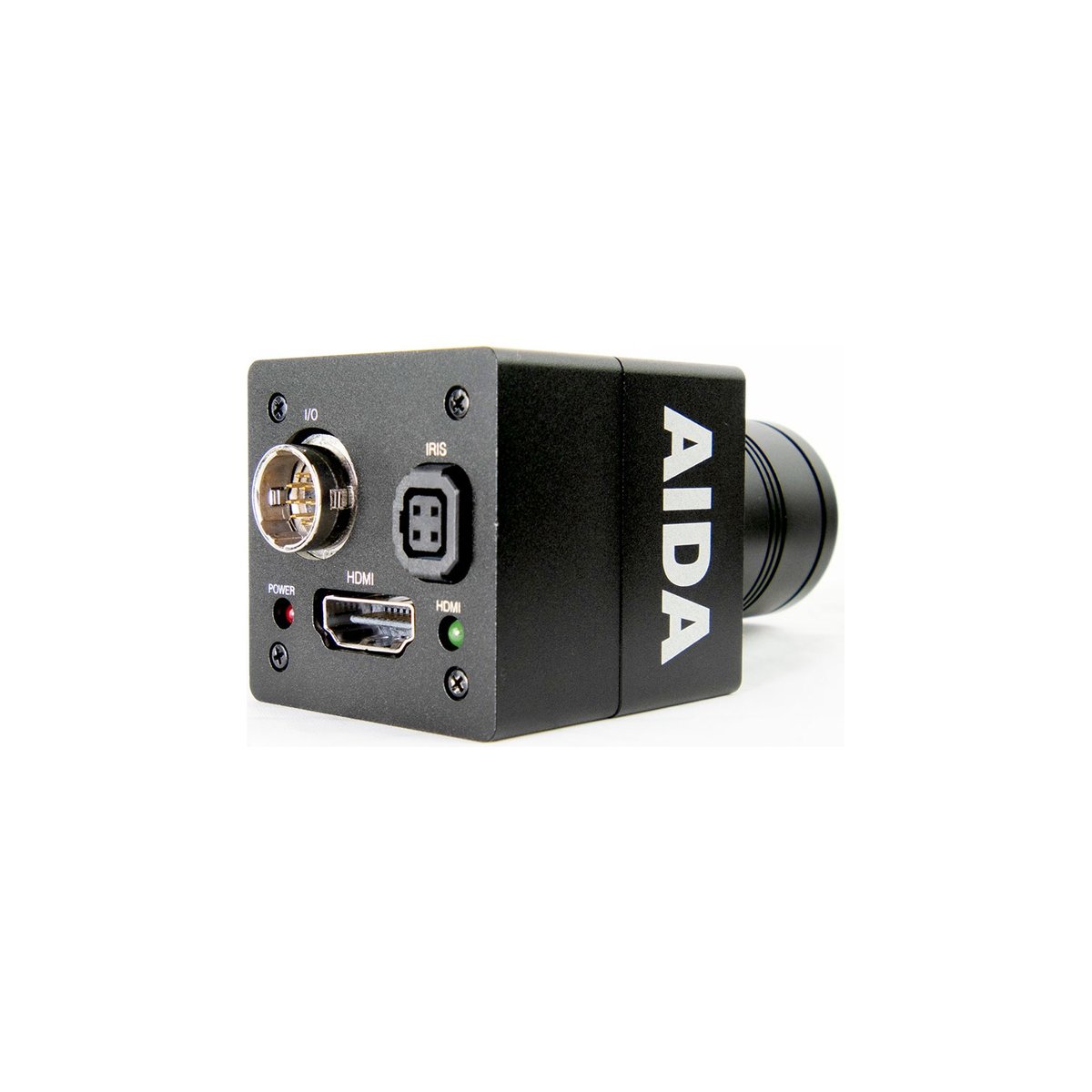

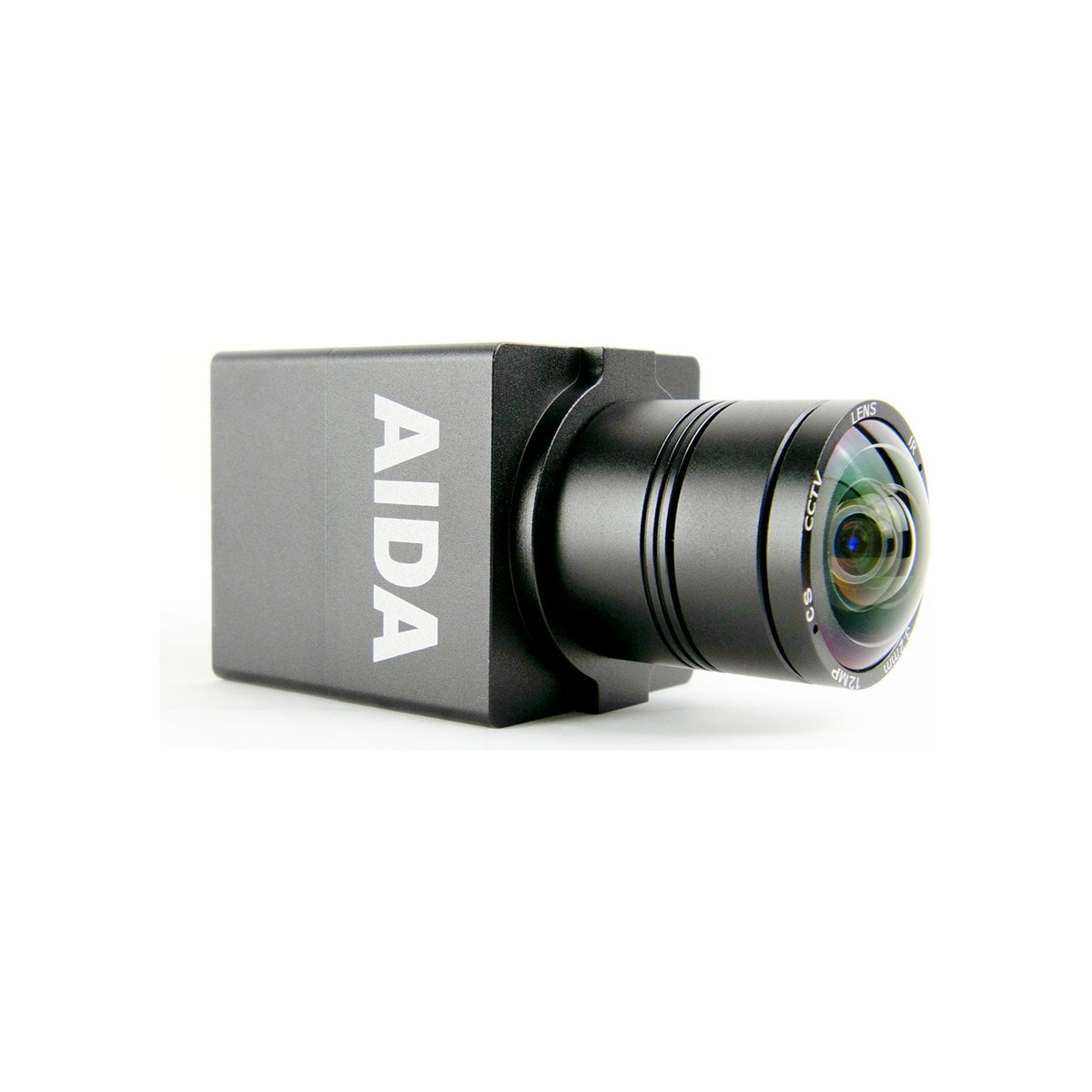

Aida Imaging UHD-100A 4K UHD POV Camera
The AIDA UHD-100A packs a 1/2.5-inch progressive CMOS sensor into a body just 1.53 by 1.53 by 1.99 inches, shooting 4K UHD (3840x2160) at up to 30p and stepping down to 1080p at up to 60p or 720p at up to 60p over HDMI 1.4. The default lens is a 3.2mm C/CS-mount optic, and the camera outputs 4:2:2 10-bit color with white balance, exposure, WDR, and noise reduction all handled automatically or manually from the same small footprint.
A 3.5mm TRS stereo input embeds mic or line-level audio directly onto the HDMI signal, so no separate audio capture is needed for web conferencing, worship, or lecture-capture setups. At 140 grams it mounts almost anywhere -- gooseneck, ceiling bracket, or podium arm -- and RS-485 control covers integration with existing camera control systems.
| Sensor | 1/2.5-inch progressive CMOS, 4K UHD |
|---|---|
| Resolution | 3840x2160 up to 30p; 1080p up to 60p; 720p up to 60p |

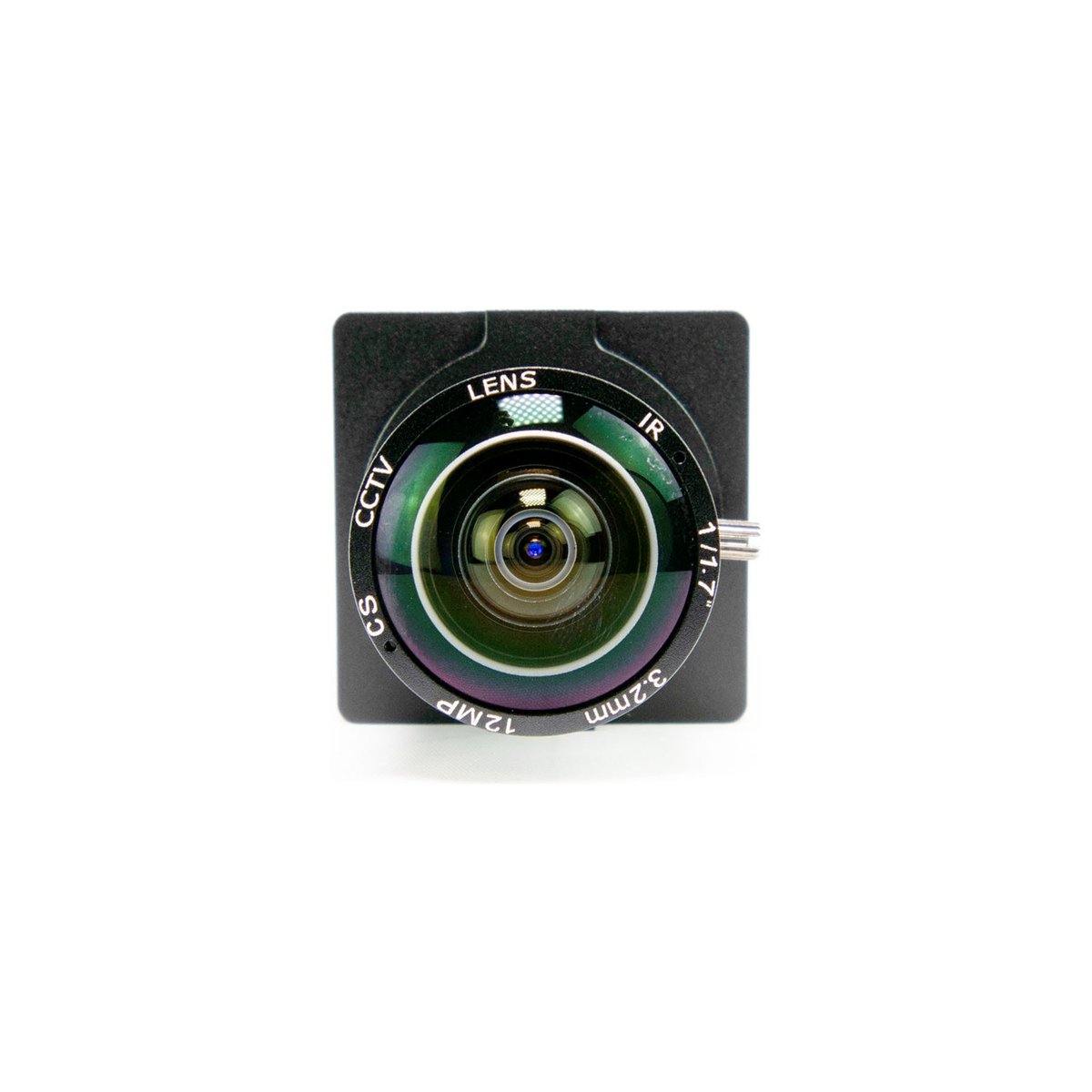

| Lens | C/CS mount, 3.2mm default |
| Video Output | HDMI 1.4, 4:2:2 10-bit |
| Audio Input | 3.5mm TRS stereo, 16/24/32-bit |
| Dimensions / Weight | 39 x 39 x 50.5mm, 140g |
| Power | 12VDC (9-15VDC) |
| Control | RS-485 |
