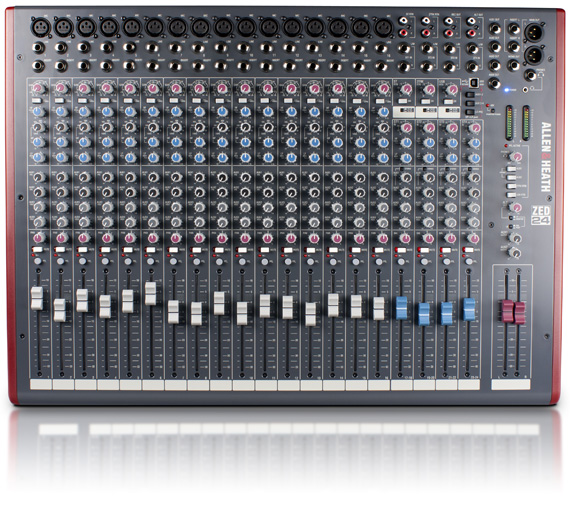

Allen & Heath ZED-24

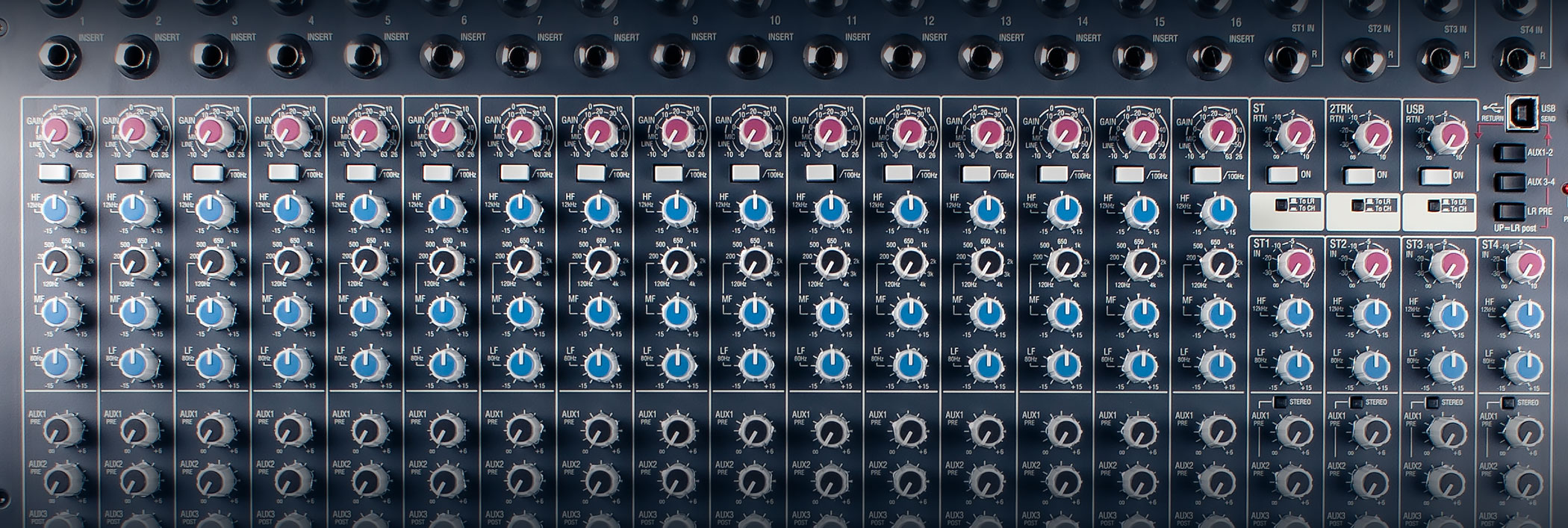

The ZED-24 is the largest of Allen & Heath's mid-format analog mixers, with sixteen mono mic/line channels and four stereo channels for full bands and multi-source live productions. The mono channels run DuoPre microphone preamps, a two-stage design with a 69 dB gain range that spreads gain evenly and keeps noise low, so a stage full of mics stays clean. MusEQ 3-band equalization with a sweepable midrange sits on every mono channel, with 2-band EQ on the stereo channels.

A 2-in/2-out USB interface records the stereo mix to a computer and returns playback for tracking, streaming, or virtual soundcheck playback. Four aux sends build monitor and effects feeds, XLR main outputs carry insert points for outboard gear, and durable 100mm faders give precise, repeatable control. 48V phantom power switches in for condenser mics, and the rugged metal chassis is built for touring.
