Allen & Heath DT Series Dante Interface

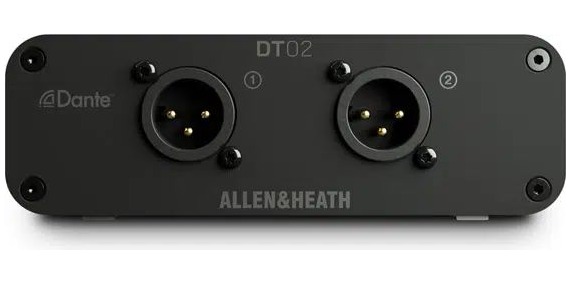

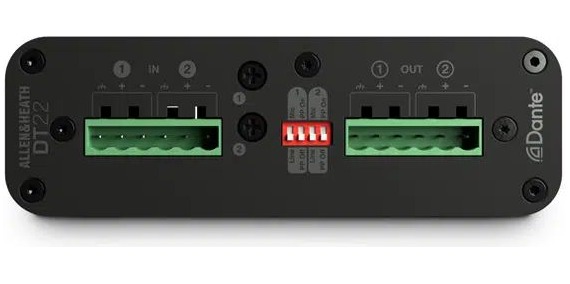

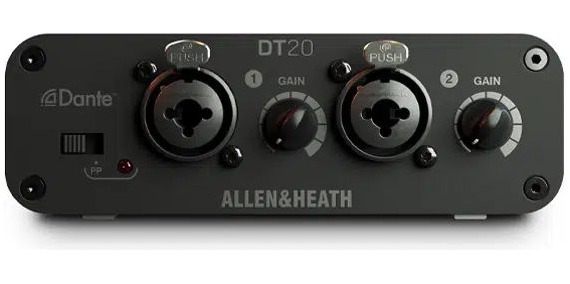

The DT range puts Allen & Heath analog I/O directly onto a Dante network, which is what an install needs when the audio backbone is Dante rather than SLink. The small units are the useful ones for retrofits: DT-02 gives two outputs, DT-20 gives two inputs, and DT-22 gives two in and two out, each in a compact box that can sit behind a rack panel or at a wall plate where a single pair of channels needs to reach the network.

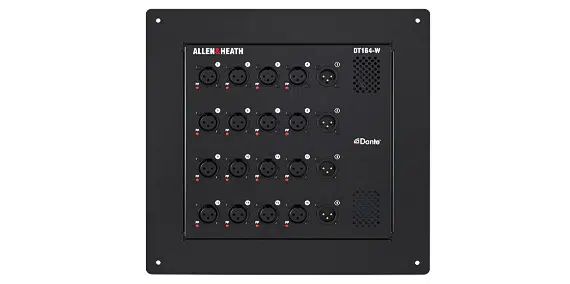

At the larger end, DT168 is a 16-in, 8-out interface for a stage position, and DT164-W is the wall-mount version with 16 in and 4 out for permanent installation. Because they are standard Dante endpoints, they work with any Dante system, not only Allen & Heath consoles, which makes them a straightforward way to add analog points to an existing network. The M and X suffixes are connector and mounting variants of the same channel count.
