Whirlwind MIP2 Media Input Wall Plate

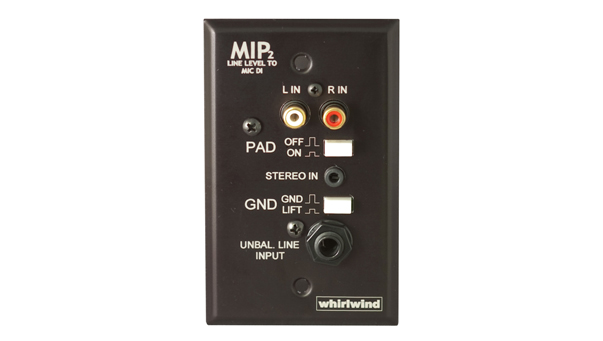

The MIP2 accepts stereo RCA, 3.5 mm TRS or 1/4 in unbalanced inputs and sums stereo to mono, so whatever a presenter arrives with can be plugged in. Use one input type at a time.

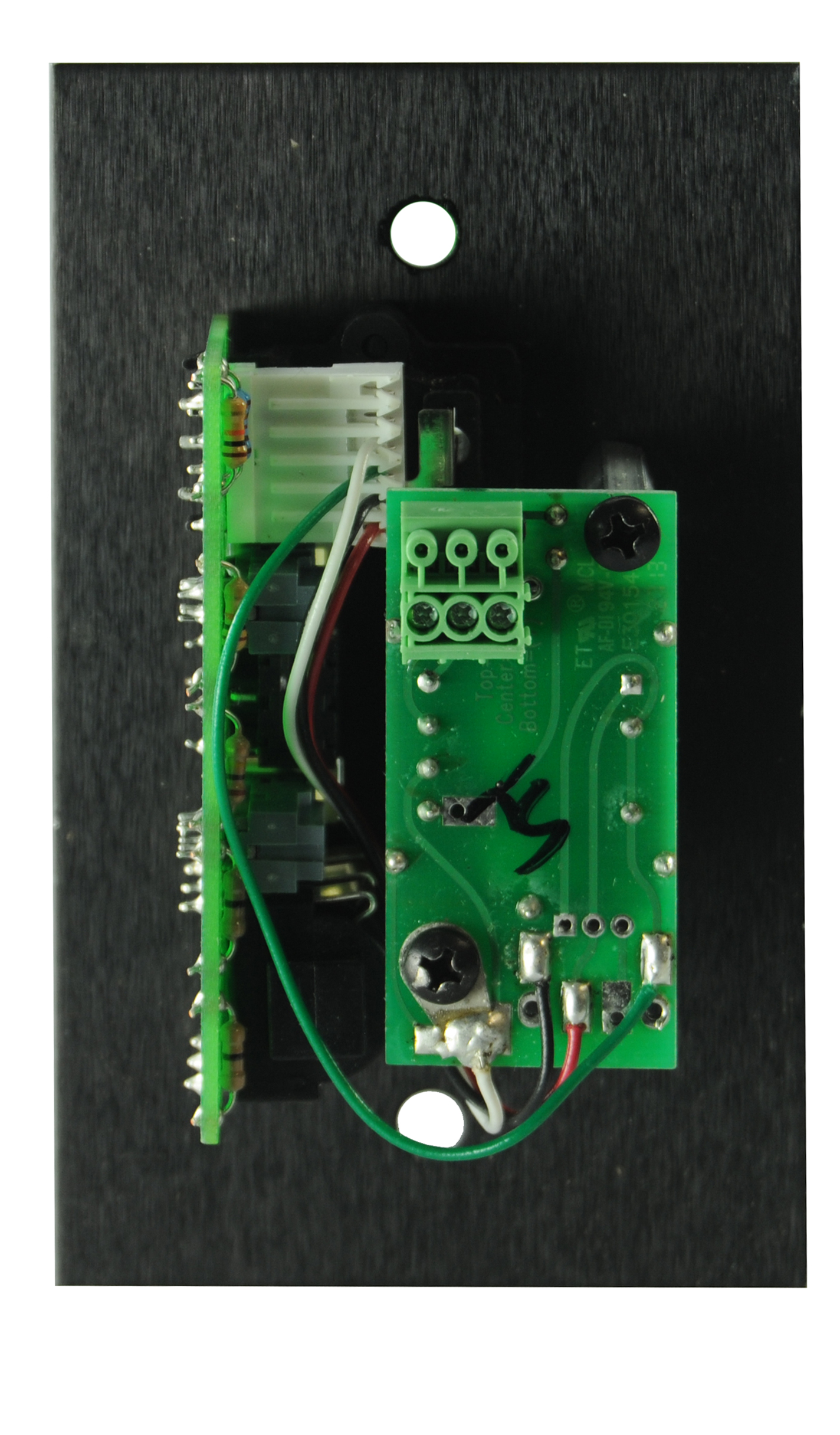

A Whirlwind DImax transformer converts the signal to low-Z mic level on screw terminals. A 20 dB pad tames a hot source before it hits the mic preamp at the far end, and a ground lift breaks the ground connection from input to output. Available with a black or a brushed stainless steel plate.
