Whirlwind MIP3 Media and Microphone Input Wall Plate

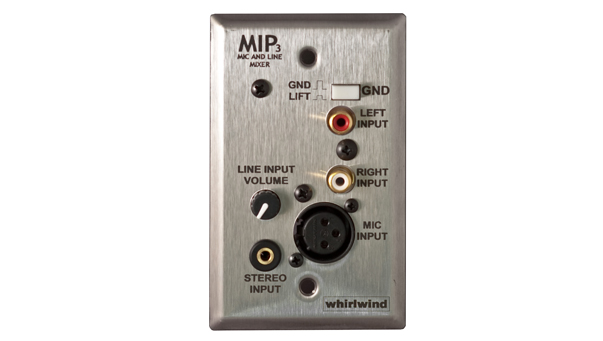

The MIP3 is the plate for a lectern that needs both a microphone and a laptop on the same channel. Stereo RCA and 3.5 mm TRS inputs sit beside a mic input and the three are mixed at mic level onto screw terminal strips.

An attenuation pot sets how much line sits under the microphone, so a presenter's voice stays on top of a video soundtrack. Phantom power passes from the output terminals through to the mic input, which means a condenser works without a local supply. This is essentially the podMIX with screw-terminal outputs on a wall plate. Available with a black or a brushed stainless steel plate.
