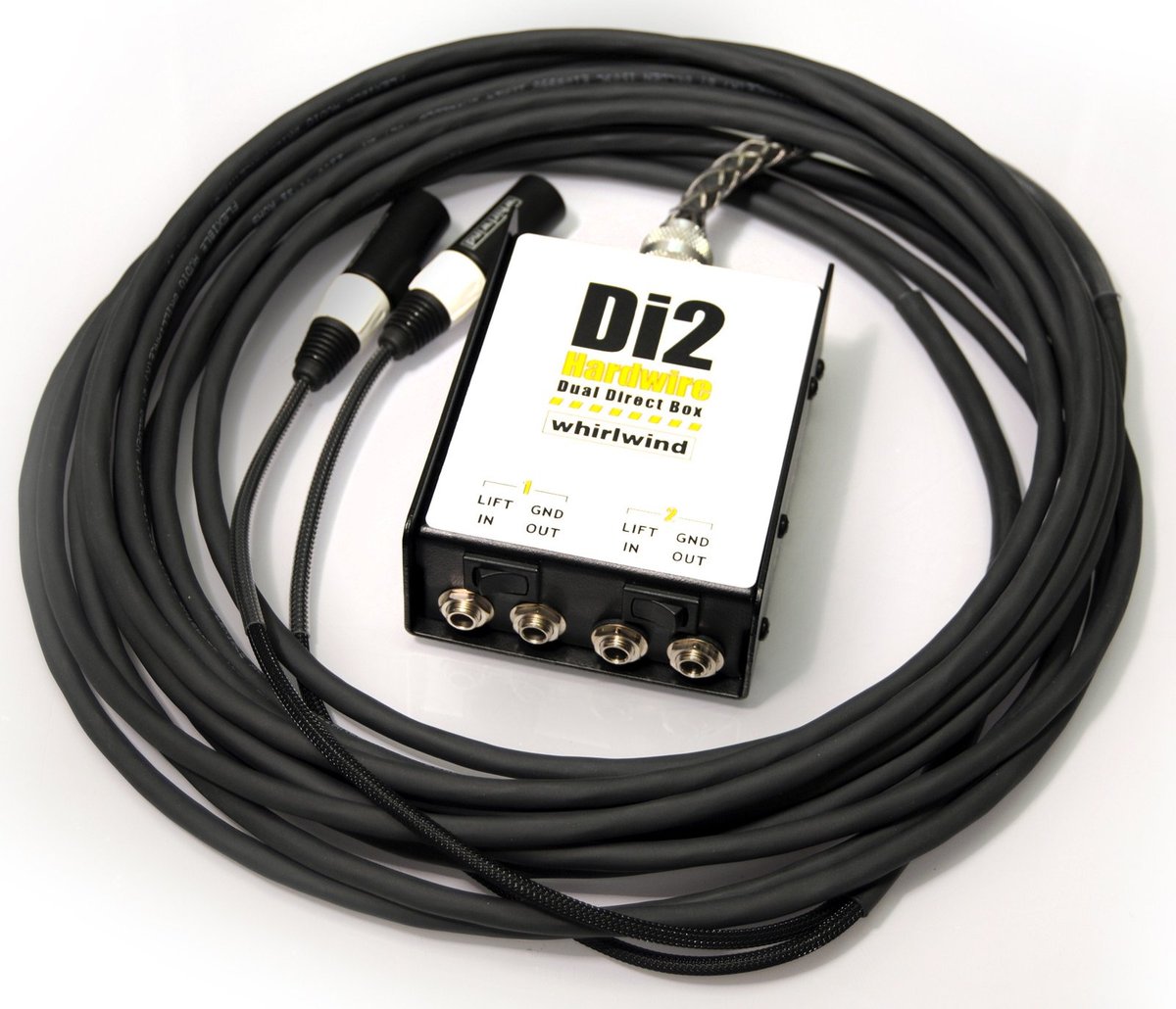

Whirlwind DI2 Hardwired Two-Channel Direct Box

The DI2 is the hardwired version of the DIRECT2: two passive DI channels with the output tails already attached, so there are no mic cables to run from the snake back to the box and no cross-patching errors to trace at line check. The fanout is colour coded and wrapped in Snakeskin, so you can see at a glance what is patched where.

Each section uses the TRHL-M transformer found in the DIRECTOR, has parallel wired 1/4 inch in and out jacks and a ground lift switch, and the two sections have isolated input and output grounds. Listed here in the standard 25 ft and 50 ft black cable lengths.
