Vaddio RoboSHOT IW Smart Glass PTZ Camera (Primed)

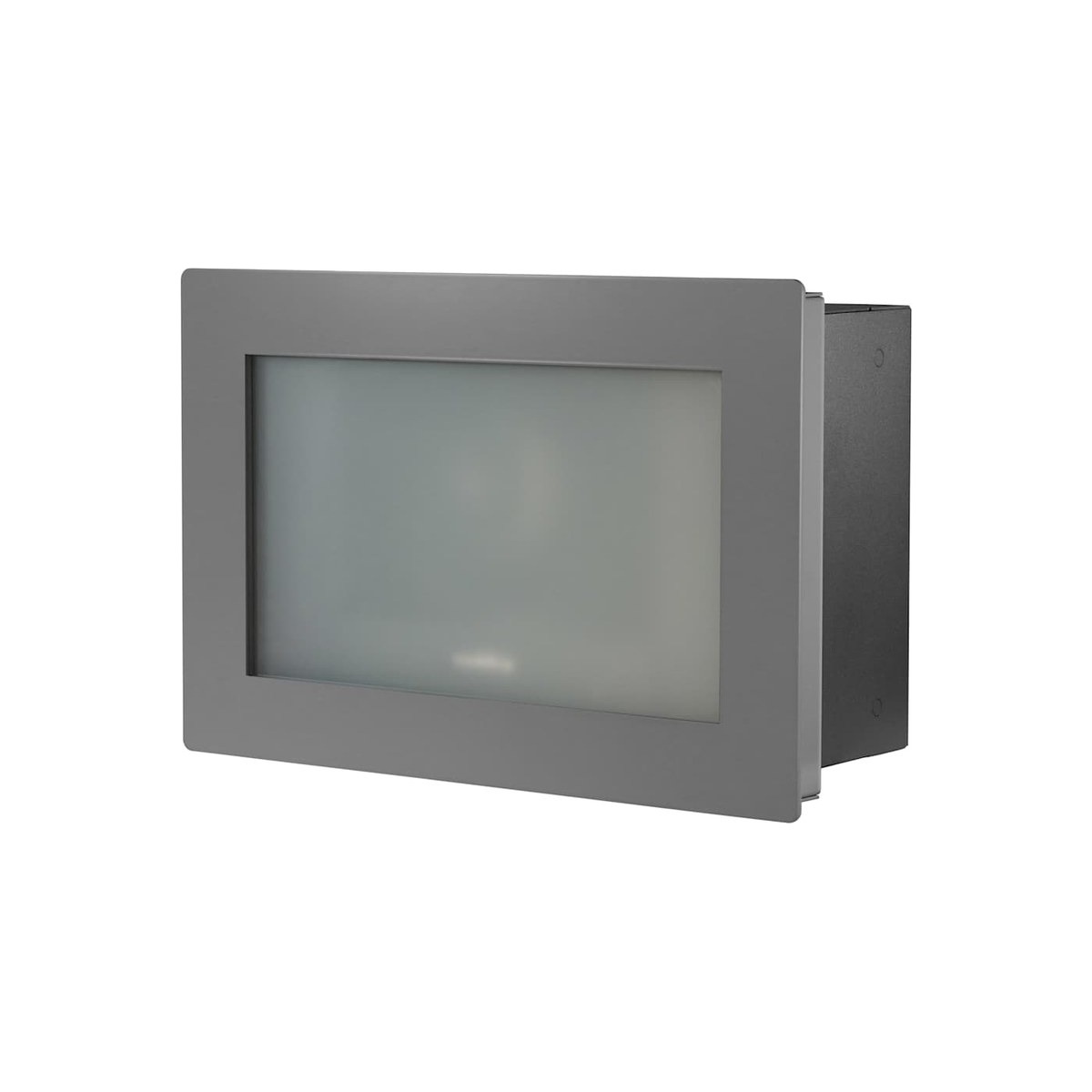

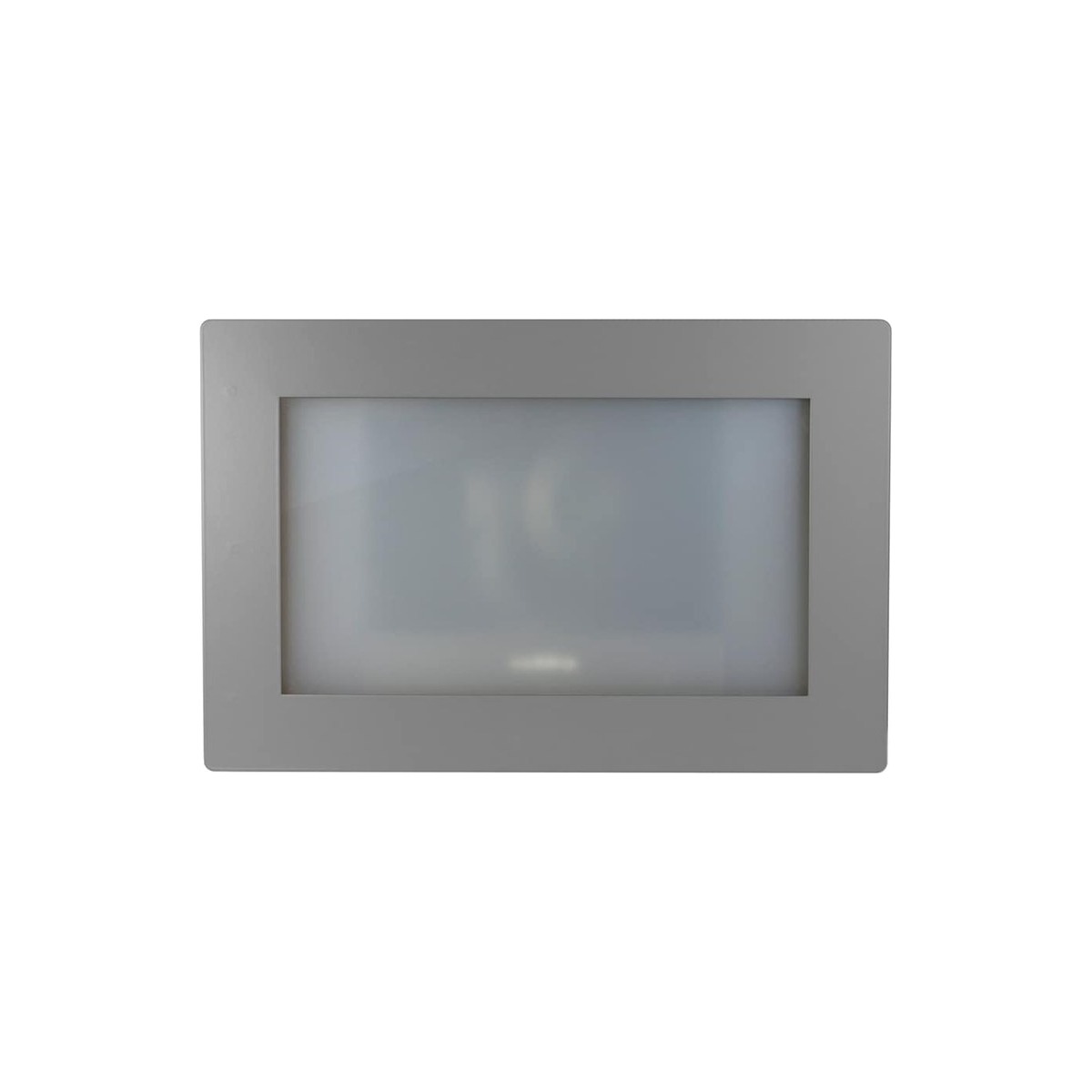

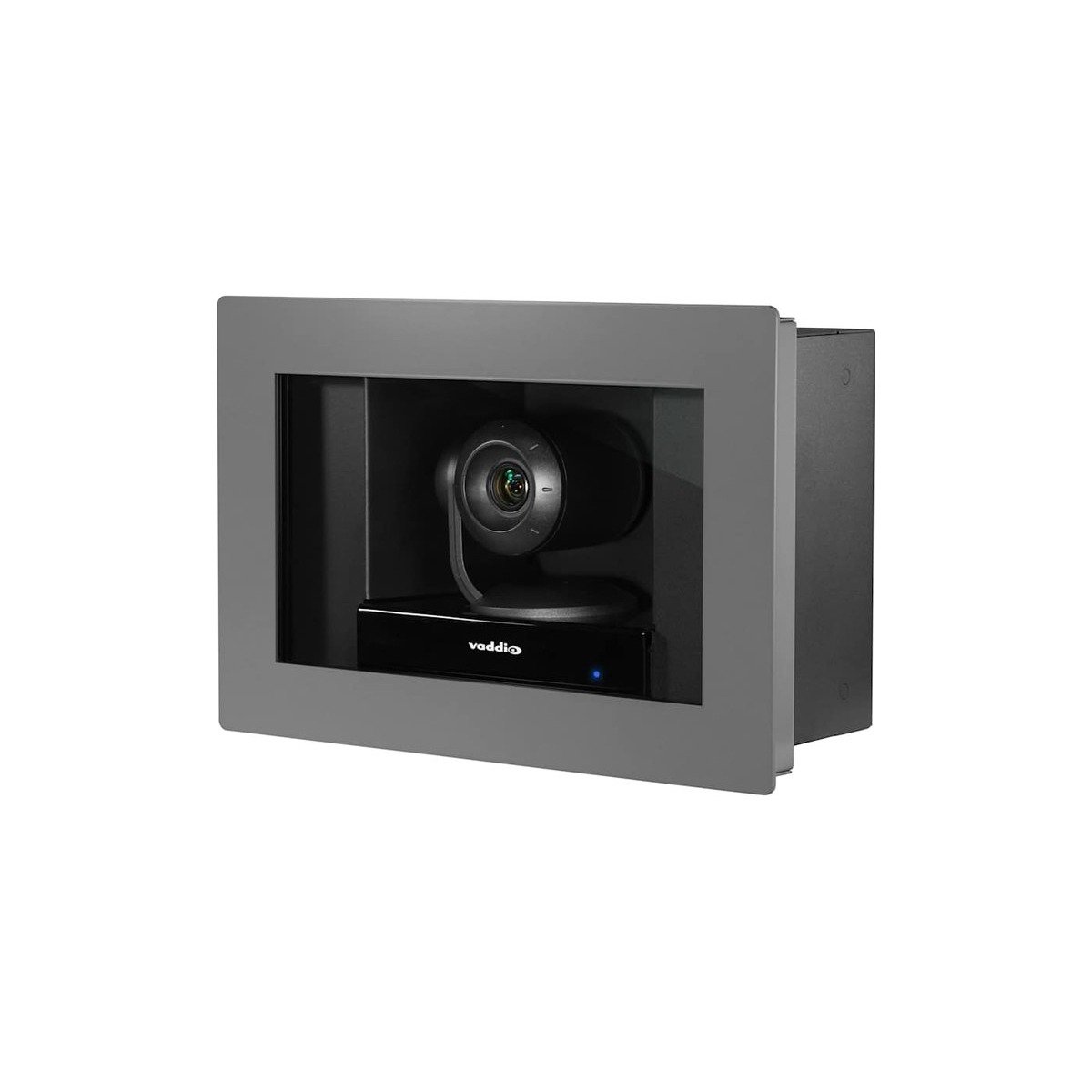

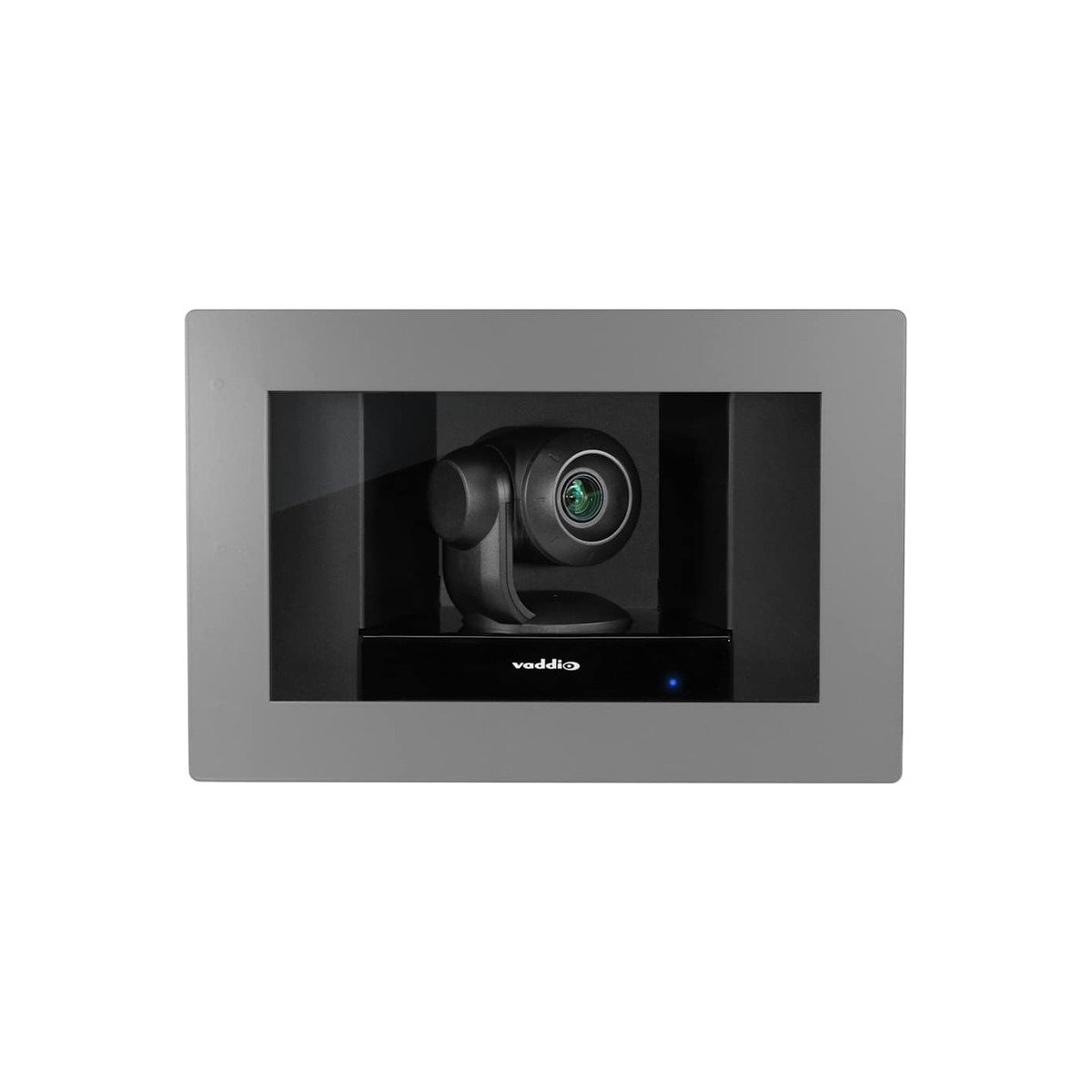

The RoboSHOT IW (In-Wall) hides a full HDBaseT PTZ camera inside a recessed, fully enclosed frame so a room captures cleanly without a camera on a stalk or shelf. This is the Smart Glass model in a primed frame: the front panel is supplied ready to paint so it can be finished to match the wall, and the glass cover stays a frosted opaque when the camera is off and turns transparent only when it powers on, giving occupants a clear indication that they are on air. The recessed, ADA-compliant design captures HD 1080p with a 10x optical zoom and a 73-degree wide field of view.

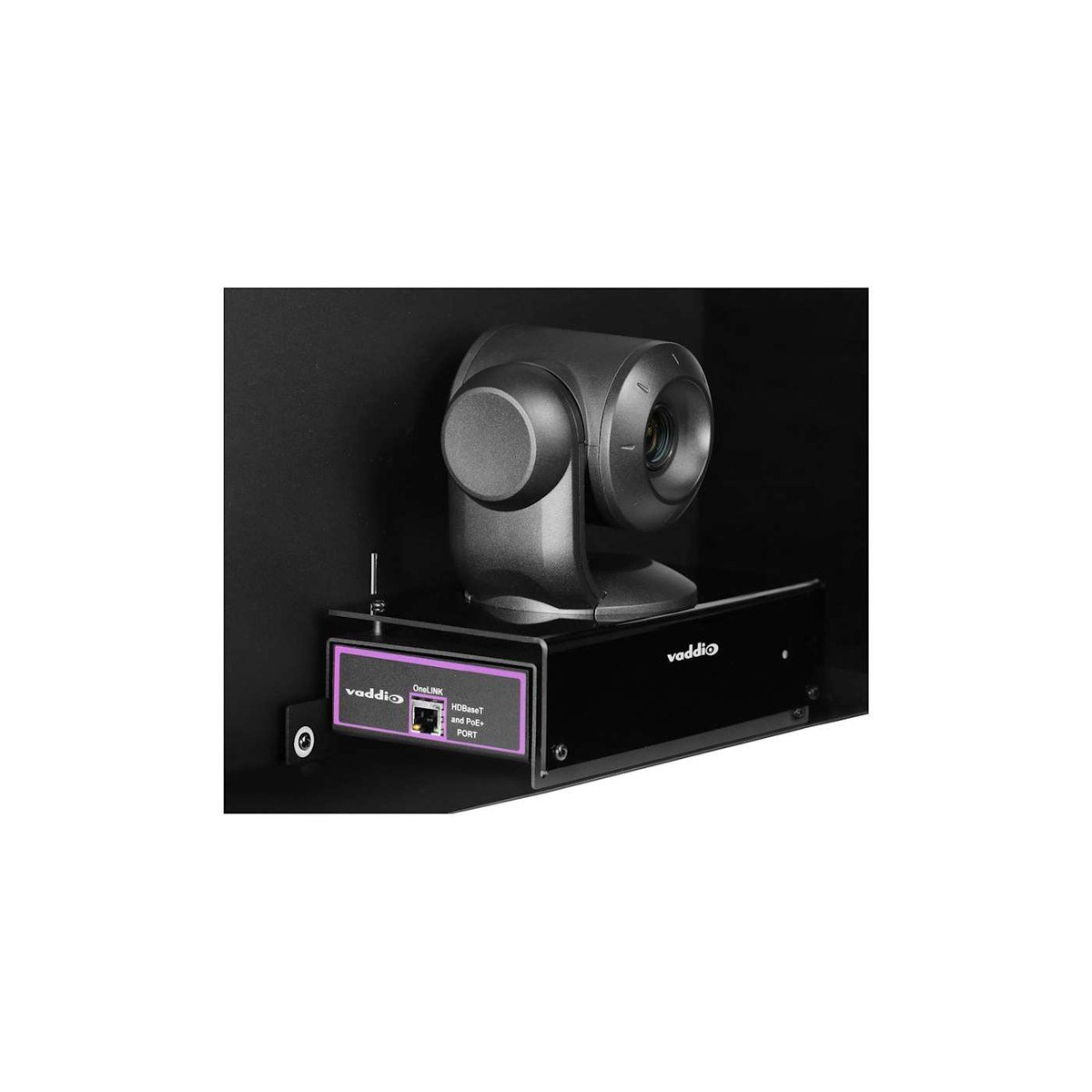

This SKU is the camera and enclosure on their own, without a OneLINK interface, so it suits installers who already have compatible extension or control gear. The camera carries a single OneLINK/HDBaseT connector and no physical switches; all setup is handled through the web interface, with Telnet and RS-232 for integration. It ships with the RoboSHOT IW camera and back-box, a primed smart-glass front frame, left and right interior side plates, drywall mounting hardware, the IR Remote Commander, and an Installation Guide. Pair it with a Vaddio OneLINK Bridge or OneLINK HDMI interface to carry power, control, and video over a single Cat-5e cable.

Image Sensor1/2.8-type Exmor CMOS, 2.14M effective (2.38M total)
Max Resolution1080p/60
Zoom10x optical (12x in super-wide mode)
Horizontal FOV73.0 degrees (wide) to 6.6 degrees (tele)
Pan / Tilt RangePan +/-31 degrees, tilt +18/-30 degrees
Minimum Illumination0.4 lux (F1.6, AGC on, 1/30 s)
InterfaceHDBaseT (OneLINK interface required, sold separately)
PowerUnder 25 W (PoE+) via OneLINK
IncludedRoboSHOT IW camera and back-box, primed smart-glass front frame, left and right side plates, drywall hardware, IR Remote Commander, Installation Guide
