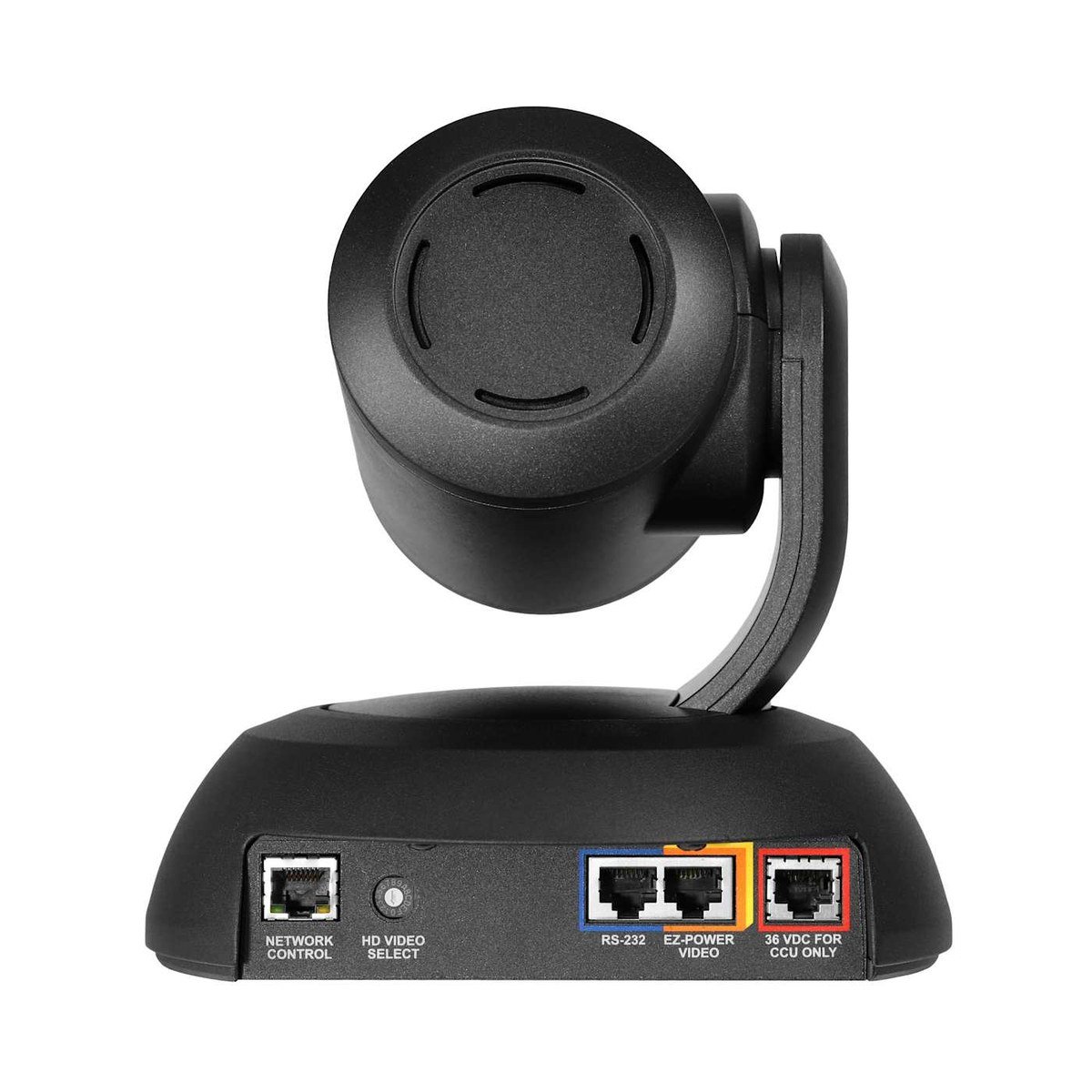

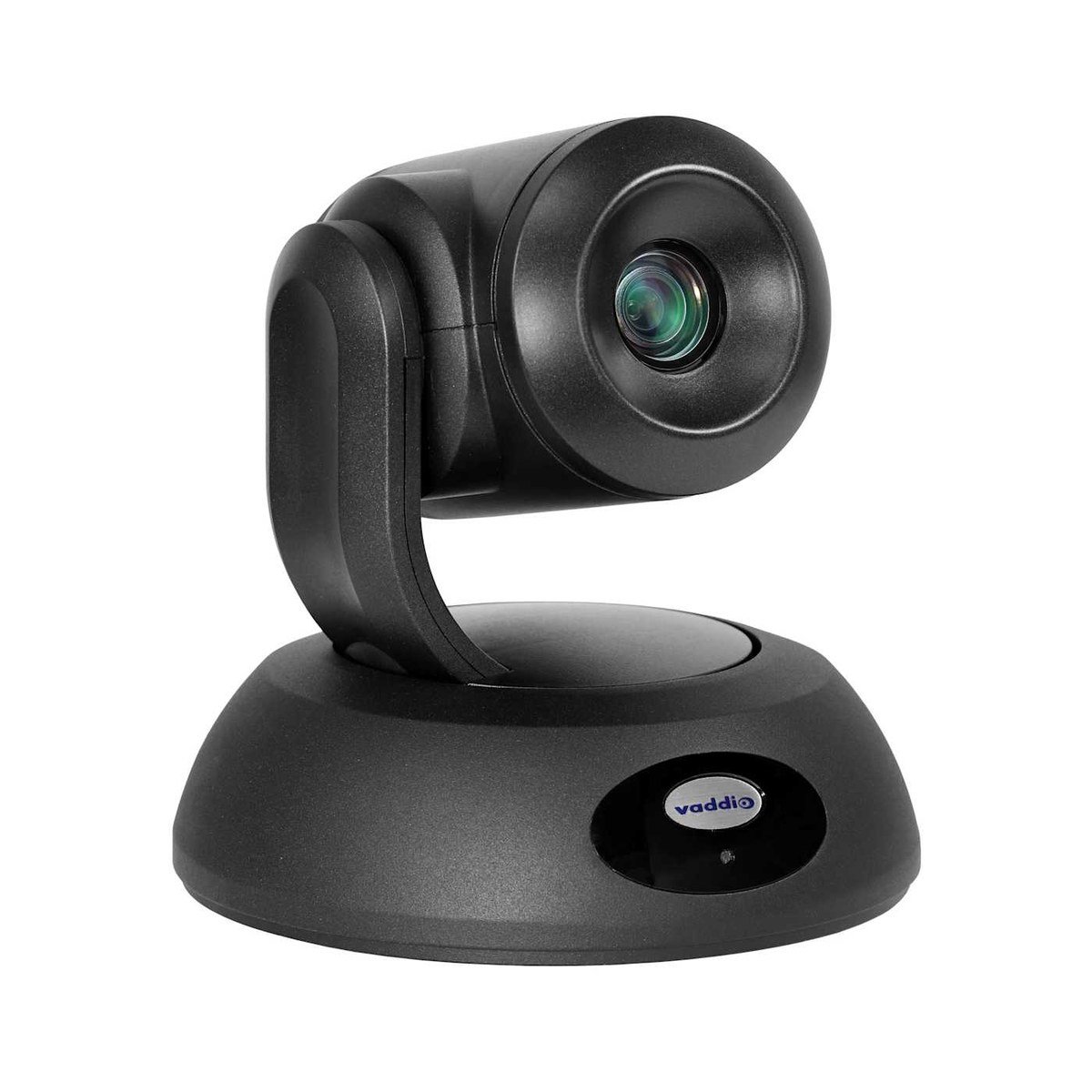

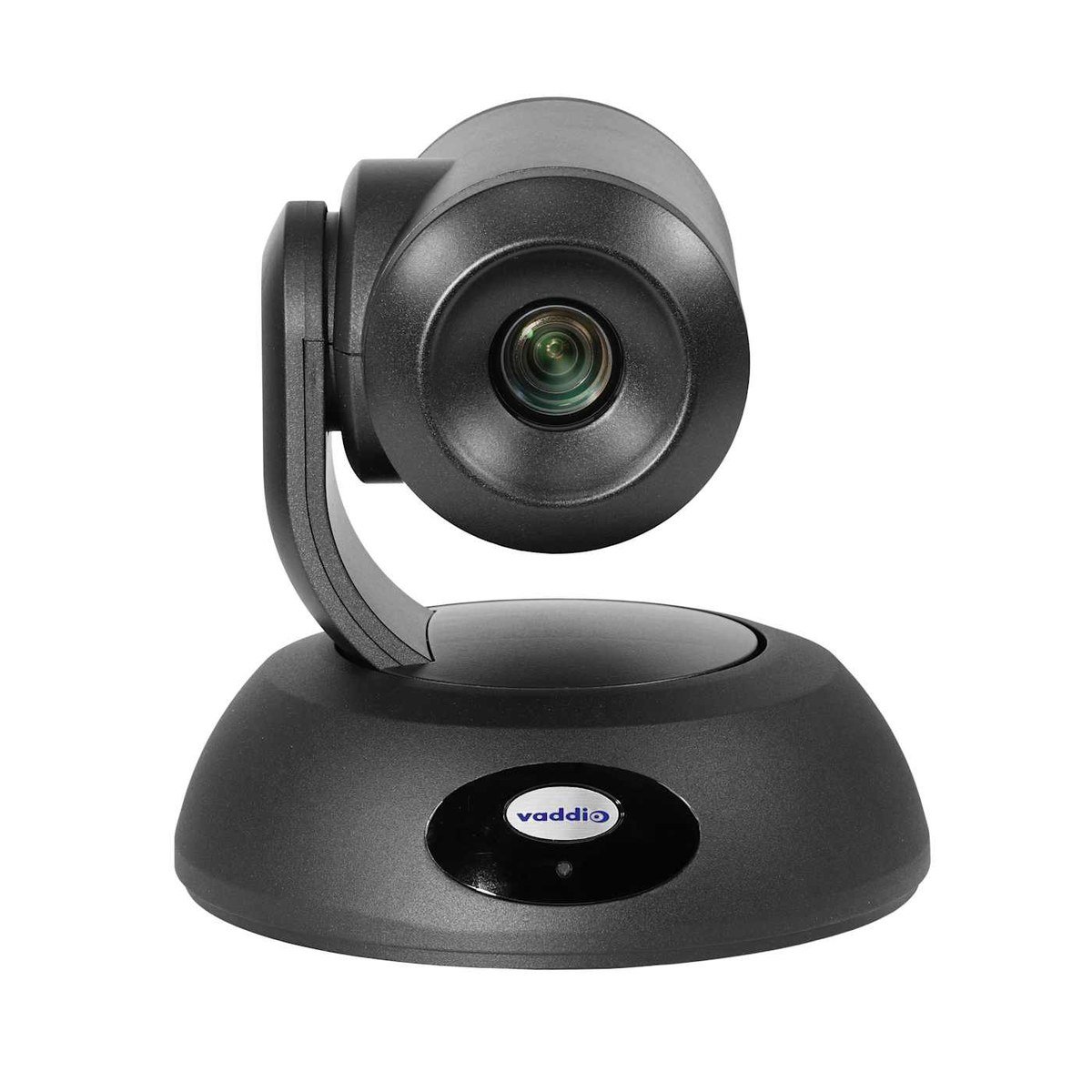

Vaddio RoboSHOT 30E QDVI System
The 30E QDVI system puts Vaddio's long-throw Elite Series camera on the Quick-Connect DVI/HDMI SR interface. Two cat-5 cables carry power, video and control out to 100 ft, and the QDVI unit at the head end gives HDMI, DVI-D and component HD YPbPr outputs so the system drops into rooms with mixed-vintage displays and switchers.

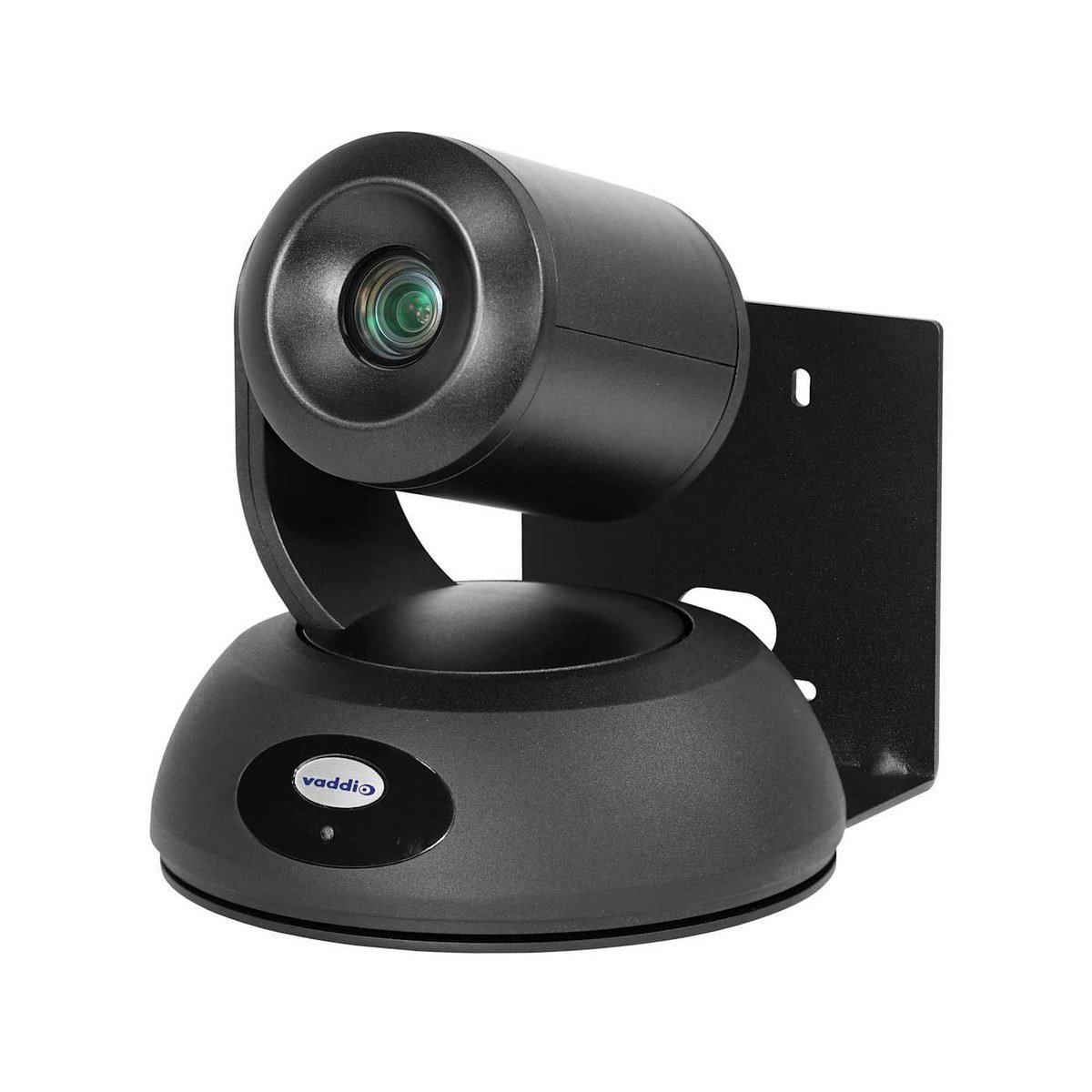

30x zoom from a 70.2 degree wide end covers a large room from one position, and the 1/2.5-type Exmor R CMOS sensor with Vaddio's image signal processing keeps 1080p/60 detail in low light. Enhanced wide dynamic range evens out frames with bright windows, and Tri-Synchronous Motion moves pan, tilt and zoom together for smooth preset recalls. Supplied with the camera, a Thin Profile Wall Mount in the matching finish with hardware and installation manual, the Vaddio IR Remote Commander, the QDVI interface, a 24V power supply with AC cord set and quick-start cards.
| Image Sensor | 1/2.5-type Exmor R CMOS |
|---|---|
| Zoom | 30x |
| Horizontal Field of View | 70.2 degrees |
| Interface Outputs | HDMI, DVI-D and HD YPbPr |
| Camera Run | Power, video and control on two cat-5 cables up to 100 ft (30.5 m) |
| Motion | Tri-Synchronous Motion, all three axes simultaneously |
| Power | 24V power supply with AC cord set |
| Included | RoboSHOT 30E camera, QDVI interface, Thin Profile Wall Mount with hardware, IR Remote Commander, 24V supply, quick-start cards |
