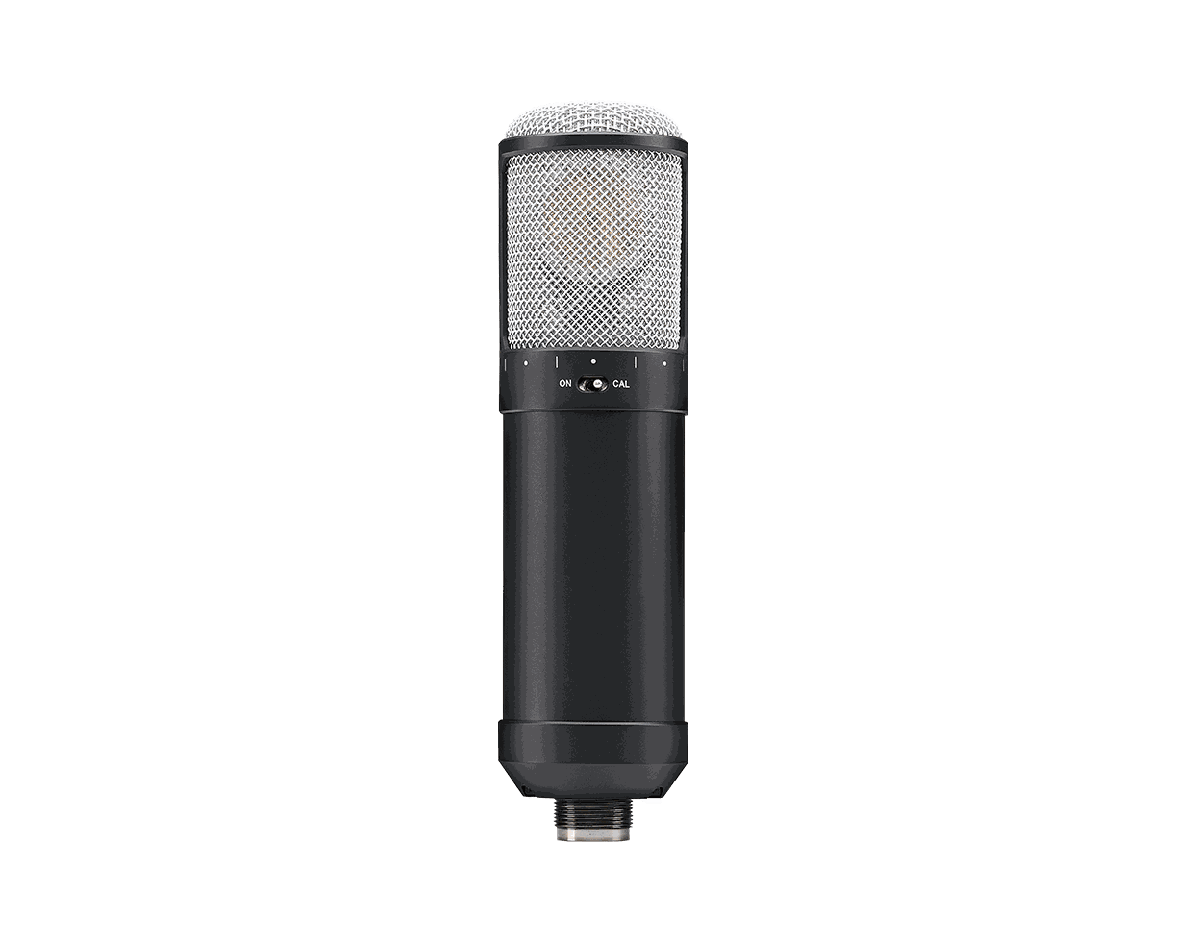

Universal Audio Sphere LX Modeling Microphone

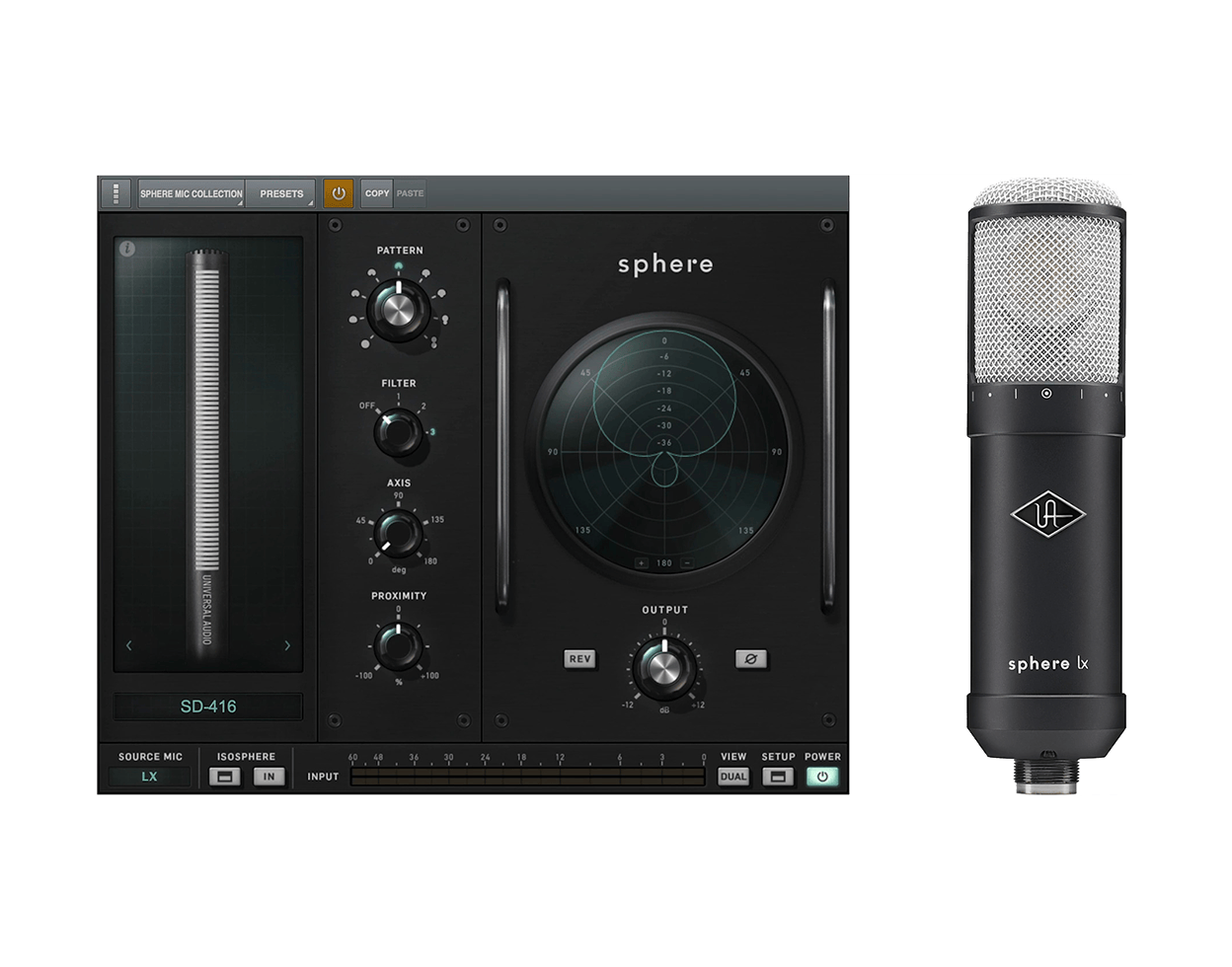

The Sphere LX captures both sides of a dual-capsule element separately over a 5-pin XLR, and the Sphere plug-in reconstructs the microphone from that pair. That is what makes mic type, polar pattern and axis adjustable after tracking rather than before.

It handles 145 dB maximum SPL at 1% THD with a 10 dBA equivalent noise level, runs on standard 48V phantom at 3 mA per channel, and ships with a 10 foot breakout cable to two 3-pin XLR outputs.

Type	Dual-capsule modeling condenser
Equivalent Noise Level	10 dBA
Max SPL (1% THD)	145 dB
Sensitivity	-39 dB (11 mV) ref 1V at 1 Pa, 1 kHz
Output Connector	5-pin XLR (male)
Breakout Cable	10 ft 5-pin XLR female to dual 3-pin XLR female
Output Impedance	200 ohms
Phantom Power	48V DC per channel, 3 mA typical
Weight	1.2 lbs (545 g)
