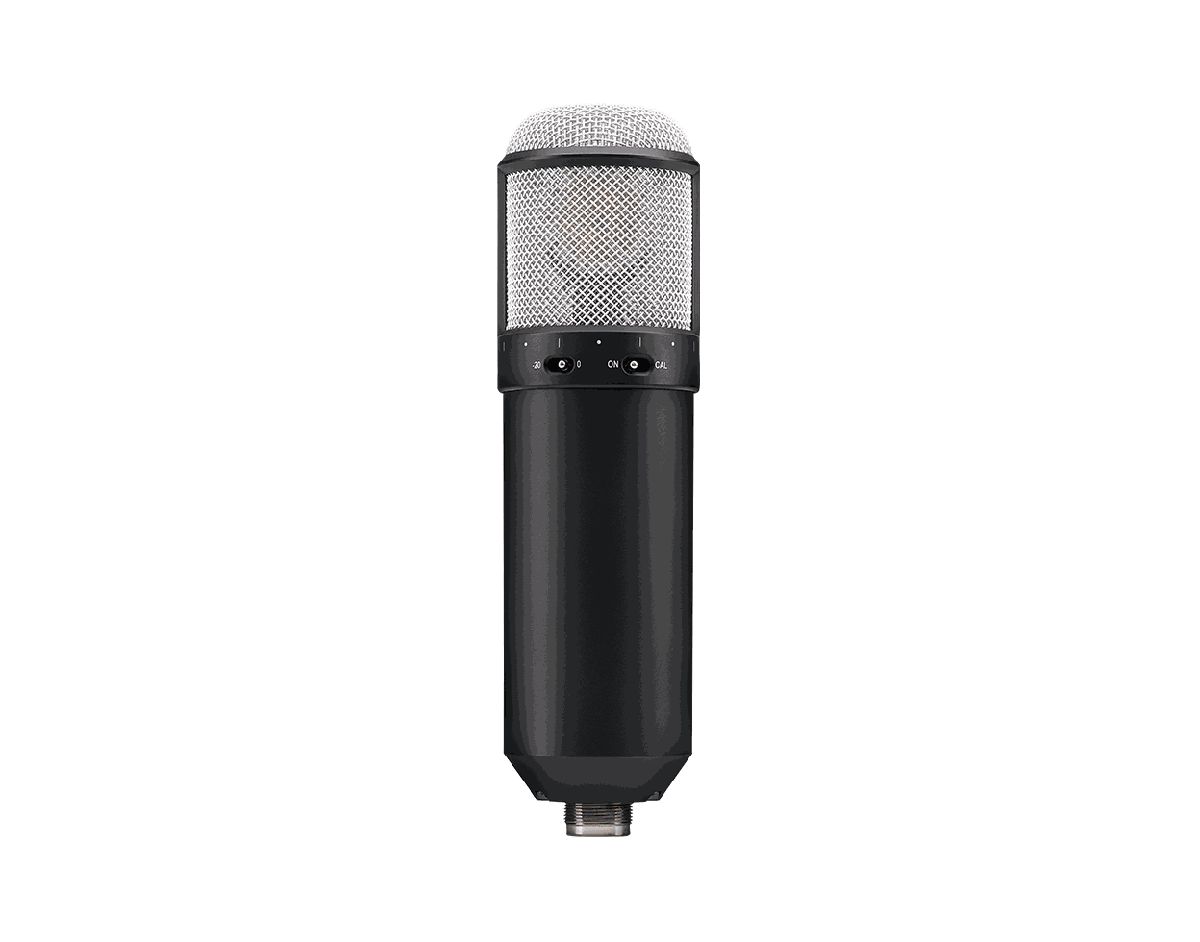

Universal Audio Sphere DLX Modeling Microphone

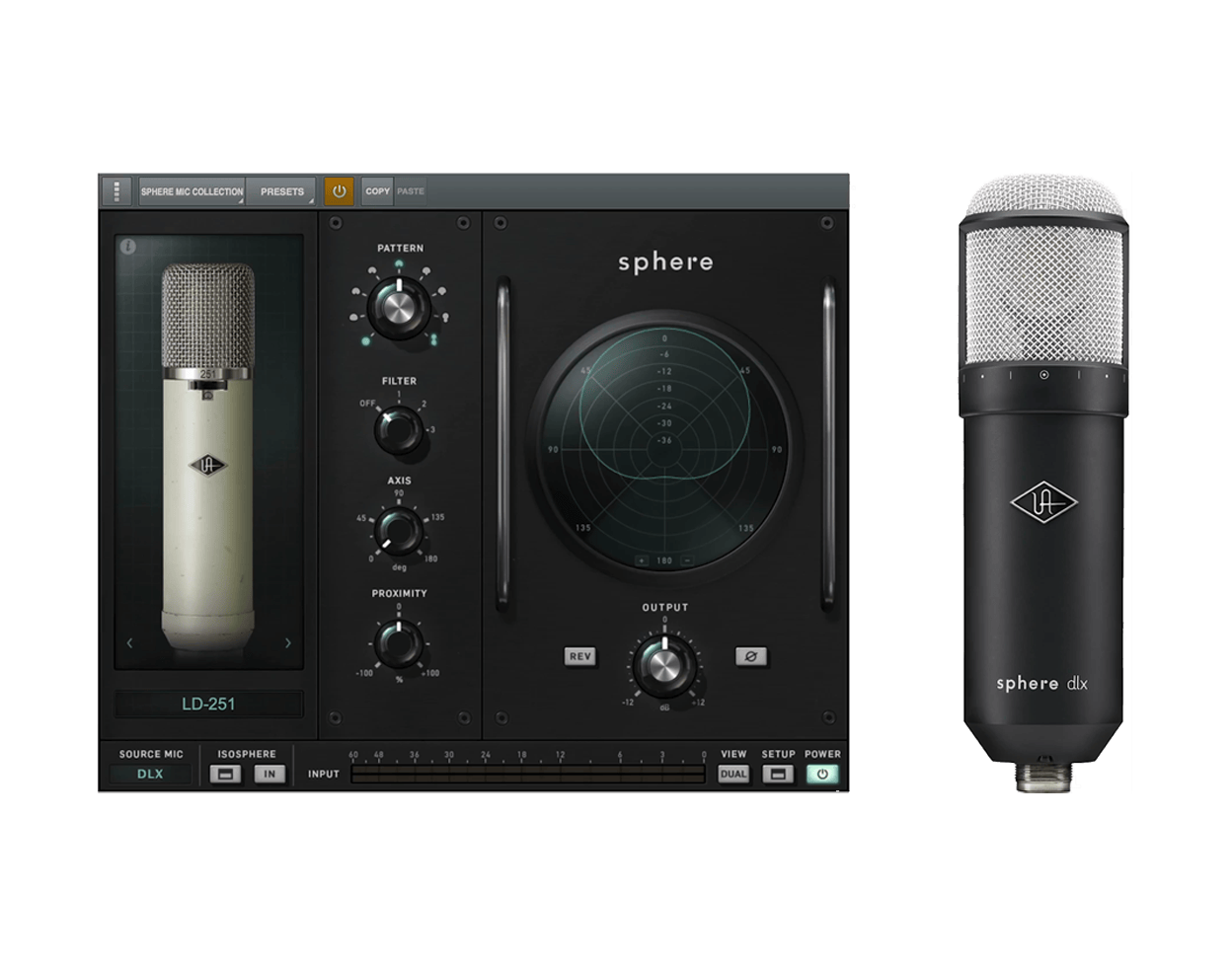

The Sphere DLX is the wider version of UA's modeling microphone system, capturing both halves of its dual-capsule element so the Sphere plug-in can reconstruct 38 sought-after ribbon, condenser and dynamic microphones from one take.

Mic type, polar pattern and off-axis behaviour stay editable after tracking. It reaches 140 dB maximum SPL with the -20 dB pad engaged, has a 7 dBA equivalent noise level, and runs on 44 to 52V phantom at 5 mA per channel.

Type	Dual-capsule modeling condenser
Equivalent Noise Level	7 dBA
Max SPL (1% THD)	140 dB with -20 dB pad engaged
Pad Attenuation	-20 dB
Sensitivity	-33 dB (22 mV) ref 1V at 1 Pa, 1 kHz
Output Connector	5-pin XLR (male)
Breakout Cable	10 ft 5-pin XLR female to dual 3-pin XLR female
Phantom Power	44 - 52V per channel, 5 mA typical
Weight	1.7 lbs (770 g)
