Universal Audio UAFX Knuckles '92 Dual Rec Amplifier

Knuckles '92 Dual Rec Amplifier emulates the 1992 Rev F dual rectifier tones that ran through punk, alt rock and metal from the 1990s onward.

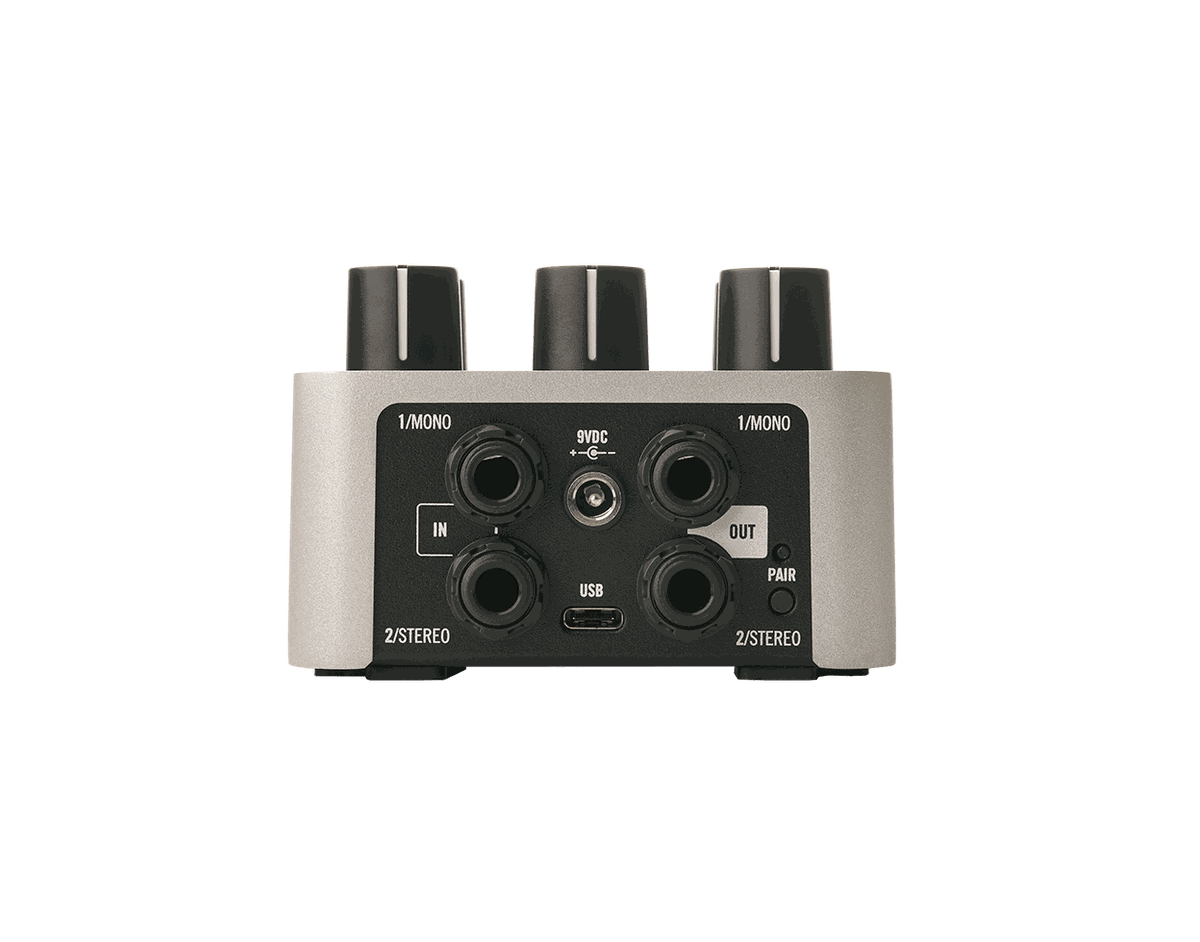

Channel switching, a TS-style overdrive, preamp boost and noise gate are included, along with six mic and speaker pairings taken from records of that era. Connections are 1/4 inch unbalanced in and out with stereo capability on the second jacks, and USB Type-C handles registration and firmware. The UAFX Control app adds realtime MIDI control, Bluetooth and hardwired connections, and footswitch modes with presets on tap.

Inputs	2 x 1/4" unbalanced TS (input 2 for stereo connections)
Outputs	2 x 1/4" unbalanced TS (output 2 for stereo connections)
Input Impedance	500 Kilohms (Mono In) 1 Megohms (Stereo In)
Output Impedance	500 Ohms
Frequency Response	20 Hz to 20 kHz, +/-3 dB
Power	Isolated 9VDC, center-negative, 400mA minimum
Dimensions	2.56 x 3.62 x 5.55 in (H x W x D)
Weight	1.34 lbs (0.605 kg)
