Gator GTR-PWR-12 Pedalboard Power Supply, 12 Isolated Outputs

This is the supply for a board that has run out of room. Twelve isolated outputs cover the range a full pedalboard actually draws: two 18V DC at 120mA, three switchable 9/12V DC at 120mA, two variable 4 to 9V DC at 120mA, two 9V DC at 300mA, and two 9V DC at 500mA for the digital boxes that need headroom. A USB-C output supplies 5V at 2A, and a rear AC outlet takes the one wall-wart device that refuses to cooperate. Total current is 2300mA.

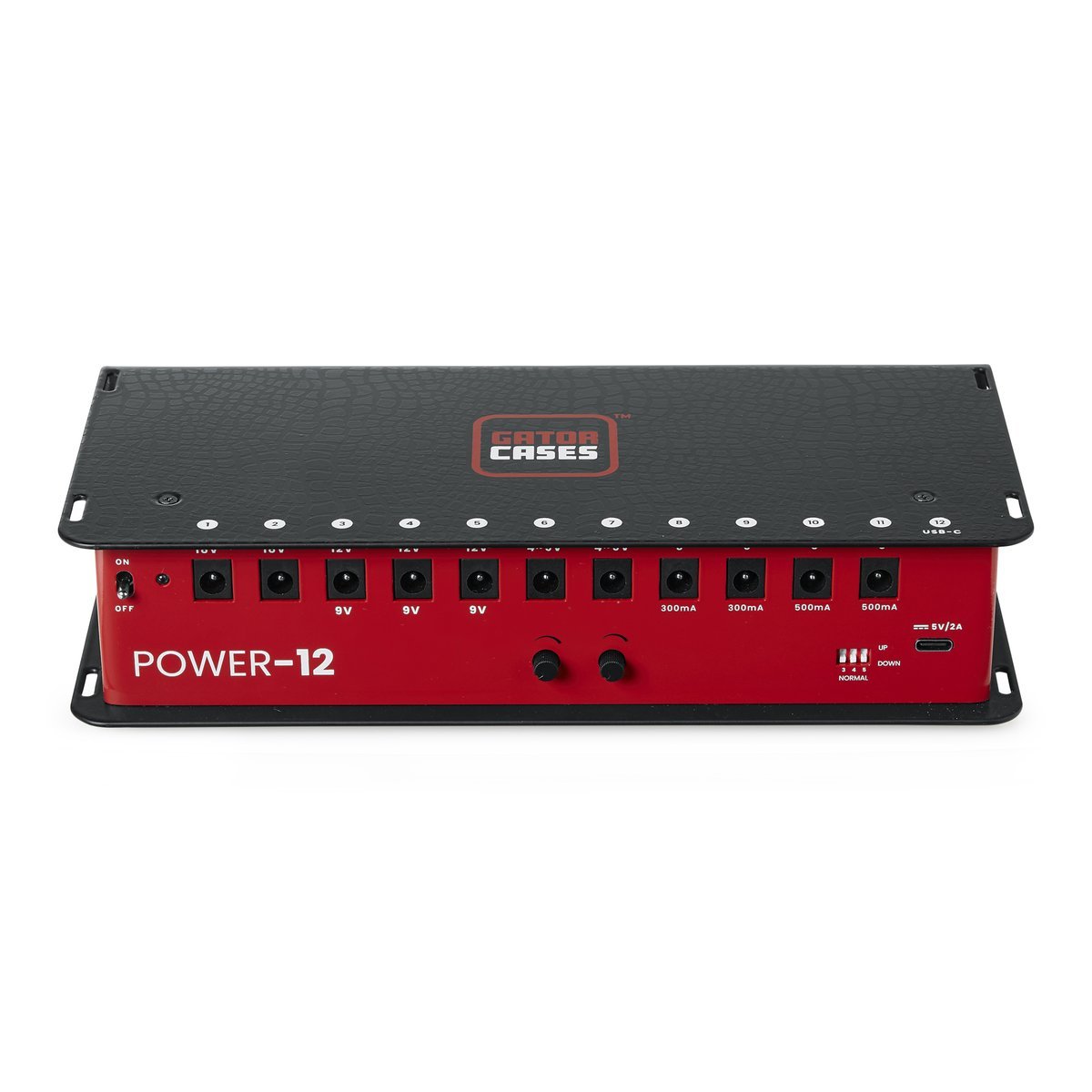

Outputs 3, 4 and 5 switch between 9 and 12V on front-panel DIP switches, and outputs 6 and 7 sweep continuously from 4 to 9V for sag. A gooseneck white LED light is included and runs off the USB output, which covers the board in a dark venue without another power draw. Mains input selects 115V or 230V, and the lit power switch shuts the rig down from the board. Cables in the box: mains cord, twelve DC cables in assorted lengths, a 9V battery clip cable, a mini jack cable, a USB-C male to USB-A female adapter, a current doubler and a polarity inverter.
