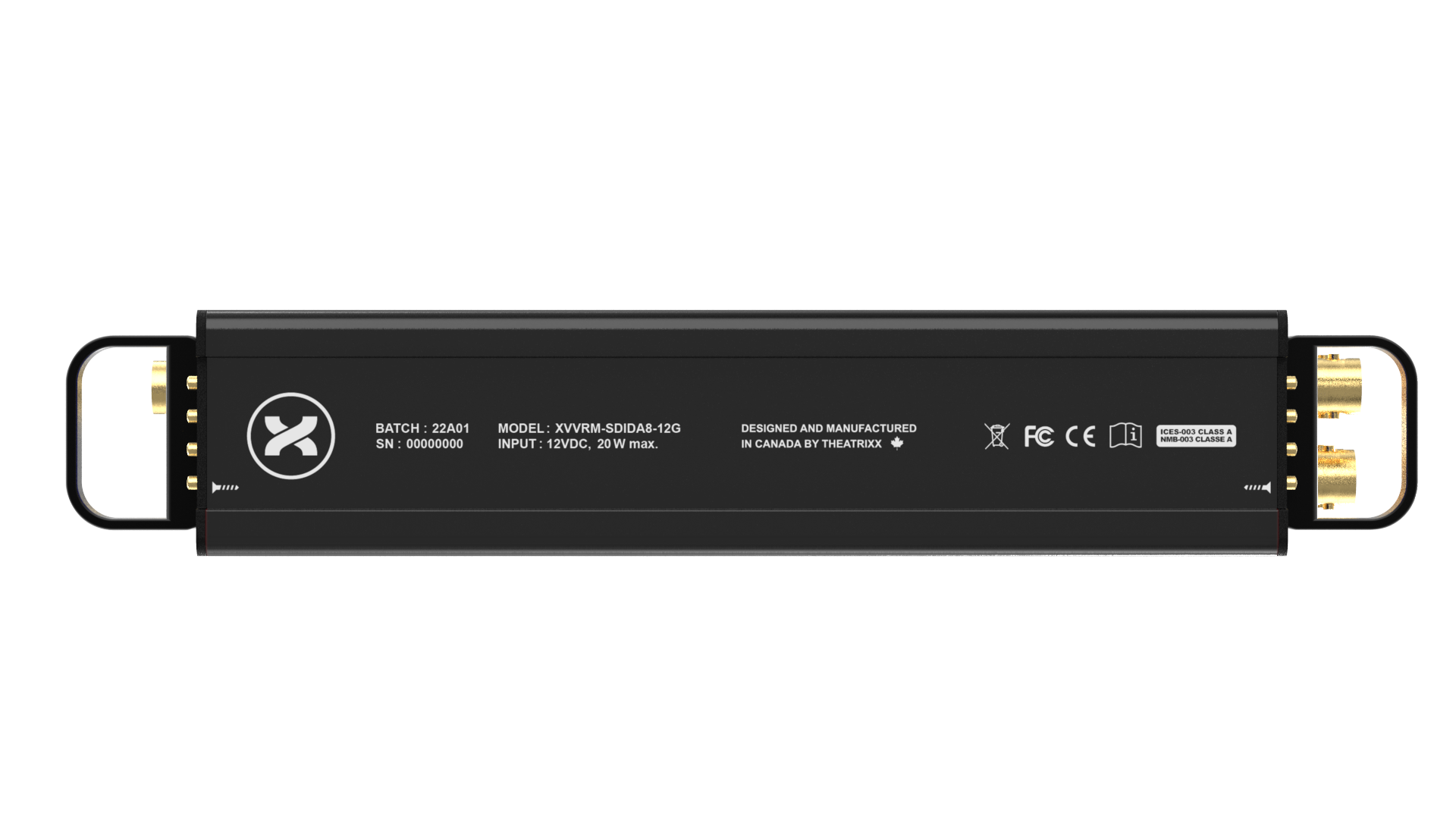

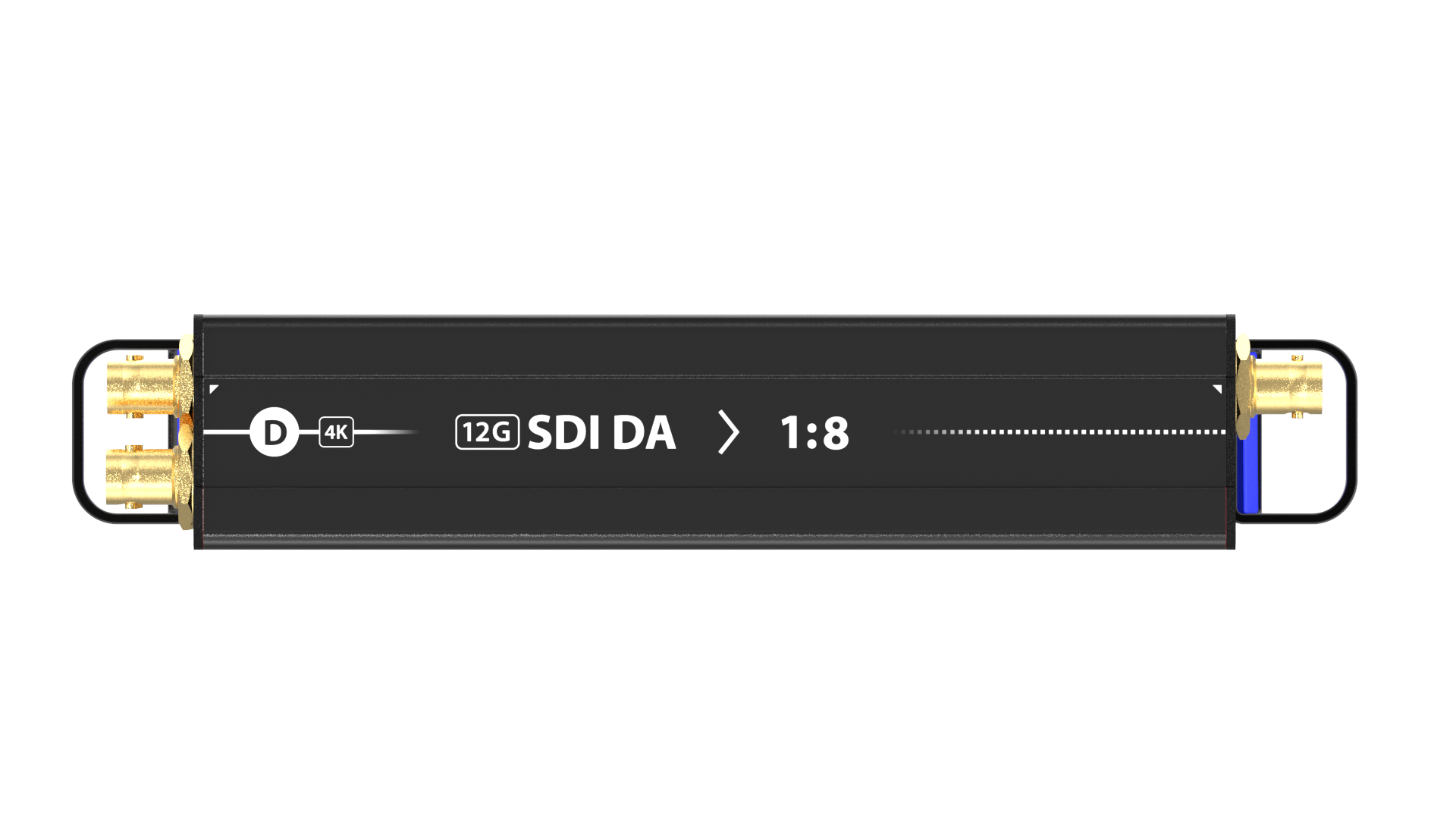

Theatrixx xVision 12G-SDI Distribution Amplifier 1:8 Reversible Module - XVVRMSDIDA812G

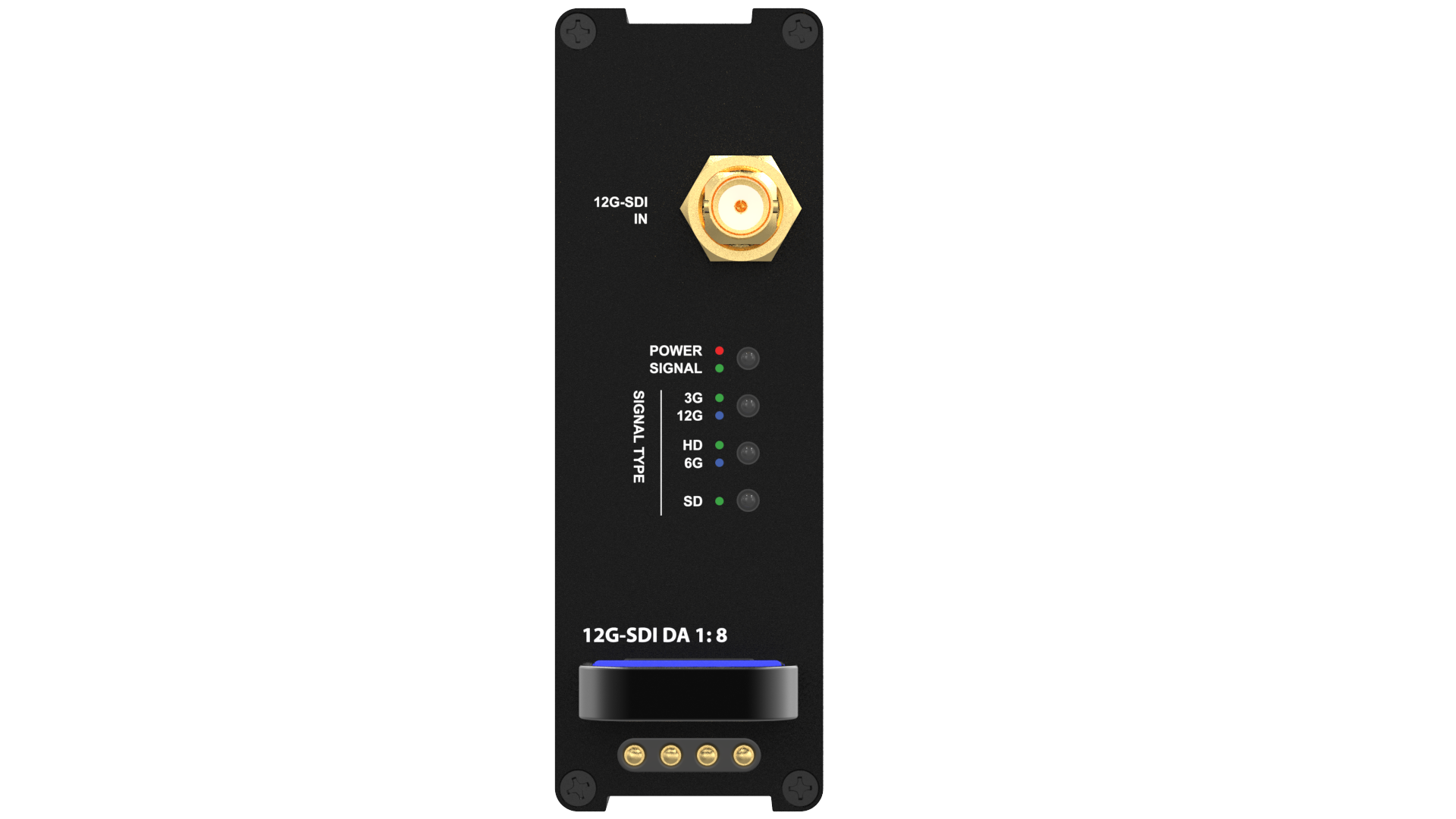

XVVRMSDIDA812G is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It feeds one source to several destinations without a router. Input is 1 x 12G/6G/3G/HD/SD SDI BNC and output is 8 x 12G/6G/3G/HD/SD SDI BNC (reclocked and amplified). Signal handling follows SMPTE 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M.

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
