Theatrixx xVision SDI Distribution Amplifier 1:8 True1 - XVVSDIDA8

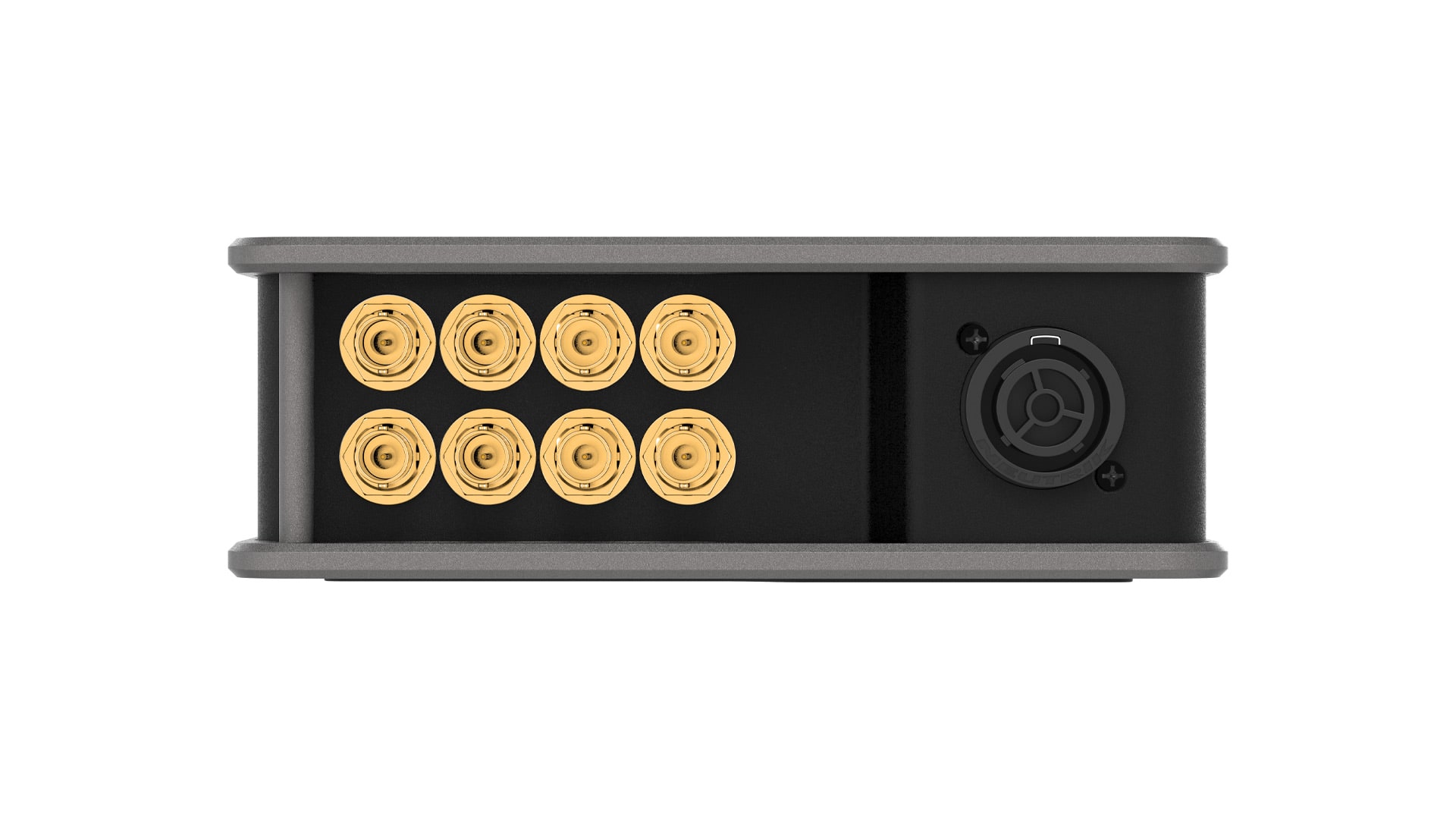

XVVSDIDA8 is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It feeds one source to several destinations without a router. Input is 1 x 12G-SDI BNC and output is 8 x 12G-SDI BNC (reclocked & amplified). Signal handling follows SMPTE ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M.

Power is Built-in power supply, PowerCON True1 in / loop thru. Draw is 45W max. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
