Theatrixx xVision 12G-SDI Distribution Amplifier 1:4 - XVVSDIDA4-12G

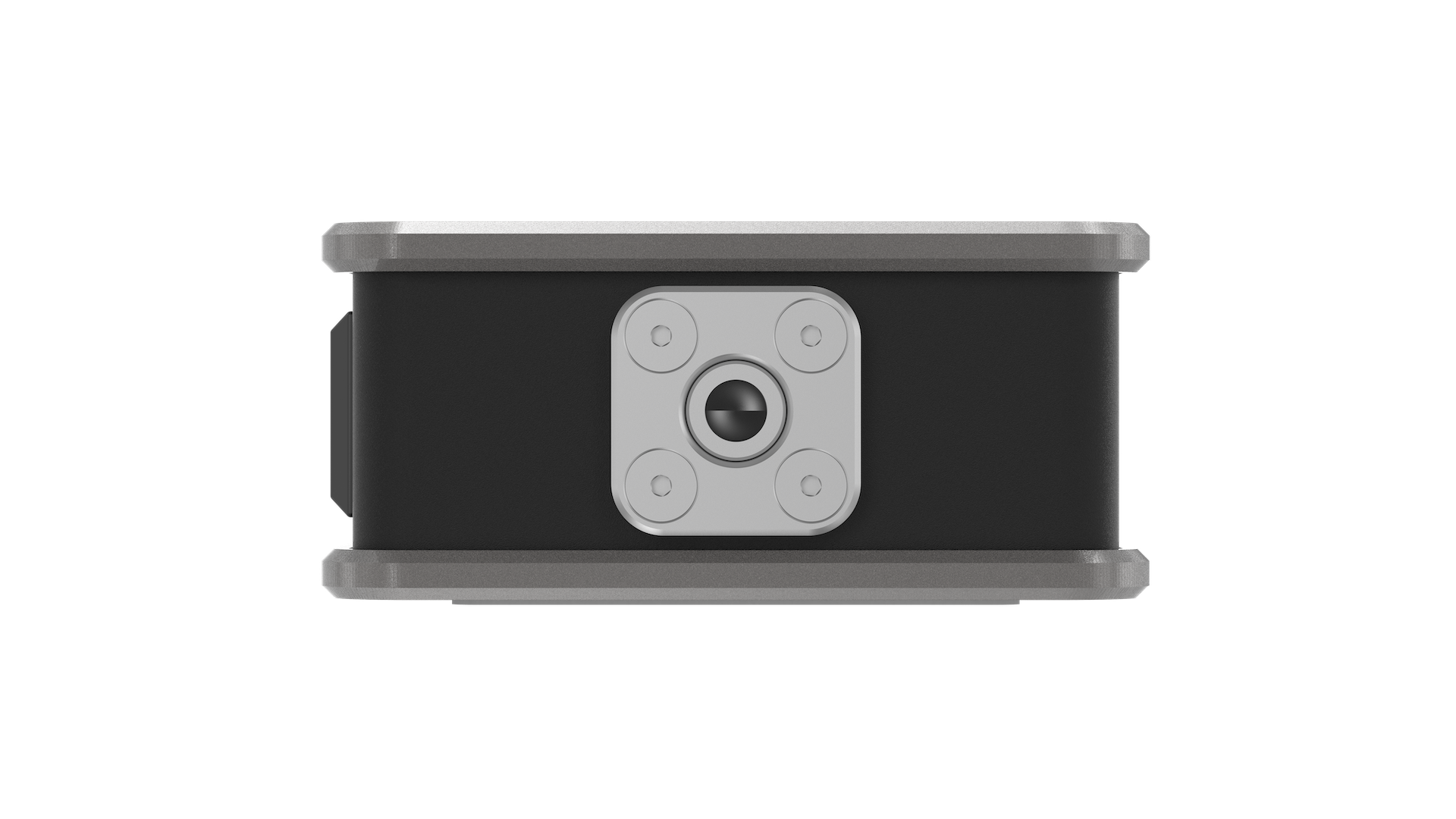

XVVSDIDA4-12G is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It feeds one source to several destinations without a router. Input is 1 x 12G/6G/3G/HD/SD SDI BNC and output is 4 x 12G/6G/3G/HD/SD SDI BNC (reclocked and amplified). Signal handling follows SMPTE 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M.

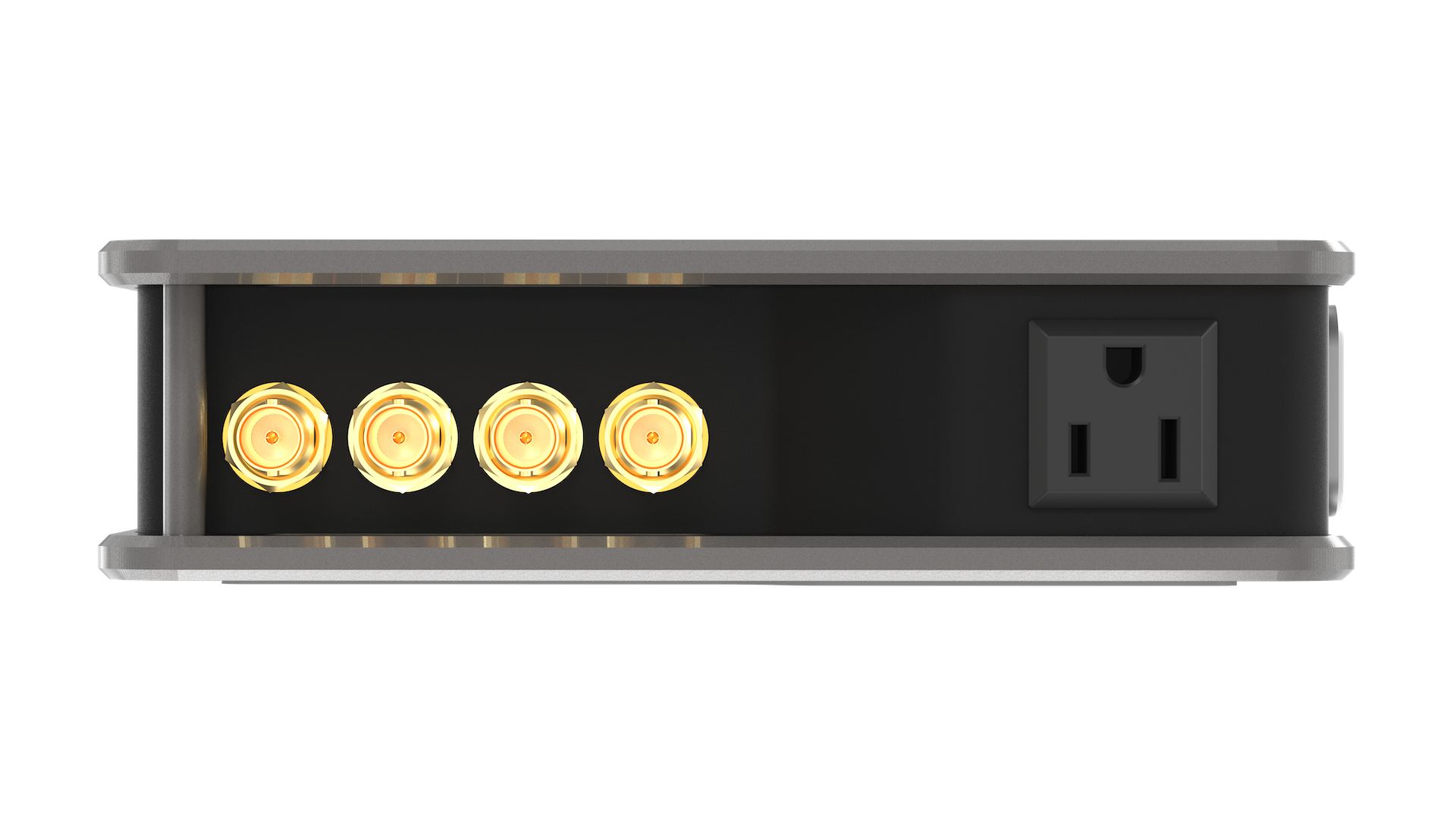

Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
