Theatrixx xVision HDMI Distribution Amplifier 1:4 Reversible Module - XVVRMHDMIDA4

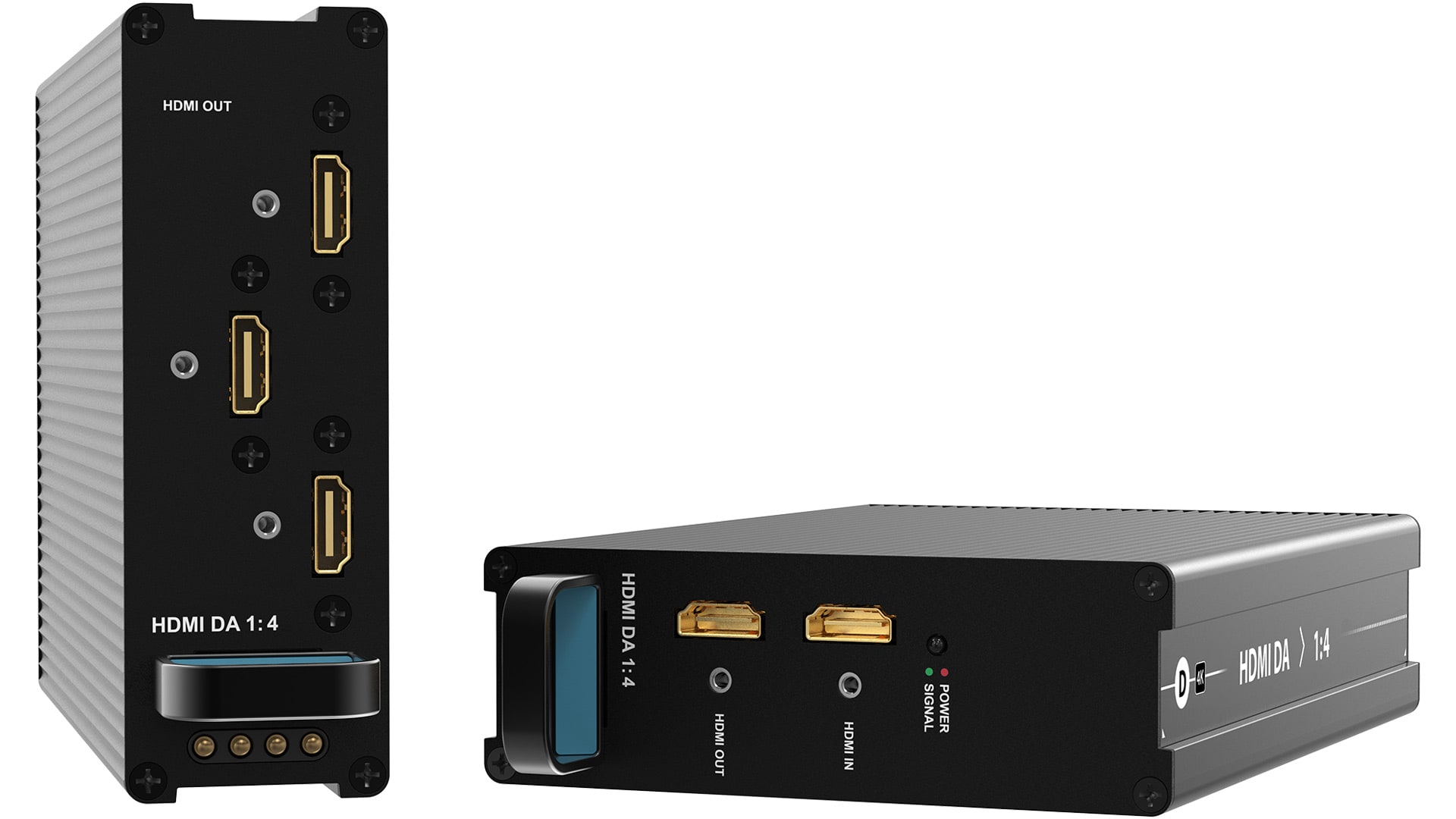

XVVRMHDMIDA4 is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It feeds one source to several destinations without a router. Input is 1 x HDMI 2.0 type A with locking system and output is 4 x HDMI 2.0 type A with locking system, (Individual downscaling per port).

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
