Theatrixx xVision Dual SDI to Dual Fiber Reversible Module - XVVRM2SDI2FIBER Rack

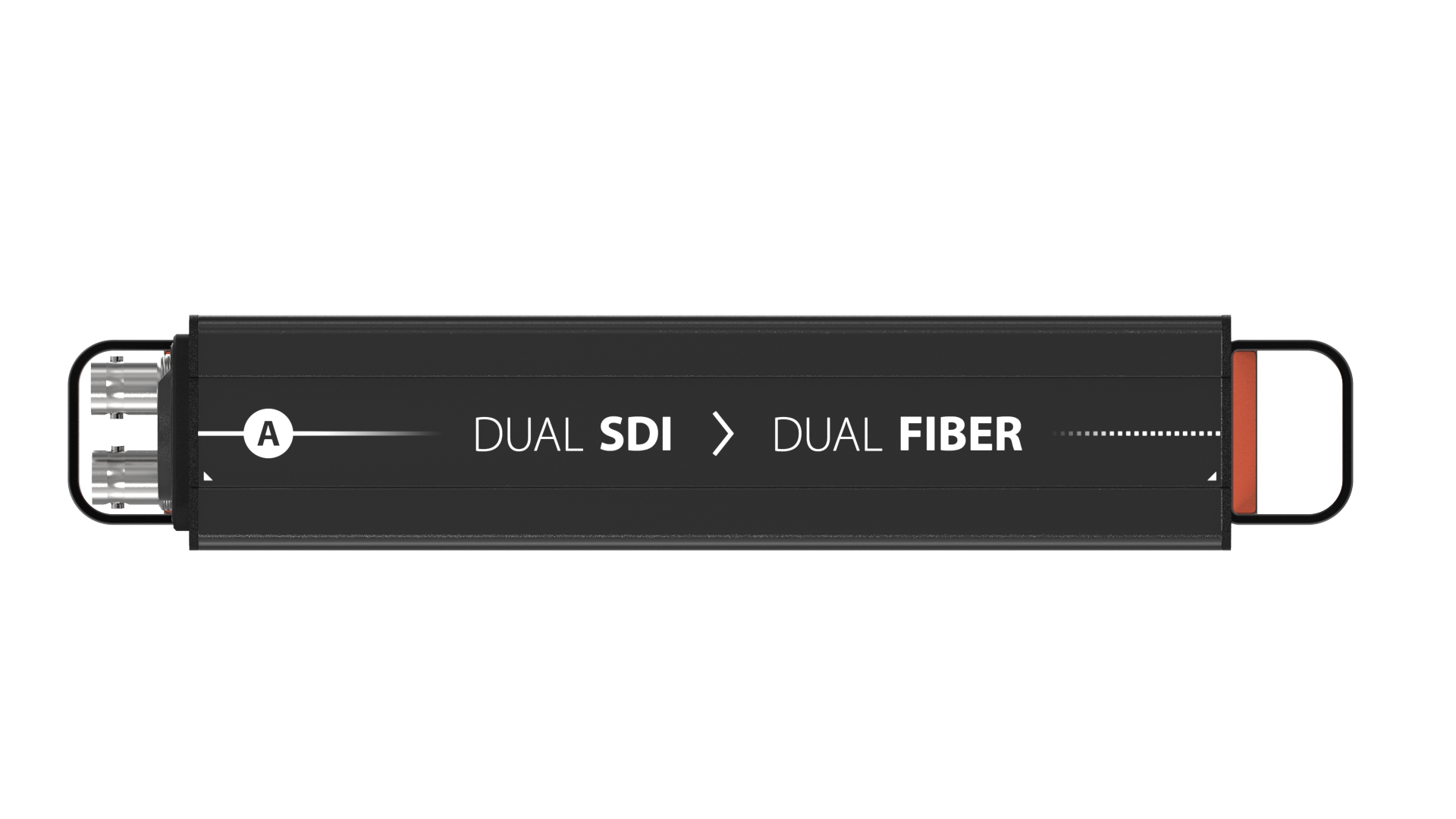

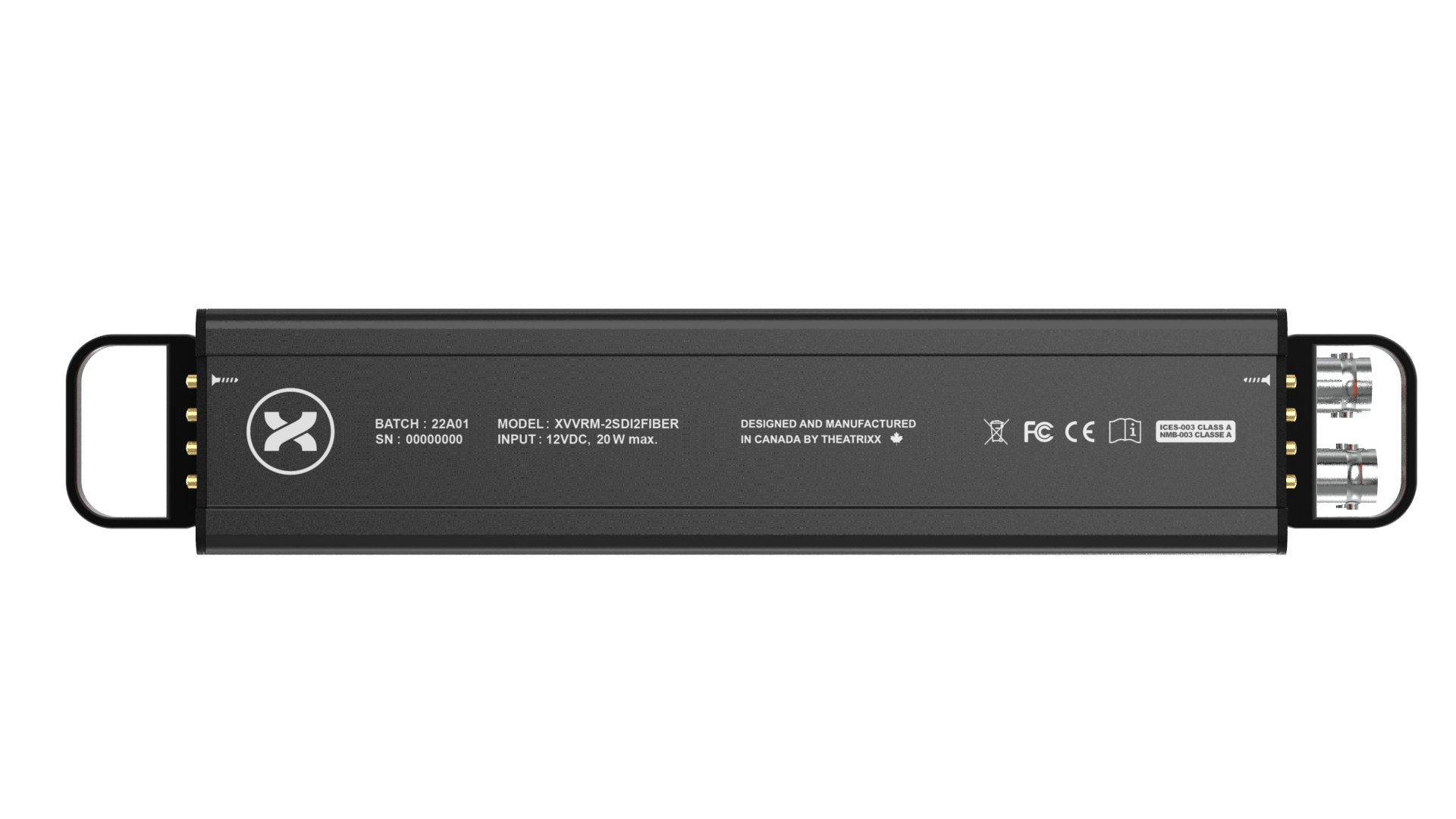

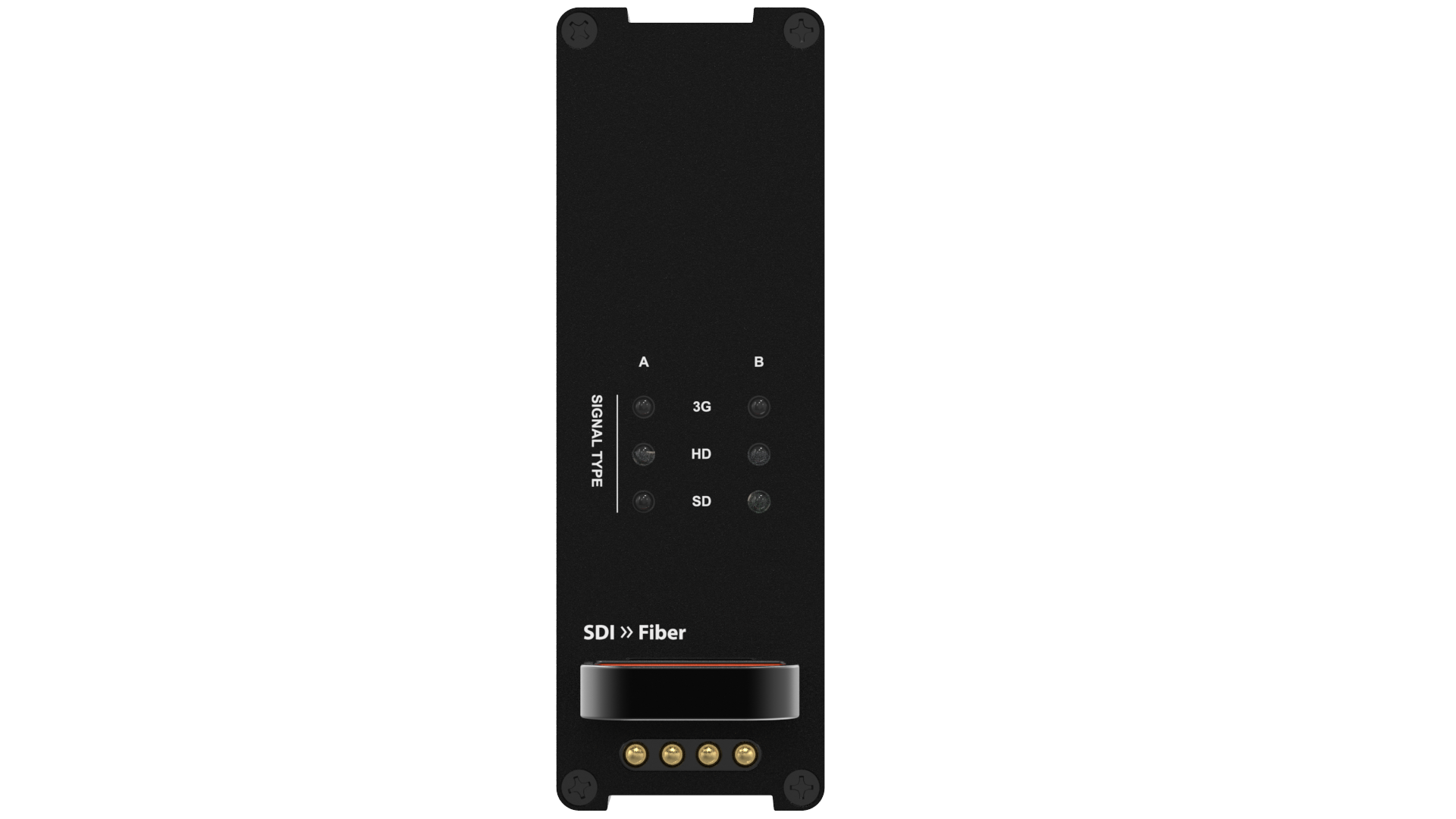

XVVRM2SDI2FIBER is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It converts dual sdi to dual fiber reversible module in one pass, with no menus or dip switches to set. Input is 2 x 3G/HD/SD SDI BNC and output is optical SDI, singlemode or multimode, on ST, opticalCON DUO or opticalCON QUAD. A reclocked and amplified loop-thru on 2 x 3G/HD/SD SDI BNC lets a local monitor tap the same feed. Signal handling follows SMPTE 425 M Level A & B, 424 M, 292 M, 259 M.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
