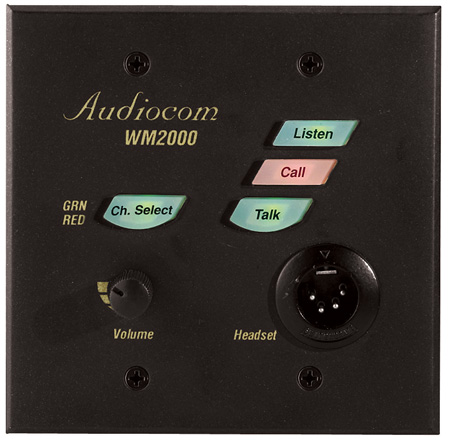

The WM-2000 intercom stations are designed for stationary, wall-mounted installation in standard two-gang electrical boxes. The WM-2000 provides switch-selectable access to either of two intercom channels. The WM-2000 is ideal when users need to access the intercom system from strategic locations where a desktop station would be unsuitable, but they do not wish to carry around a beltpack station. Since all of the intercom electronics are in the intercom station, the user need only connect a headset or telephone style handset to begin communicating. Alternatively, a headset or telephone handset can be left at the station. Headsets are available here: Telex Headsets.
The WM-2000 is identical to WM1000, except includes channel-select switch with 2-color back-light to indicate party line one or two. Mounts in a standard electrical outlet box (doublewide type). High-quality audio system with mic limiter circuit. Back-lit control buttons for low-light operation. Talk and listen buttons with momentary/latching operation. Listen volume control. Call send button with call receive indicator light. Call receive beep tone with on/off selection. Mic kill receive with on/off selection. Side tone trimmer. Quick-connect, wire clamp terminals for party line wire connections. 4-pin male XLR headsets (balanced or unbalanced microphone). Powered from party line. Local power optional. Clear-Com compatible.
Channel Select Switch
Used to switch between intercom channels one and two. The switch lights green for channel one and red for channel two.
Intercom Listen Key
Both momentary (push-to-listen) and latching (hands-free listen) are possible.
Call Key
Used to send call signals on the intercom channel and to indicate incoming calls.
Intercom Talk Key
Both momentary (push-to-talk) and latching (hands-free talk) are possible. Additionally, the WM-1000 / WM-2000 have a feature called "mic kill receive" which lets an operator at a remote master station (such as the US-2002) turn off the talk key.
Dynamic-Mic Headset Connector
4-pin male XLR connector accepts headsets with monaural headphones and either a balanced or unbalanced dynamic microphone.
Volume Control
Adjusts intercom volume to headset.
Telex Audiocom / Clear-Com Selector Switch
The selector switch sets the intercom station for compatibility with either Telex Audiocom or Clear-Com channel connector pin-outs, channel power requirements, and call signaling requirements.
Configuration DIP switches
DIP switches are provided to enable/disable the following features: Call Beep: An optional call beep tone can be used for incoming call notification. Headset Microphone Type Selection: Balanced or unbalanced microphone may be selected. DC Call Enable: This may be turned on to use the intercom station with intercom systems that use DC call signaling.
Connections Terminal Block
Used to connect intercom channel(s) and an optional local power supply.
Sidetone Trimmers
These are used to adjust the level of the station operator's own voice in the headphones.
Mounting Holes
The mounting holes fit any standard, two-gang electrical box
Clear-Com Compatible
Channels 2 CH Color Black Depth 2.3" (58.42 mm) Form Factor Wall Plate Height 4.5" (114.3 mm) Weight 16 oz (453.59 g) Width 4.6" (116.84 mm)
