Telex Wireless IFB System

FREE UPS SHIPPING

Telex TT-16
IFB Transmitter
G&G Price: $799
16 channel wireless IFB transmitter
with 3pin XLR input
1/4" unbalanced line level signal
output jack.
Audiocom/Radiocom/RTS TW compatible.

FREE UPS SHIPPING

Telex TR-16
16 Channel Broadcast Wireless IFB Talent Receiver
G&G Price: $295
16 channel synthesized
wireless talent receiver
Uses two AA batteries

FREE UPS SHIPPING

Telex CES-2 IFB Earset
G&G Price: $87
Complete IFB Earset
Includes RTV-04, CMT-98,
ET-4. 125 Ohm, 5 ft Cord, 1/8" Plug

Telex RM-S
Single Rackmount
G&G Price: $64
Single rack mount for 1/2 rack wireless
components: RE-2, FMR-500, ST-300,
and TT-16

Telex RM-D
Dual Rackmount
G&G Price: $81
Dual rack mount for 1/2 rack wireless
components: RE-2, FMR-500, ST-300,
and TT-16

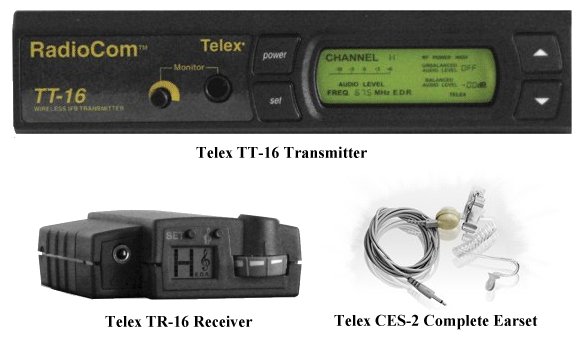

The Telex RadioCom TT-16 base station transmitter and the TR-16 beltpack talent receiver is a 16-channel synthesized wireless IFB system designed to provide a convenient wireless link to on-air talent in the studio or in the field at remote locations. Operating in the low band VHF 64-68 MHz range (TV Ch 3 and 4), the units operate reliably at distances of over 750 ft. In unoccupied television channels, up to five TT-16 transmitters will operate simultaneously within the same location.

Each TT-16 can feed to an unlimited number of TR-16 receivers, but they will all be hearing the same feed. If you need to feed different info to different personnel groups, you will need a TT-16 base station and TR-16 receivers for each dedicated personnel group.

TT-16 Features:

16-Channel Synthesized Transmitter
Accepts Standard RTS-TW, Audiocom or Clear-Com Intercom Level Inputs
Backlit LCD with Control Buttons
Balanced XLR Input Connector with Level Control & Viewable Meter
Enhanced Dynamic Range (E.D.R.) for Improved Dynamic Audio
Front Panel 1/4″ Monitor Jack with Level Control
Hi/Low Selectable RF Output Power
State-of-the-Art
Unbalanced Audio Input Connector
Wireless Link from Intercom System for Cueing, Talent IFB, & More

TR-16 Features:

16-Channel Tunability
Accepts Standard 3.5 mm Mini Stereo/Mono Ear Pieces
Backlit LCD with Control Buttons
Enhanced Dynamic Range (E.D.R.) for Improved Dynamic Audio
High Frequency Boost Compensates for High Frequency Loss When Used with Long Acoustic Tubes
Runs on Two Standard AA batteries

TT-16 Specs:

Frequency Range: 64 - 68 MHz (TV 3 & 4)
RF Power Switch: 50mW 'HI', 5mW 'Low'
Antenna: 1/4 wave telescoping omnidirectional
Modulation: FM +/- 25 KHz deviation
AGC Range: 30dB
Signal to Noise Ratio: Normal -58dB E.D.R. Enabled -77dB
Audio Input: XLR (A3F) or 1/4 phone jack
Maximum Deviation: 25 kHz
Power Requirements: 13 VAC 60Hz @ 300ma or, 12-24 VDC @ 300mA
Dimensions: (HWD) 1.25″ x 7.25″ x 6.875″ 4.5cm x 19.2cm x 15cm
FCC ID: B5DM524

TR-16 Specs

Frequency Range: 64-68 MHz (TV 3 & 4)
Frequency Response: 100Hz-10KHz
Modulation: FM +/- 25 KHz deviation
Sensitivity: 0.5uV typical, 1.0uV maximum
Signal to Noise Ratio: Normal -58dB
Signal to Noise Ratio: E.D.R. Enabled -77dB
Distortion: <2% T.H.D.
Audio Output: @ 10% Distortion
Into 8ohms: 2.0V/15mW 3.0V/80mW
Into 32ohms: 2.0V/10mW 3.0V/50mW
Antenna: Omnidirectional in earphone cord
Earphone Connector: 3.5mm stereo or mono
Power Requirements: 2 (AA) Batteries
20 Hours Alkaline
16 Hours NiMH
8 Hours NiCAD
Dimensions: (HWD) 4″ x 2.75″ x 1″ (101mm x 70mm x 25mm)
FCC: Complies with Part 15
