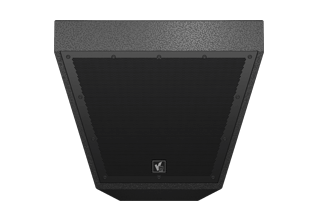

Tannoy VQ 85DF Mid-High Loudspeaker
The VQ 85DF is a down-firing mid-high loudspeaker for high performance installations, built on a Dual Concentric driver with a 3.5 inch diaphragm compression driver. Its coverage pattern is the reason to choose it over the 64DF in the same array position.
Power handling is 200 W continuous and 800 W peak. Cabinets tight pack into arrays, so throw and coverage are adjusted by adding modules rather than by changing to a different cabinet.
- Frequency response (-3 dB)400 Hz - 23 kHz
- Frequency range (-10 dB)350 Hz - 27 kHz
- Sensitivity (1 W @ 1 m)111 dB
- Dispersion (-6 dB)80 x 50 degrees
- CrossoverSingle amplified - 7 kHz (passive) Bi-amp - 7 kHz (active)
| Frequency response (-3 dB) | 400 Hz - 23 kHz |
|---|---|
| Frequency range (-10 dB) | 350 Hz - 27 kHz |
| Sensitivity (1 W @ 1 m) | 111 dB |
| Dispersion (-6 dB) | 80 x 50 degrees |
| Driver components | N/A MF/HF - dual concentric compression driver loaded into single PSW waveguide |
| Crossover | Single amplified - 7 kHz (passive) Bi-amp - 7 kHz (active) |
| Directivity factor (Q) | 13.3 |
| Directivity index (DI) | 11.2 |
