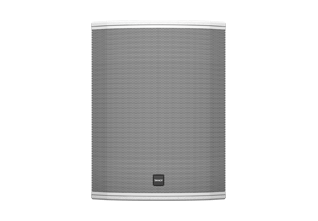

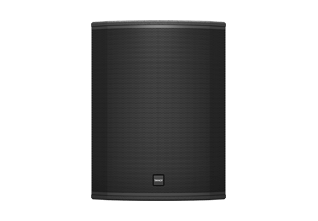

Tannoy VX 15Q Point-Source Loudspeaker
The Tannoy VX 15Q is a 15-inch PowerDual point-source loudspeaker behind a Q-Centric waveguide, giving precise 75 by 40 degree coverage with high forward gain. It delivers high SPL at low distortion for bars, clubs and mid-size portable PA, and can run passive or bi-amped.
The trapezoidal cabinet works as a main, FOH, floor monitor or delay, with a VTH pole blanking plate, optional yokes and eight M10 flying inserts certified above a 5:1 safety ratio. It is braced 18 mm plywood in semi-matt black with a steel grille and Integrip handles, and handles 400 W continuous, 1,600 W peak.
- Frequency response (Full range mode)70 Hz - 25 kHz ±3 dB 58 Hz - 30 kHz -10 dB
- Sensitivity99 dB (1 W @ 1 m))
- Nominal dispersion75° H x 40° V @ -6 dB points
- Directivity factor (Q)12
- Directivity index (DI)10.8
| Frequency response (Full range mode) | 70 Hz - 25 kHz ±3 dB 58 Hz - 30 kHz -10 dB |
|---|---|
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 12 |
| Directivity index (DI) | 10.8 |
| Passive | 400 W continuous, 1,600 W |
| Bi-amp | LF: 400 W continuous, 1,600 W HF: 80 W continuous, 320 W peak |
| Sensitivity | 99 dB (1 W @ 1 m)) |
| Crossover Type | Passive / Bi-amp switchable |
