Tannoy VXP 15HP

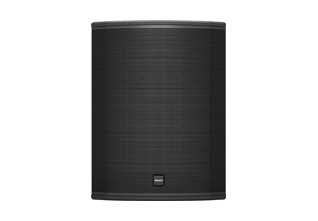

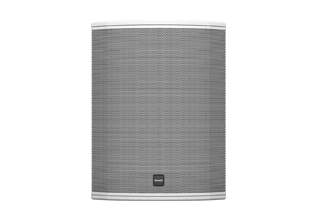

The VXP 15HP puts a single 380 mm (15 inch) PowerDual driver in a compact plywood cabinet with its own amplification. It is the high output member of the VXP line, for portable rigs and installs that need reach from one box.\n\nAmplification is 1,600 W of Lab.gruppen IDEEA Class D, on board. The PowerDual driver behaves as a point source so multiple cabinets stay phase coherent, and dispersion is held to 75 degrees for forward projection rather than room excitation. Black and white finishes are available.
- Frequency response (Full range mode)60 Hz - 25 kHz ±3 dB 47 Hz - 30 kHz -10 dB
- Frequency response (Hi-pass mode)100 Hz - 25 kHz ±3 dB 80 Hz - 30 kHz -10 dB
- Dynamic range106 dB
- Nominal dispersion75° conical @ -6dB point
- Directivity factor (Q)9.7
| Frequency Response (Full range mode) | 60 Hz - 25 kHz ±3 dB 47 Hz - 30 kHz -10 dB |
|---|---|
| Frequency Response (Hi-pass mode) | 100 Hz - 25 kHz ±3 dB 80 Hz - 30 kHz -10 dB |
| Nominal Dispersion | 75° conical @ -6dB point |
| Directivity Factor (Q) | 9.7 |
| Directivity Index (DI) | 9.9 |
| Dynamic Range | 106 dB |
| Maximum SPL | 131 dB peak |
| Crossover Type | Passive 1.3 kHz |
