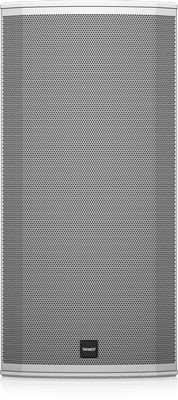

Tannoy VX 12.2Q
The VX 12.2Q pairs a PowerDual full range driver with a separate low frequency driver for extended bass response, behind a Q-Centric waveguide that tightens vertical or horizontal pattern control depending on cabinet orientation.\n\nPower handling is 500 W continuous and 2,000 W peak. The PowerDual arrangement keeps the cabinet behaving as a point source, so several of them array without the phase problems of a conventional two-way. Black and white finishes are available.
| Frequency response | 70 Hz - 25 kHz ±3 dB 55 Hz - 30 kHz -10 dB |
|---|---|
| Nominal dispersion | 75° H x 40° V @ -6 dB points |
| Directivity factor (Q) | 13 |
| Directivity index (DI) | 11.1 |
| Passive | 500 W continuous, 2,000 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
| Bi-amp | LF: 123 dB continuous, 129 dB peak HF: 127 dB continuous, 133 dB peak |
| Crossover Type | Passive / Bi-amp switchable |
