Swit Vocal M V4 Wireless Dual System
w/Lavalier & Plug-on Transmitter

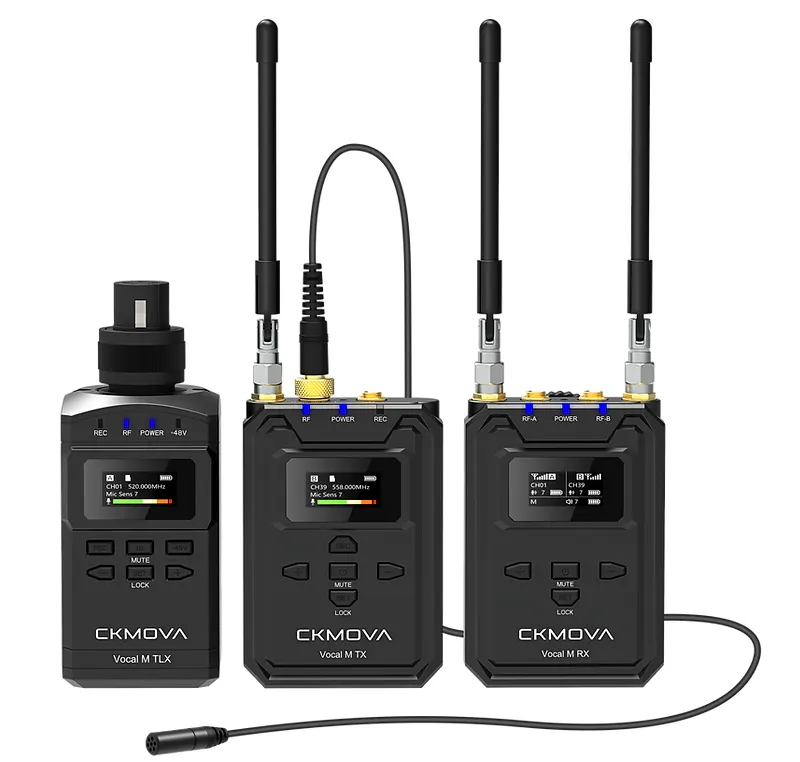

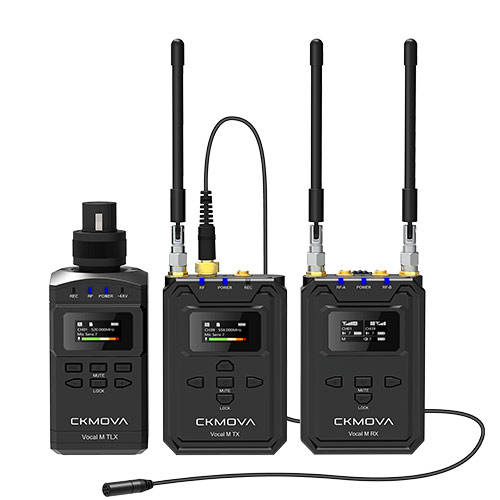

Swit's CKMOVA Vocal M V4 is a 2-person wireless microphone system with recorder up to 492ft operating range. It includes one 3-pin XLR Plug-on transmitter, one body-pack transmitter and one receiver. The 3-pin XLR (Female) Plug-on transmitter provides +48V phantom power, gives user an options to use condenser mic or mixer.

OLED Screen
Equipped with an OLED screen, users can easily monitor of battery status, volume level, audio output mode and more connective information.

MicroSD Card for Recording
With a MicroSD slot on transmitter, the system can record the original audio data for later use.

Mute Button on Both transmitter and receiver
The mute button on both transmitter and receiver for convenience to operate.

Long Battery Life
With a built-in rechargeable battery that lasts up to 12 hours, the Vocal M V2 is perfect for long recording sessions.

Real-time Monitoring
Users have the option to select between the built-in-mic and external mic, and features the 3.5mm headphone port allows for easy real-time monitoring.

Mic & Line Input
Both mic input and line input are compatible, making this system versatile and suitable for a variety of recording situations.

+48V phantom power 3-pin XLR connector
The 3-pin XLR Plug-on Transmitter provides +48V phantom power, gives users an options to use condense mic or mixer.

Auto/Manual Pairing
Auto or manual pairing function is for adaptability to different conditions.

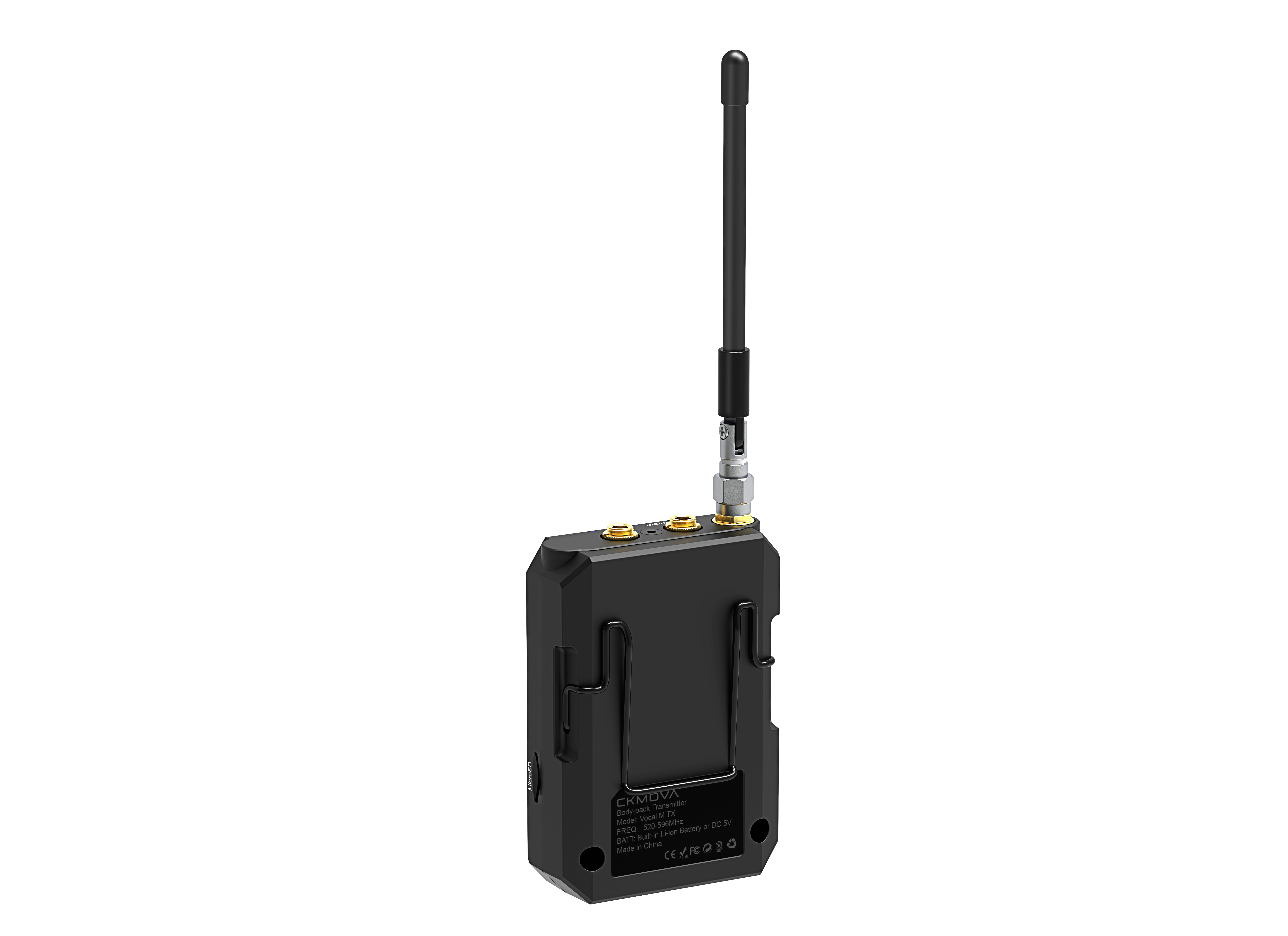

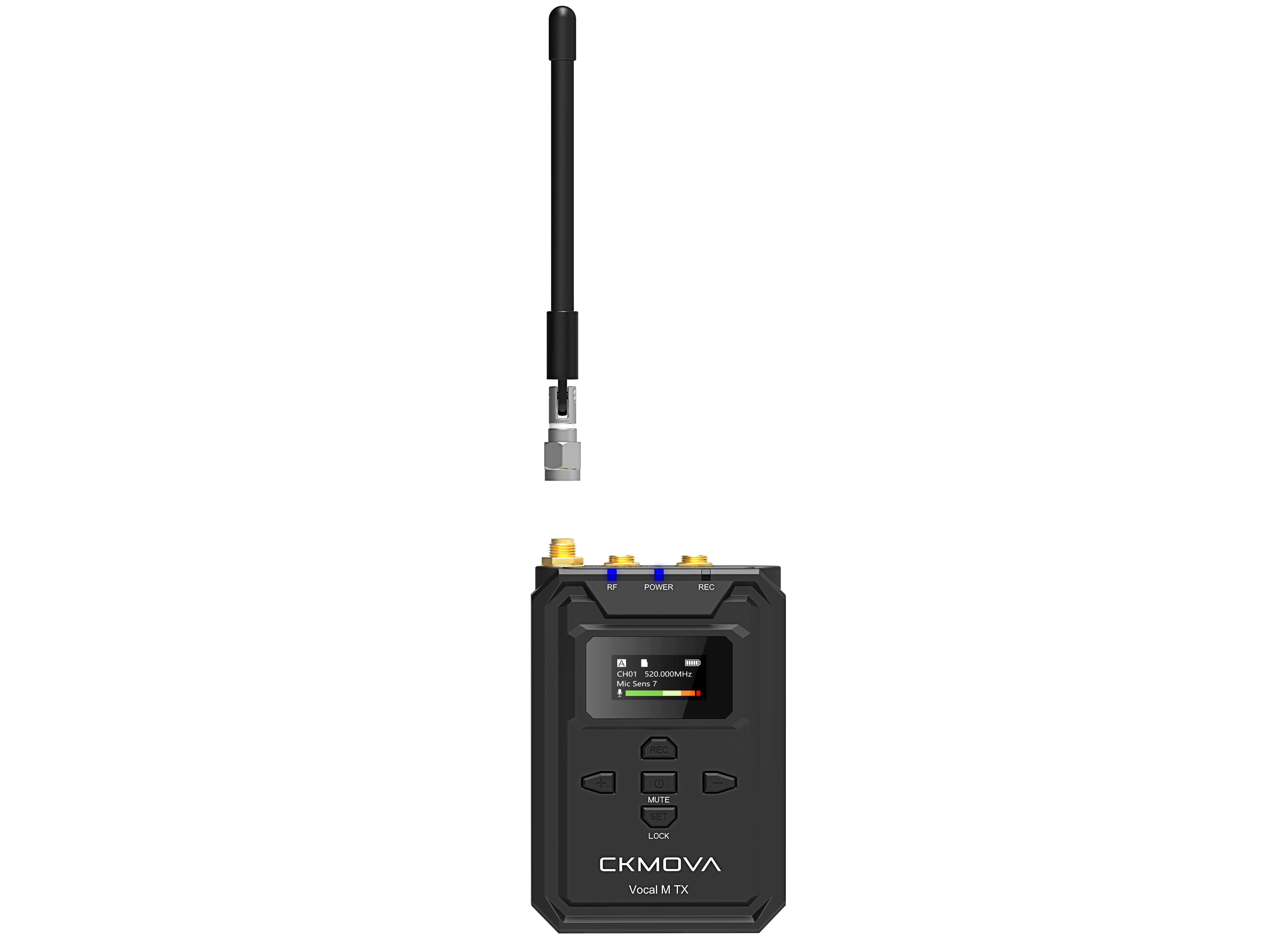

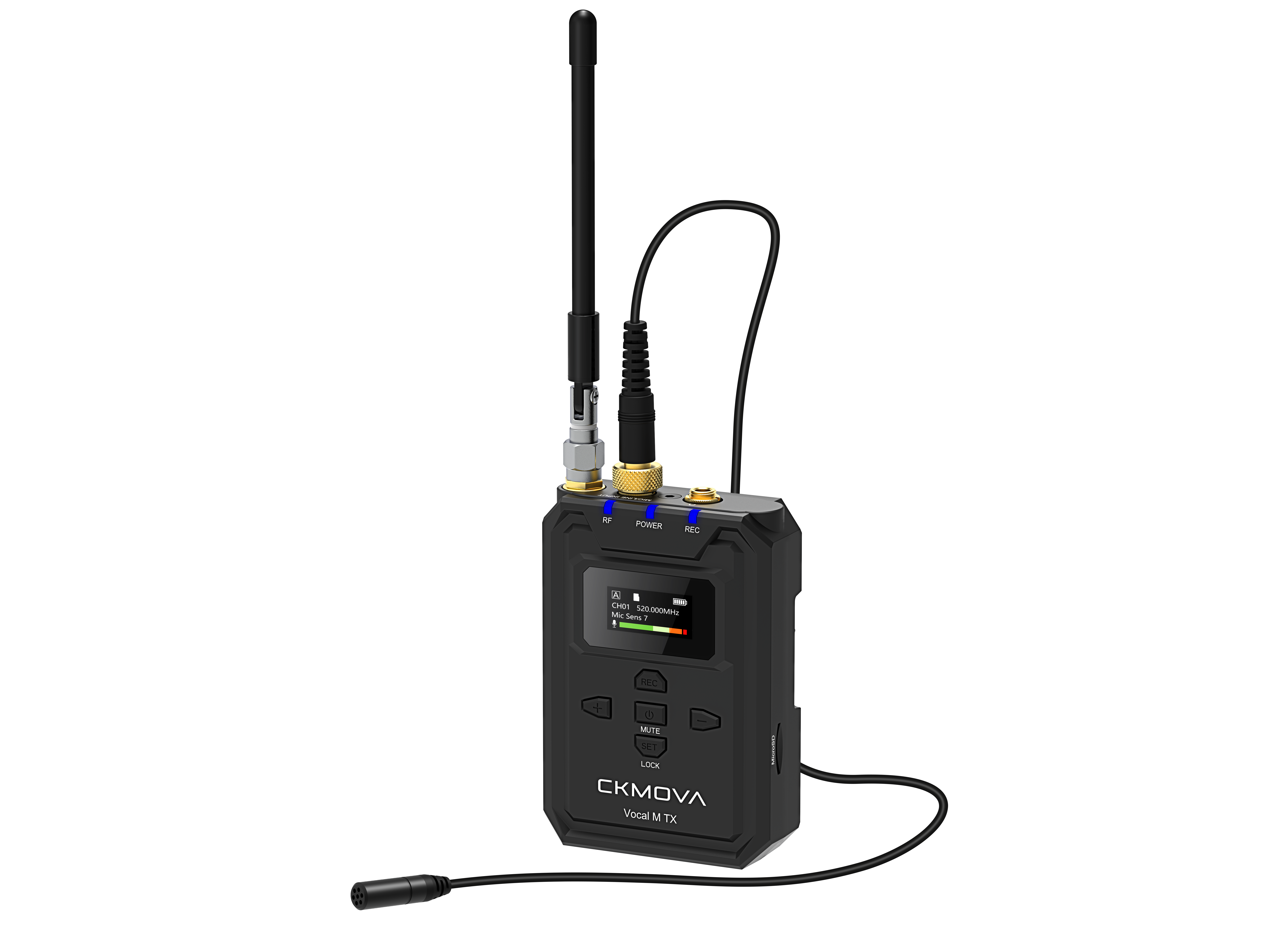

Transmitter (Body-pack):

• 1x Locking 3.5mm TRS Female Mic/Line Input
• 1x Locking 3.5mm Headphone Monitor Jack
• 1x USB-C Port
• 1x MicroSD Card Slot

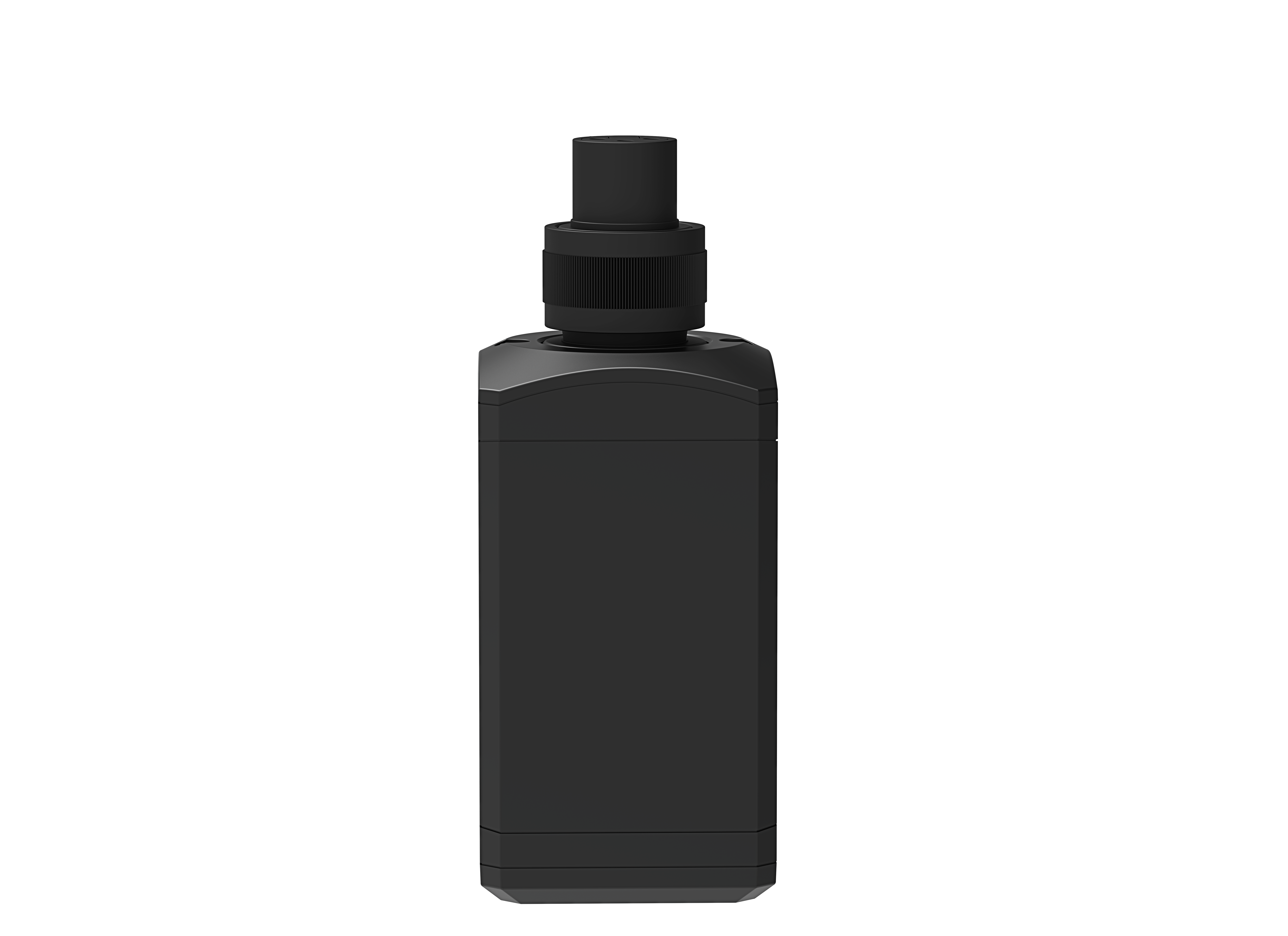

Transmitter (Plug-on) :

• 1x 3-pin Female XLR Plug-in Jack
• 1x Locking 3.5mm monitor Headphone Jack
• 1x USB-C port
• 1x MicroSD card slot

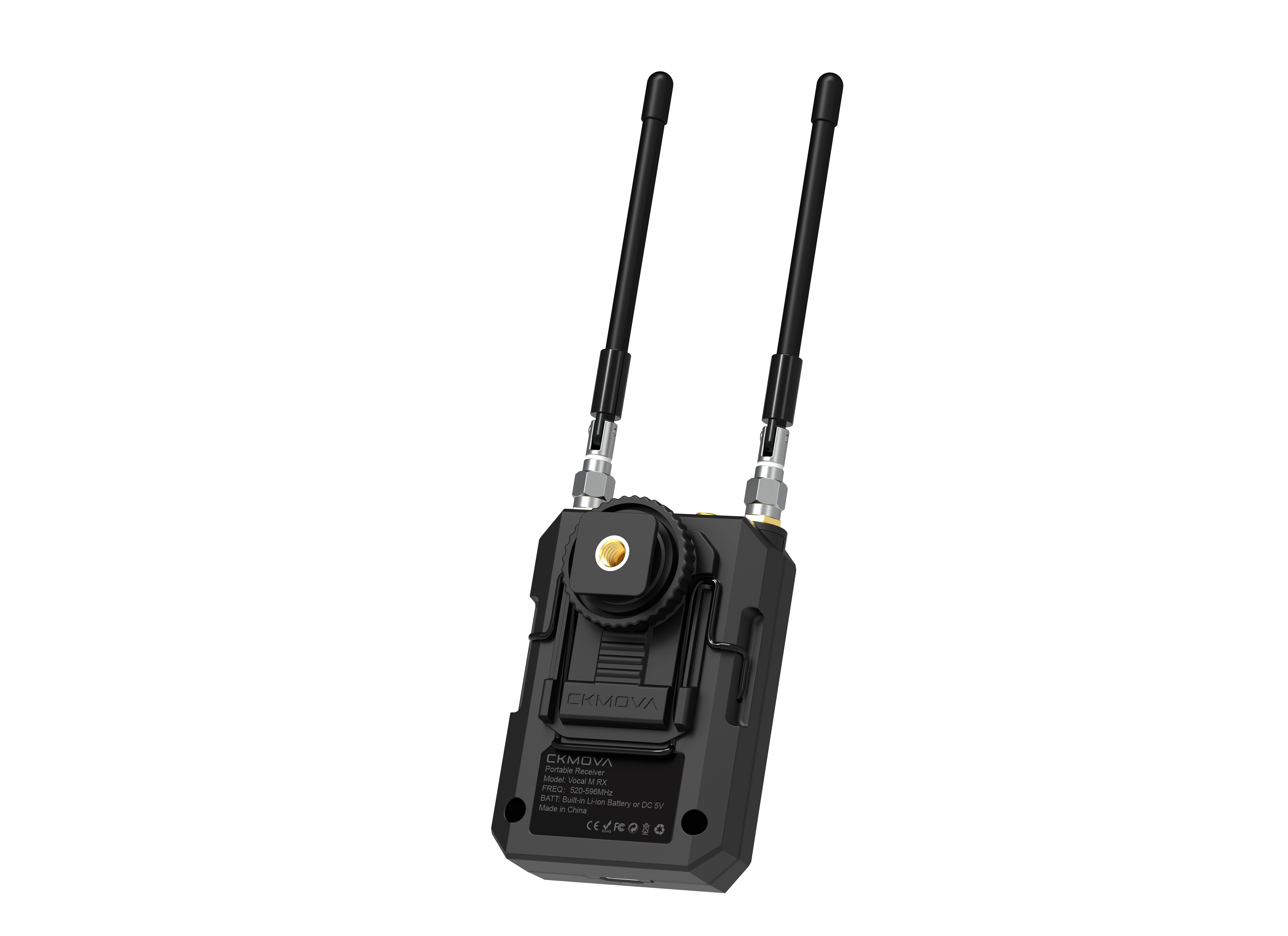

Receiver (Rx):

• 1x Locking 3.5mm TRS Female Local Mic Input
• 1x Locking 3.5mm TRS Female Audio Output Jack
• 1x Locking 3.5mm Headphone Monitor Jack

Key Features:

• Frequency Range: 535-585MHz
• Operating Range: 492ft (LOS)
• 2x Transmitters (1x bodypack Transmitter and 1x Plug-on Transmitter) and 1x Receiver
• +48V phantom power Jack on one Transmitter (3-pin Female XLR)
• Built-in Mic & External Mic selectable (Bodypack Transmitter)
• Mic Input & Line Input compatible (Bodypack Transmitter)
• Dual-Channel Receiver
• Color OLED display
• 12 hours battery life
• 1/4 wavelengh antenna, detachable and 360° switchable
• Mono & Stereo output selectable
• Low cut filter (40Mhz, 80Mhz & 120Mhz) switchable
• High frequency boost (1dB/2dB/3dB/4dB)
• Bass & Treble recording mode
• MicroSD card slot on Transmitter
• Mute & key Lock function buttons on both transmitter & receiver
• Locking 3.5mm TRS connections

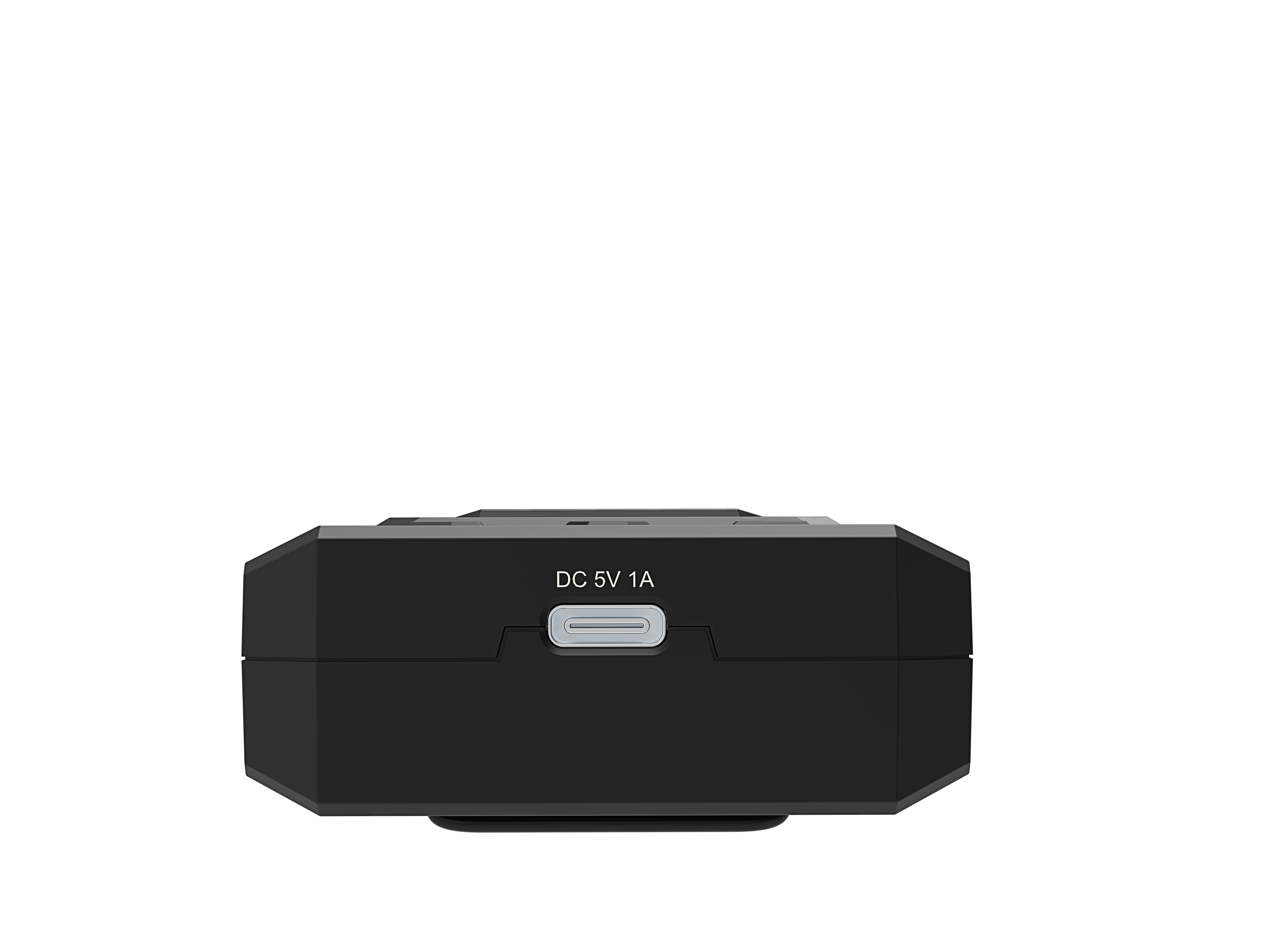

• USB-C charging slot
• Durable aluminum alloy construction

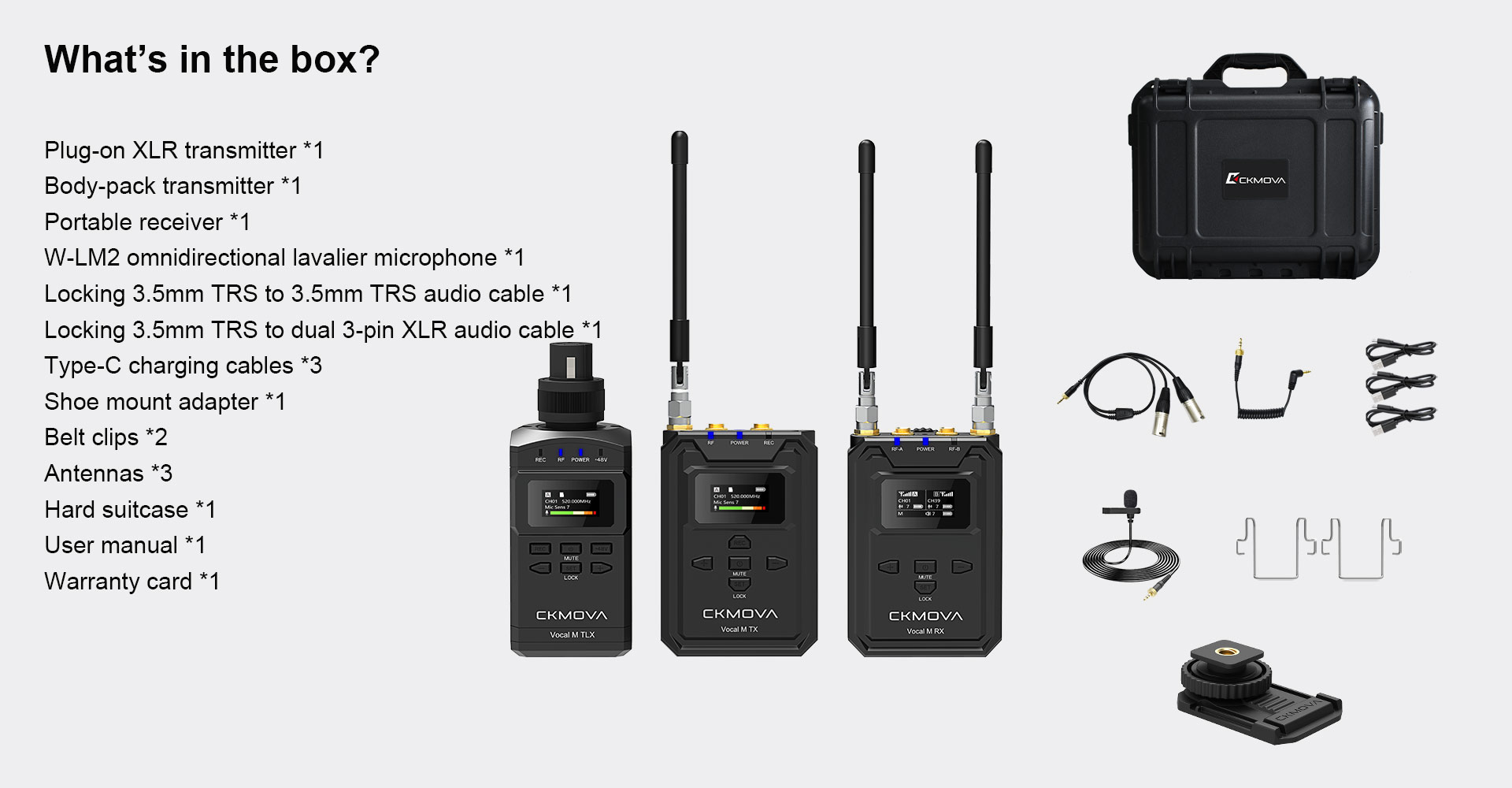

Includes:

• 1x Plug-on XLR Transmitter
• 1x Body-pack Transmitter
• 1x Portable Receiver
• 1x W-LM2 omnidirectional lavalier microphone
• 1x Locking 3.5mm TRS to 3.5mm TRS audio cable
• 1x Locking 3.5mm TRS to 3-pin XLR audio cable
• 3x USB Type-C charging cable
• 1x Hard suitcase
• 2x Belt clips
• 1x Shoe mount adapter
• 3x Antennas
• 1x User Manual
• 1x Warranty Card
