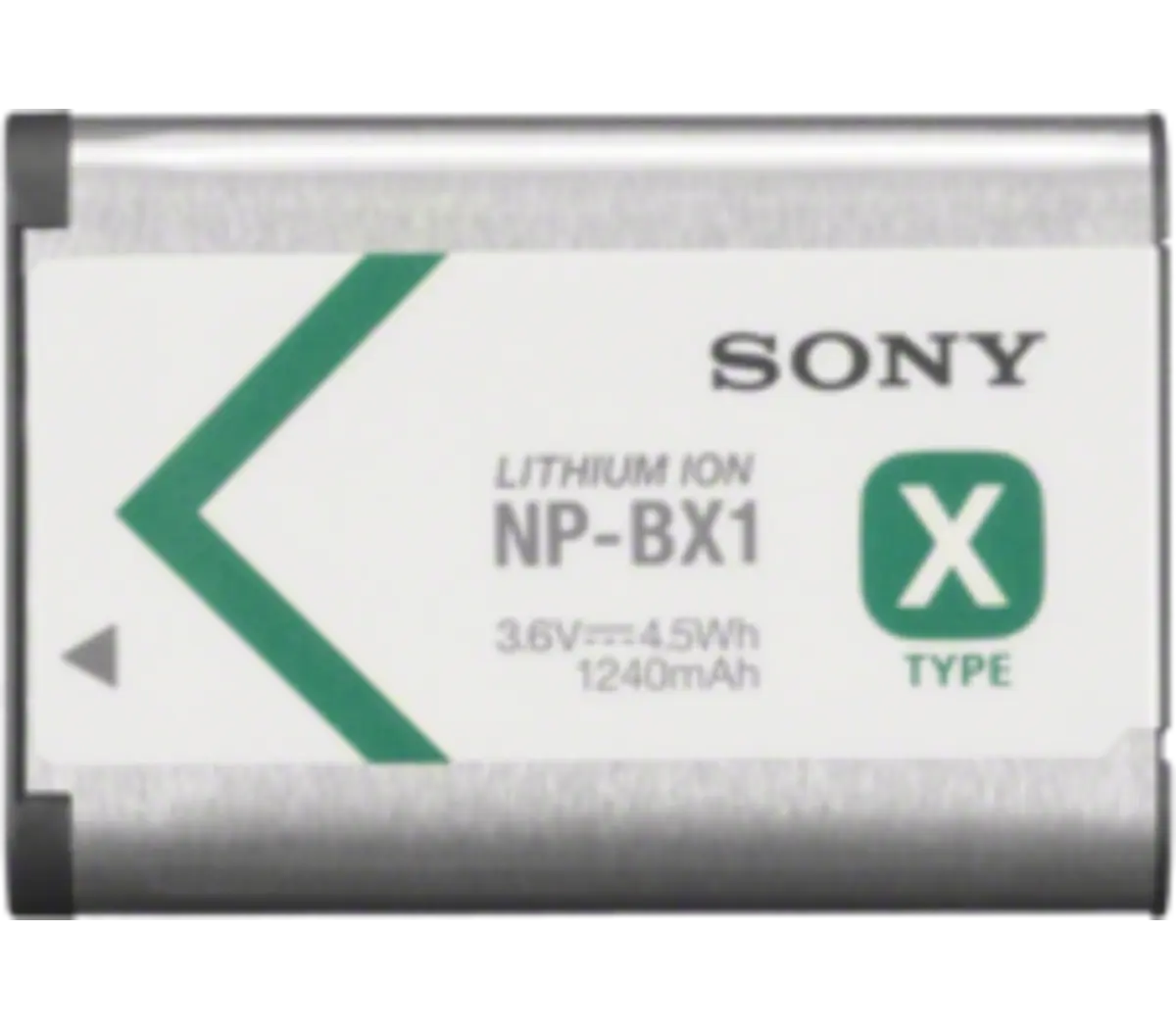

Sony NP-BX1 X-Type Rechargeable Battery Pack

The NP-BX1 is the X-type lithium-ion battery used across Sony's RX100 series of compact cameras, the ZV-1 line and Action Cam camcorders. It is small, 25 g and under 10 mm thick, so spares disappear into a pocket, and with a minimum 4.5 Wh (1240 mAh) capacity a second pack roughly doubles a day's shooting on those cameras.

Maximum output is DC 4.2 V and the pack is rated for operation from -10 to +60 degrees C. Dimensions are about 29.9 x 9.2 x 42.7 mm. This is the /M8 retail version.

Battery TypeLITHIUM-ION X Type
Battery CapacityMinimum: 4.5Wh (1240mAh)
Output VoltageDC 4.2V (max)
Weight (Approx.)0.9 oz (25 g)
Dimensions (Approx.)1 3/16" x 3/8" x 1 11/16" (29.9 x 9.2 x 42.7mm)
Operating Temperature-10℃ to +60℃ (+14°F to +140°F)
Storage Temperature-10℃ to +45℃ (+14°F to +113°F)
