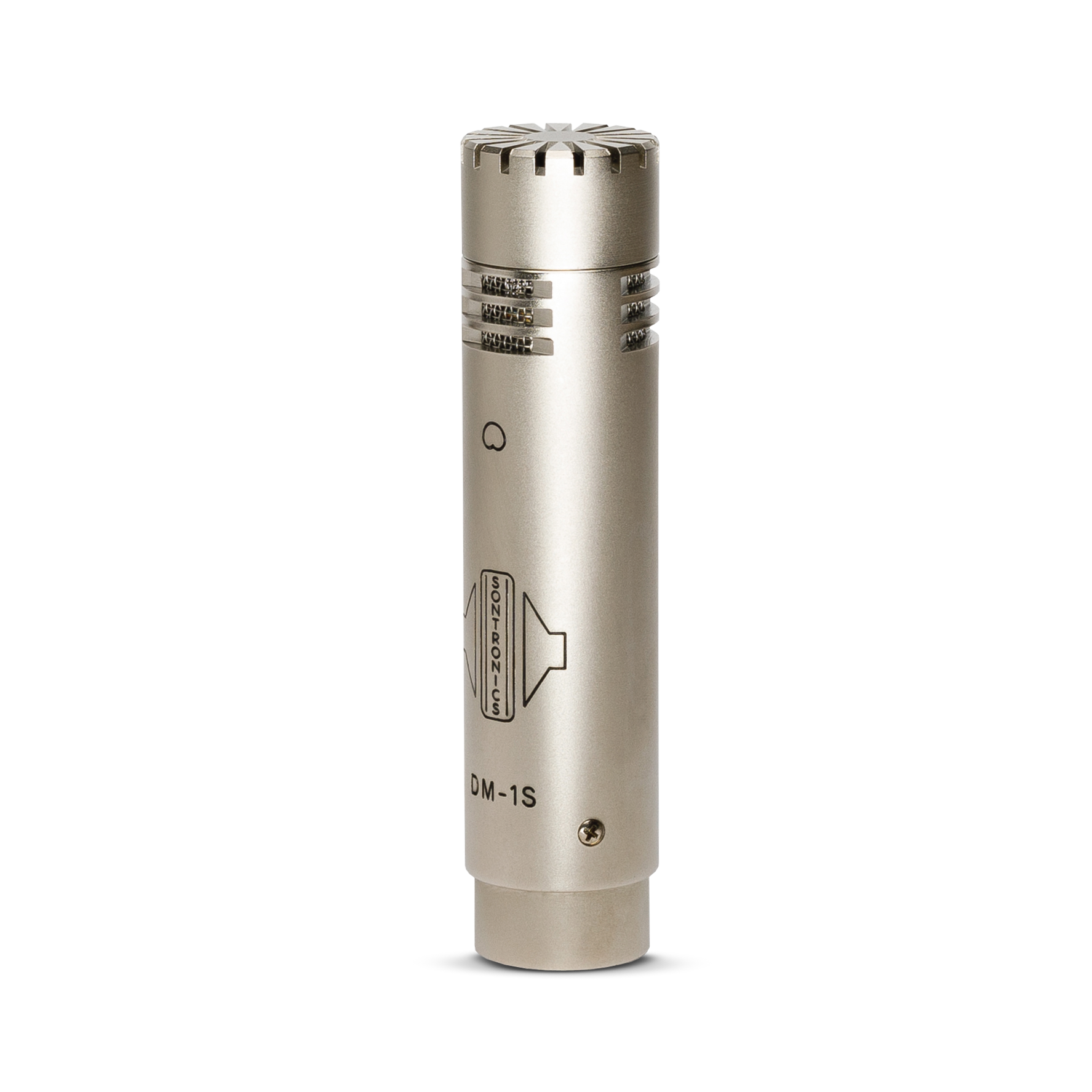

Sontronics DM-1S Snare Drum Condenser Microphone
The DM-1S is a small-diaphragm cardioid condenser cut down to 91 mm so it fits between a hi-hat and a rack tom without becoming a hazard. A condenser on snare buys you the stick attack and the wire rattle that a dynamic rounds off, and the -10 dB pad takes the capsule to 135 dB, which is where a rimshot lives.
Response runs 30 Hz to 20 kHz with sensitivity at 16 mV/Pa and self-noise at 14 dBA. Impedance is under 200 Ohms into a 3-pin XLR on 48 V phantom. It weighs 100 g, so a clip on the hoop holds it without fighting the stand. Supplied with its mic clip. It is also the snare mic in Sontronics' DRUMPACK and DRUMPACK PLUS sets.
| Microphone type | Small-diaphragm condenser for snare and percussion |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 30 Hz to 20 kHz |
| Sensitivity | 16 mV/Pa |
| Impedance | 200 Ohms or less |
| Max SPL | 135 dB with -10 dB pad engaged (0.5% THD at 1 kHz) |
| Equivalent noise level | 14 dB (A-weighted) |
| Pad | 0 dB, -10 dB |
| Connector | 3-pin XLR |
| Power | 48 V phantom power required |
| Dimensions | 91 x 22 x 22 mm |
| Included | Microphone, mic clip |
| Order Code | STDM1S-U |
