Shure BLX14R SM35 Rack-Mount Wireless Headset
The BLX14R/SM35 is a rack-mount wireless headset rig for presenters, worship leaders, and performers who need hands-free voice and room to move. It pairs the BLX4R single-channel rack receiver with a BLX1 bodypack and the SM35 headworn cardioid condenser, whose tight unidirectional pattern rejects off-axis sound to fight feedback and bleed onstage. One-touch QuickScan finds a clean channel fast, and the receiver's internal antenna diversity guards against dropouts.

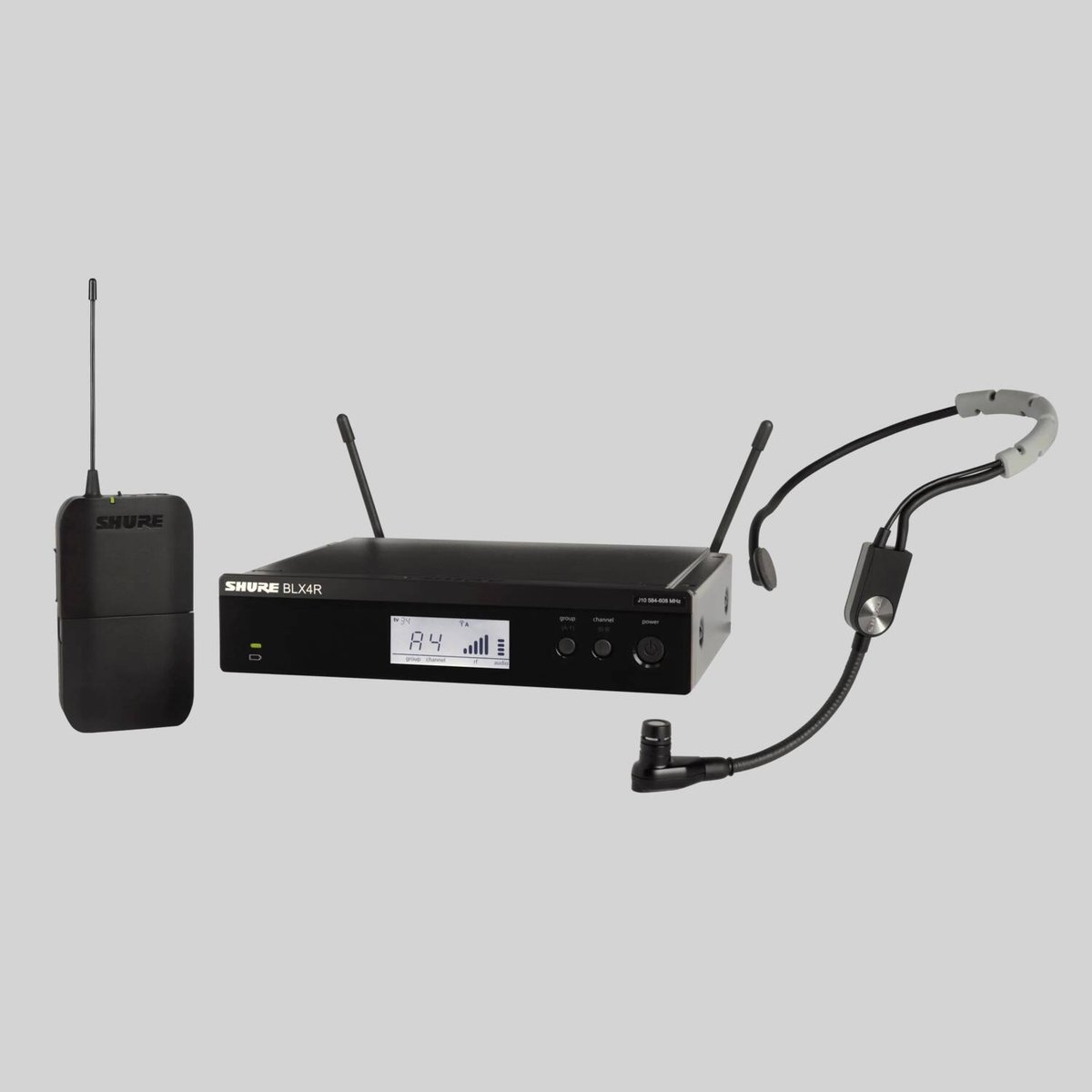

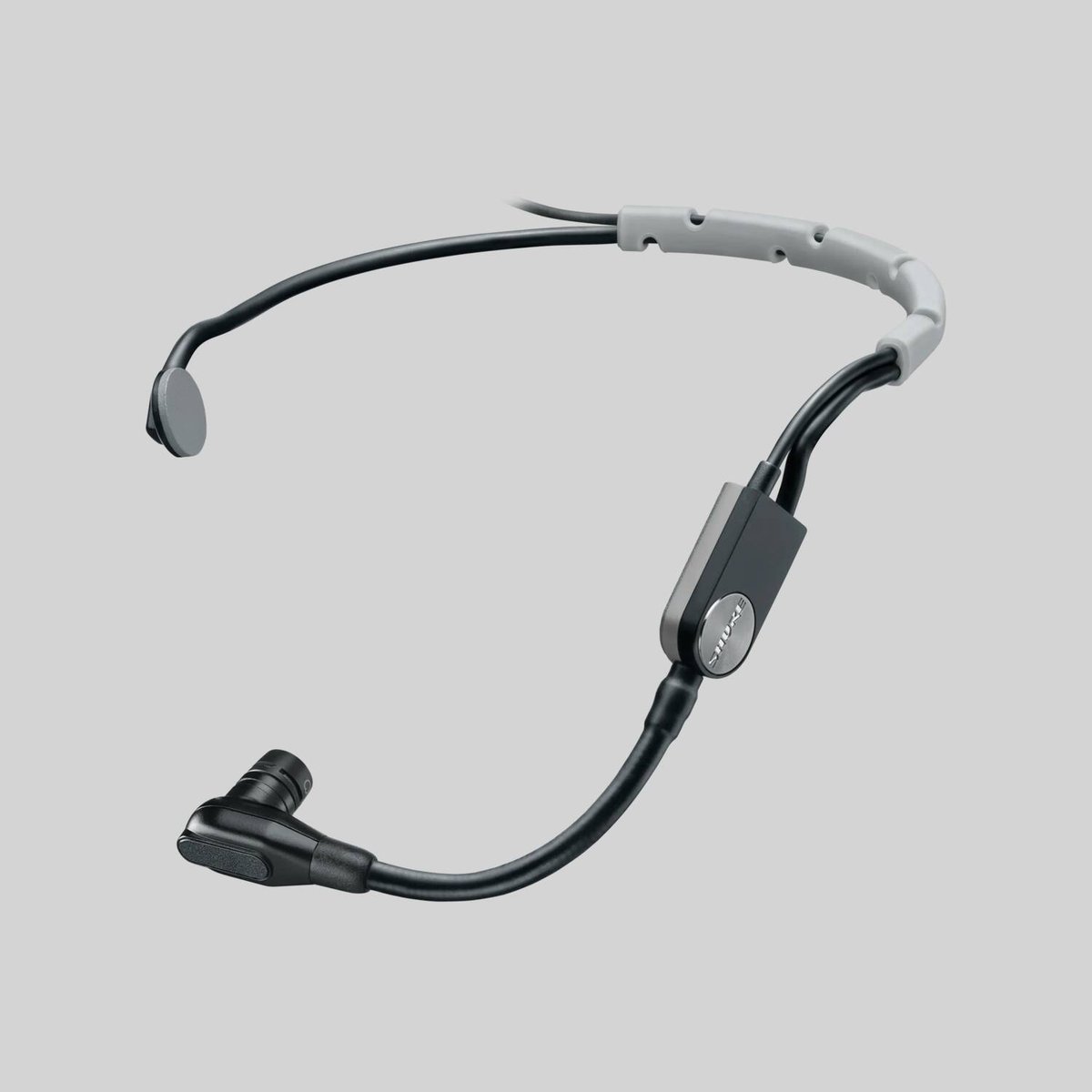

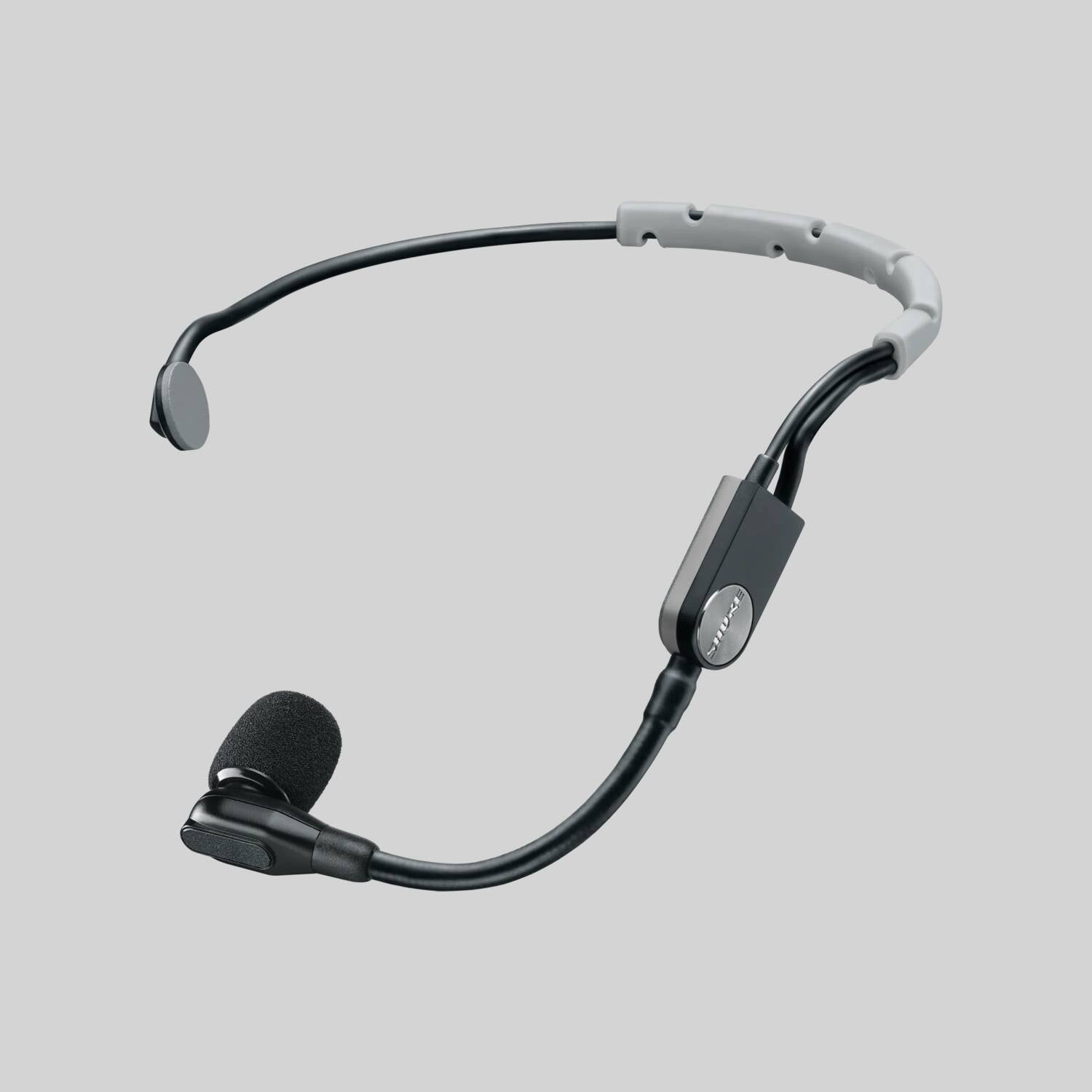

The half-rack BLX4R mounts with the included hardware and reaches up to 300 ft line of sight. The SM35's flexible gooseneck and snap-fit windscreen keep placement steady and wind noise down through a long set. The system ships with the BLX4R receiver, BLX1 bodypack transmitter, SM35 headset mic with windscreen, PS24 power supply, a clothing clip, and rack-mount hardware.
- BLX4R - Dimensions1.65 in. X 7.80 in.X 6.42 in. H x W x D
- BLX1 - Dimensions4.33 in. X 2.52 in. X 0.83 in. H x W x D
- BLX4R - Output ImpedanceXLR connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω
- BLX4R - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone)XLR connector: -20.5 dBV (into 100 kΩ load)
- BLX1 - Audio Input Levelmax: -16 dBV maximum; min (0 dB): +10 dBV maximum
| System - Working Range | 91 m (300 ft) Line of Sight |
|---|---|
| System - Audio Frequency Response | 50 to 15,000 Hz (dependent on microphone type) |
| System - Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone) | 0.5%, typical |
| System - Dynamic Range | 100 dB, A-weighted, typical |
| System - Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| System - Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX4R - Output Impedance | connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω |
| BLX4R - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone) | XLR connector: -20.5 dBV (into 100 kΩ load); 6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load) |
| BLX4R - RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| BLX4R - Image Rejection | >50 dB, typical |
| BLX4R - Dimensions | 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D |
| BLX4R - Weight | 2.2 lbs (998 g), without antennas |
| BLX4R - Housing | Molded ABS, steel |
| BLX4R - Power Requirements | 12 to 15 V DC @ 260 mA, supplied by external power supply (tip positive) |
| BLX1 - Audio Input Level | Max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| BLX1 - Gain Adjustment Range | 26 dB |
| BLX1 - Input Impedance | 1 MΩ |
| BLX1 - RF Transmitter Output | 10 mW, typical (varies by region) |
| BLX1 - Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| BLX1 - Weight | 2.6 oz. (75 g), without batteries |
| BLX1 - Housing | Molded ABS |
| BLX1 - Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| BLX1 - Battery Life | Up to 14 hours (alkaline) |
| Source | Full specifications on shure.com |

- Rack mount bracket (53A8611)
- Long rack mount bracket (53A8612)
- Link bracket (53B8443)
- Hardware kit (90AZ8100)
- Thread Adapter (31B1856)
- 2 x 1/4 wave BNC antenna (95A8699)
- 2 x BNC bulkhead adapter (95A8994)
- Zippered vinyl bag (95B2313)
- 2 x 22 in BNC cable (95K2035)
- Power supply
