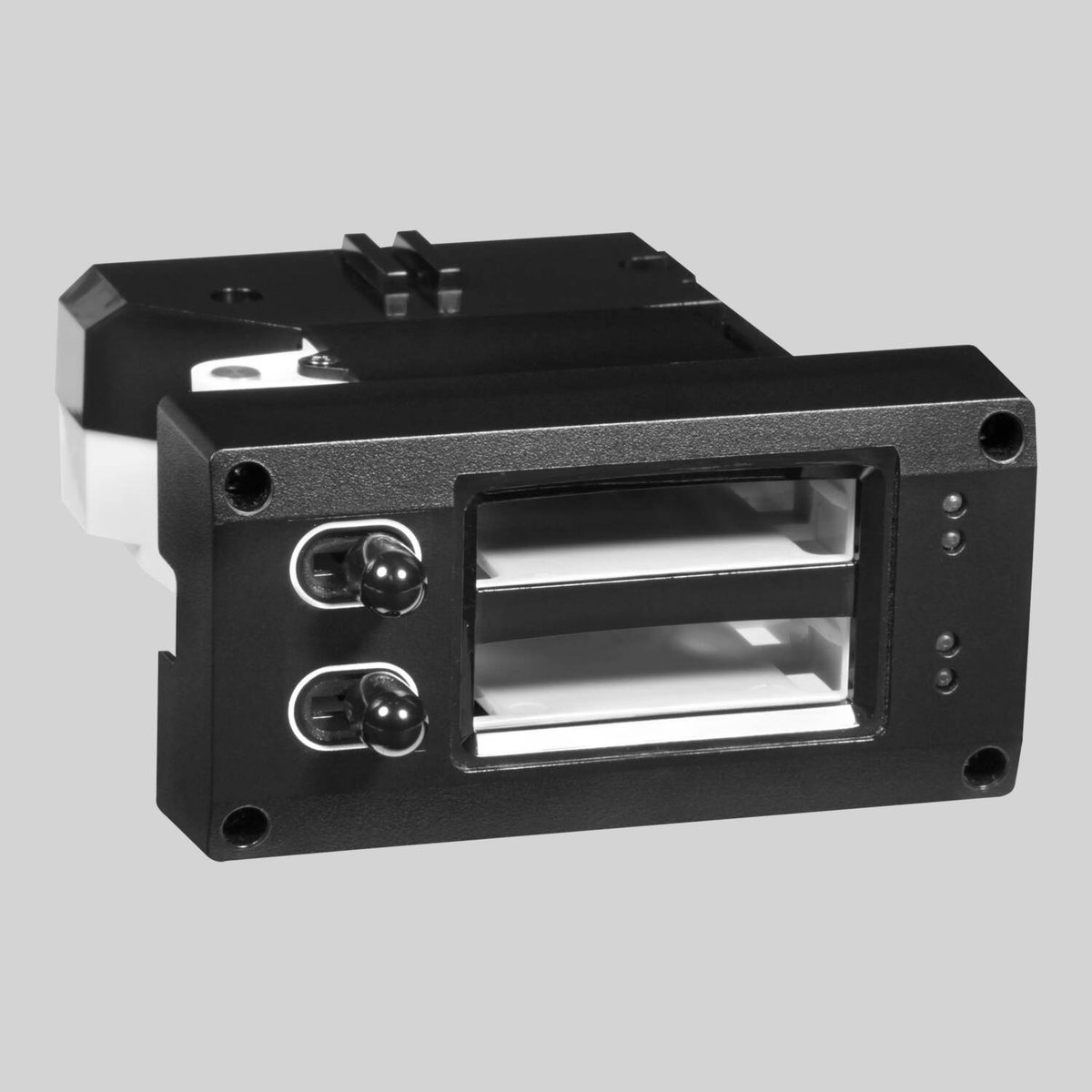

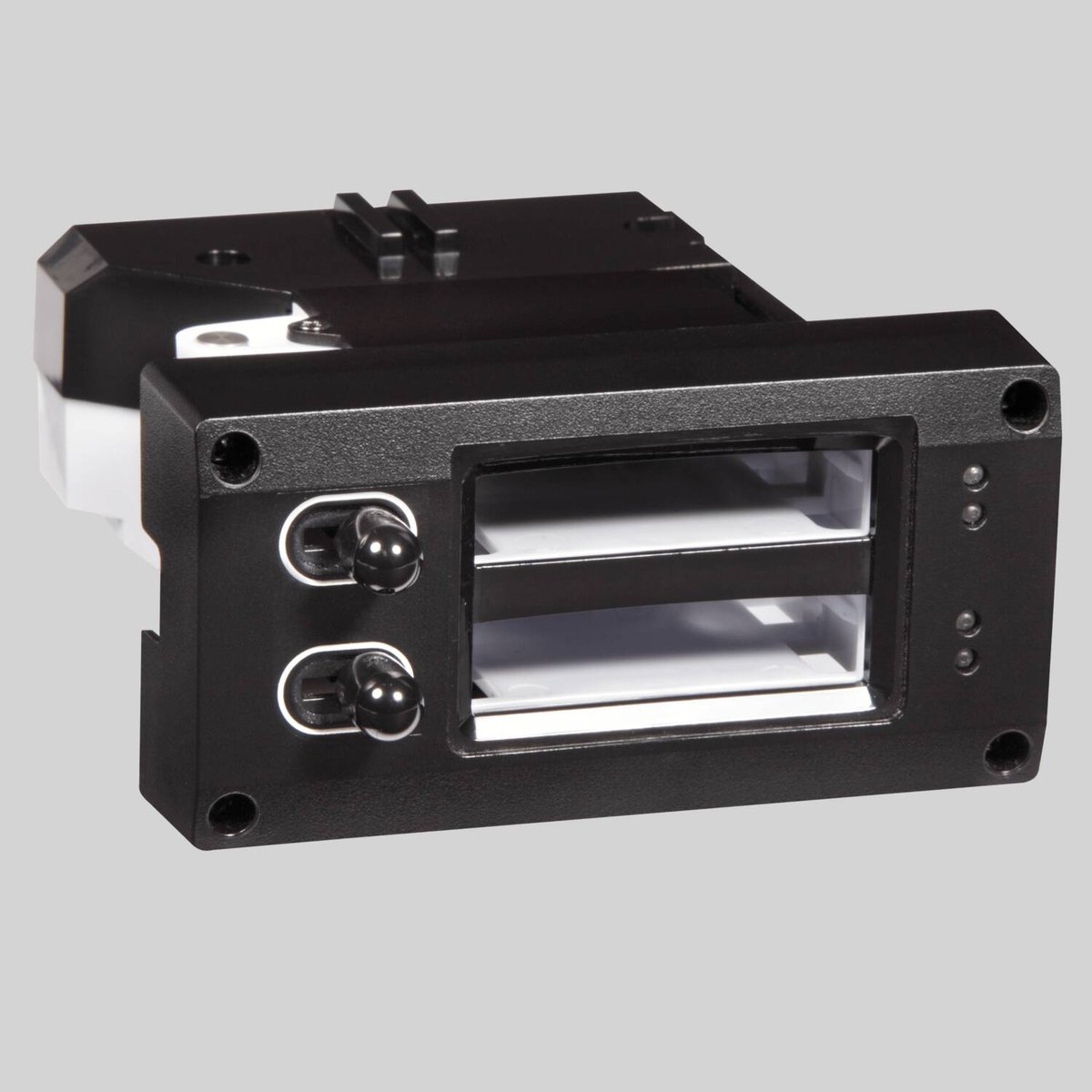

Shure SBM910M
The Shure SBM910M is a two-bay charging module for SB910M lithium-ion batteries, the packs that power ADX1M micro-bodypack transmitters in the Axient Digital system. It is not a standalone charger: the module slots into a Shure SBRC rack charging housing and draws its power from that host, letting a facility standardize on one rackmount charging solution for mixed battery types. Configurable SBRC bays accept up to four modules, so a single rack can service eight SB910M batteries at once.
Charging is fast, reaching 50 percent in about one hour and a full charge in three. Because the SBRC system is networked, the SBM910M reports charge level and life-cycle statistics for each battery so a crew can track health and plan replacements. The module is built from molded ABS and cast aluminum and holds two SB910M batteries per slot.
| Type | Two-bay charging module |
|---|---|
| Capacity | Charges 2 SB910M batteries |
| Host | Fits Shure SBRC rack charger (sold separately; no power supply) |
| Charge Time | 50% in 1 hour, full in 3 hours |
| Networking | Charge-level and life-cycle metering |
| Construction | Molded ABS, cast aluminum |
| Dimensions | 1.8 x 3.4 x 4.0 in (44 x 86 x 100 mm) |
| Weight | 3.2 oz (90.4 g) |
