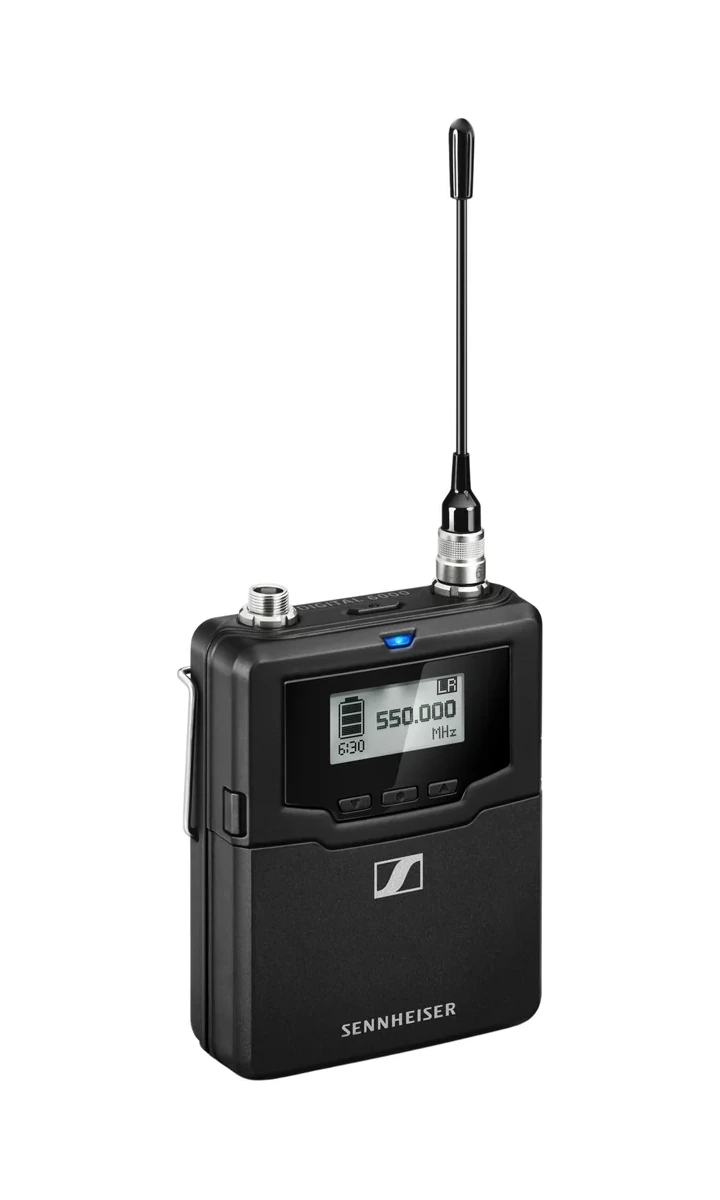

Sennheiser SK 6000 Digital 6000 Bodypack Transmitter

The SK 6000 is Sennheiser's Digital 6000 bodypack transmitter, built for large-scale productions where dozens of wireless channels need to coexist in the same RF spectrum without interference. Its intermodulation-free design and Link Density Mode pack up to 5 links into every 1 MHz of bandwidth, letting a large musical or broadcast production run far more channels than a conventional analog system in the same space.

A magnesium housing keeps it durable without adding bulk, and it accepts clip-on microphones like the MKE 1, MKE 2, and MKE 40, or headsets like the HSP 2, HSP 4, and SL Headmic. AES 256 and Digital 9000 encryption protect the RF link, and a BA 61 lithium-ion pack runs up to 6.5 hours per charge. It pairs with the EK 6042 or EM 9046 receiver in Long Range mode, or the EM 6000 in Link Density mode.

  • Dimensions (H × W × D)76 × 62 × 20 mm (with BA 61 battery pack)
  • RF output powerLR: 25 mW rms; LD: 3.5 mW rms
  • Input impedanceMic: 22 kΩ; Line: 1 MΩ
  • Mic / Line input3-pin audio socket
  • Antenna outputCoaxial socket
Frequency Range (SK 6000 A1 - A4)470 - 558 MHz
Frequency Range (SK 6000 A5 - A8)550 - 638 MHz
Modulation SchemeDigital modulation: Long Range Mode (LR), Link Density Mode (LD)
Audio CodecLR mode: SeDAC (Sennheiser Digital Audio Codec); LD mode: SePAC (Sennheiser Performance Audio Codec)
Switching Bandwidth88 MHz
Frequency Stability< 5 ppm
Tuneability25 kHz steps
EncryptionAES 256 and Digital 9000 encryption
Lower Cut-Off-Frequency (-3 dB)Mic: adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz; Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
RF Output PowerLR: 25 mW rms; LD: 3.5 mW rms
Audio Frequency ResponseLR: 30 Hz to 20 kHz (3 dB); LD: 30 Hz to 14 kHz (3 dB)
Audio GainMic: adjustable in 3 dB steps from 0 dB to +42 dB; Line: adjustable in 3 dB steps from -6 dB to +9 dB
Input ImpedanceMic: 22 kΩ; Line: 1 MΩ
Mic / Line Input3-pin audio socket
Instrument Cable EmulationAdjustable cable length with 3 steps
Antenna OutputCoaxial socket
Operating Time6.5 h (with BA 61 battery pack)
Dimensions (H × W × D)76 × 62 × 20 mm (with BA 61 battery pack)
WeightApprox. 147 g (with BA 61 battery pack and beltclip)
SourceSpec sheet (PDF) on sennheiser.com
