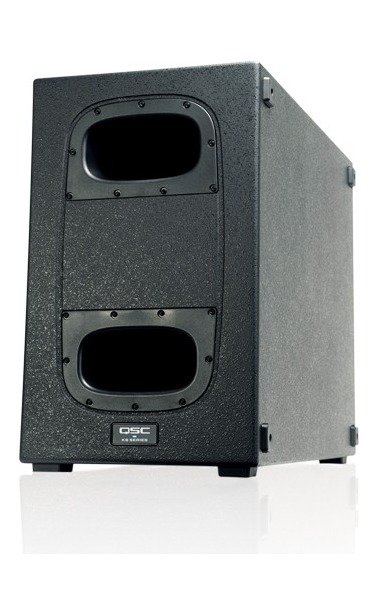

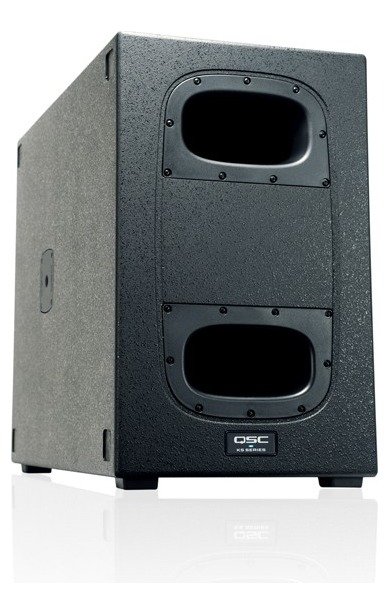

QSC KS212C Powered Cardioid Subwoofer

The KS212C runs dual 12 inch long-excursion drivers, each in its own sixth-order bandpass chamber, off a dual 1800 W Class D amplifier module. The two drivers fire in a cardioid pattern that puts roughly 15 dB more output in front of the box than behind it, the difference between 30 W and 1000 W of energy, so low end stays out of vocal mics and off the stage instead of filling the room from every direction.

That directional control makes it a natural fit for houses of worship, corporate stages, and any room where rear or side spill causes feedback or muddies the mix. Balanced XLR input and thru wiring daisy-chain into an existing system, and the single cabinet replaces the pair of subs a non-cardioid rig would need to get the same rejection.

ConfigurationPowered dual 12 in cardioid subwoofer
Drivers2x 12 in long-excursion woofers, sixth-order bandpass
AmplifierClass D, dual 1800 W
PatternCardioid, approximately 15 dB front-to-rear rejection

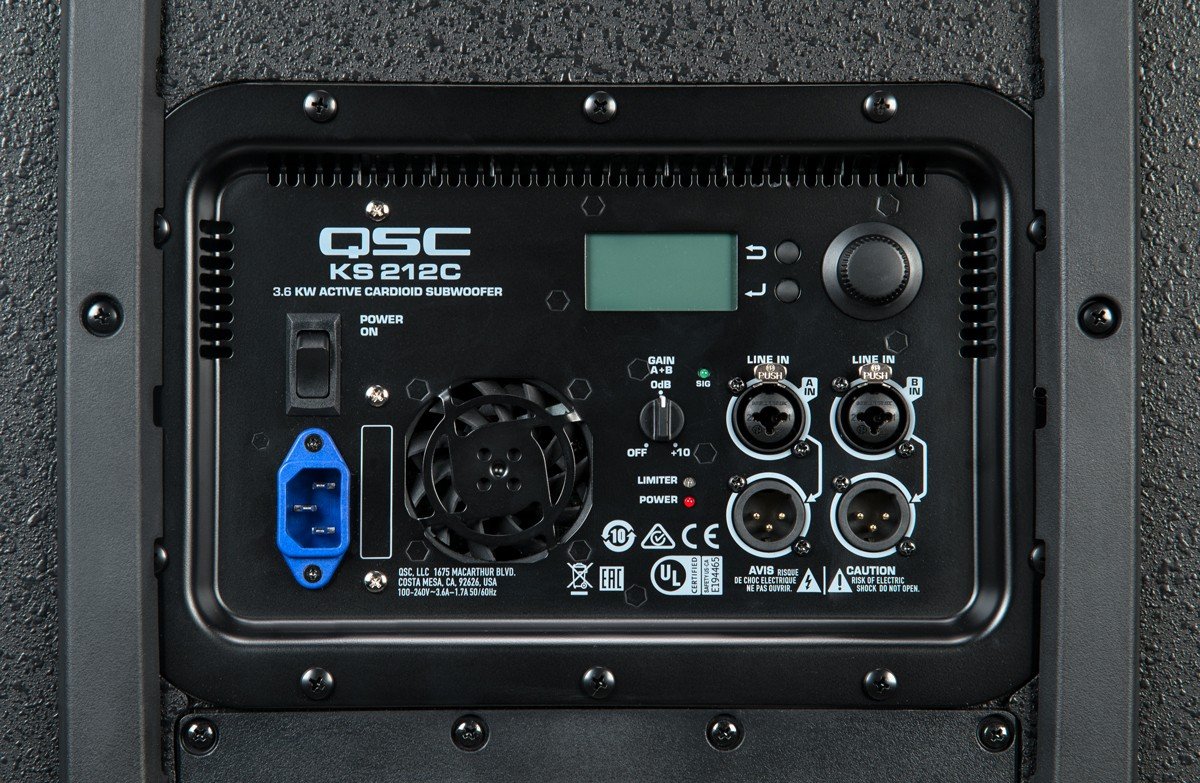

InputBalanced XLR in with XLR thru
ApplicationHouses of worship, corporate AV, feedback-sensitive stages
