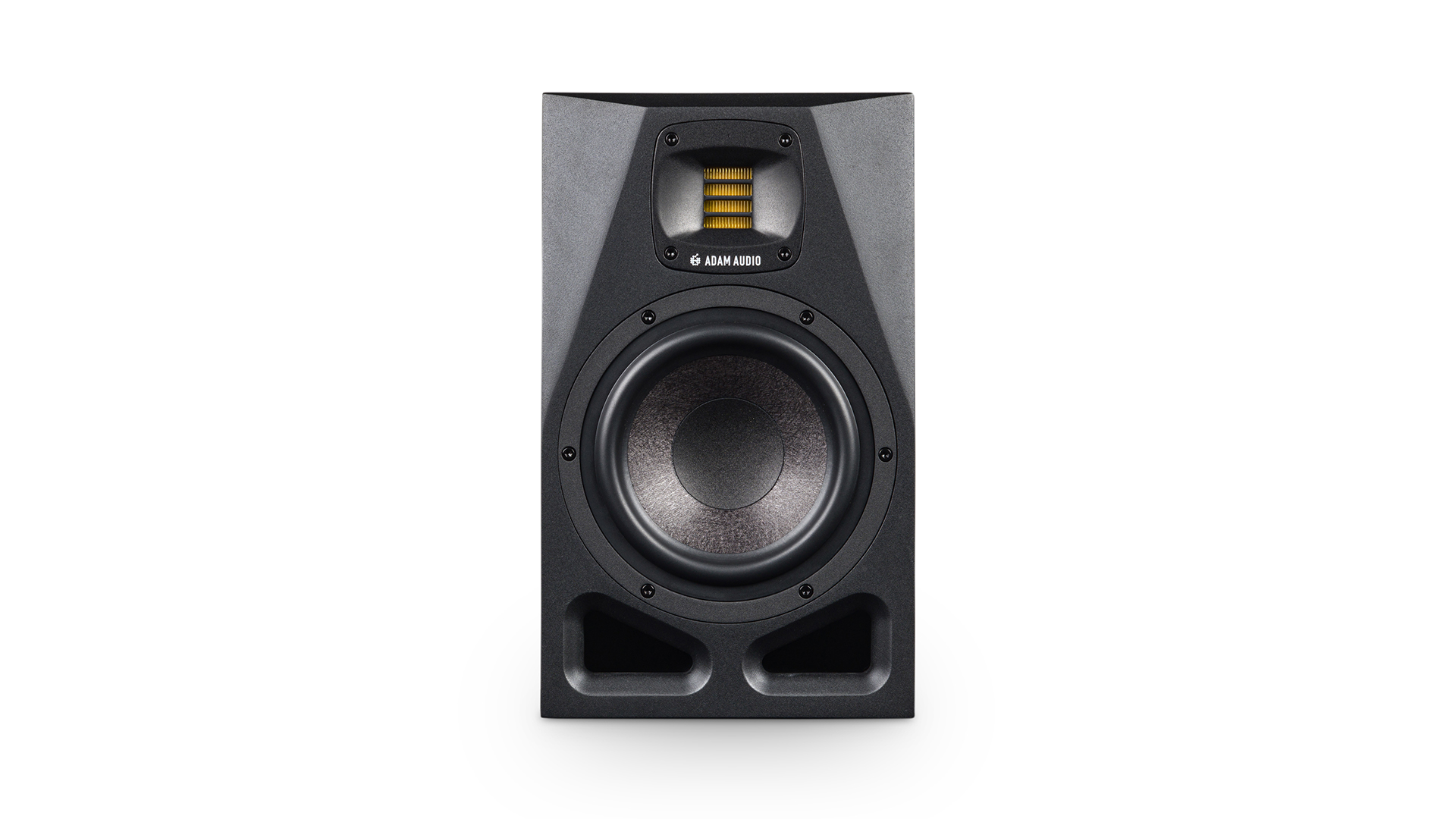

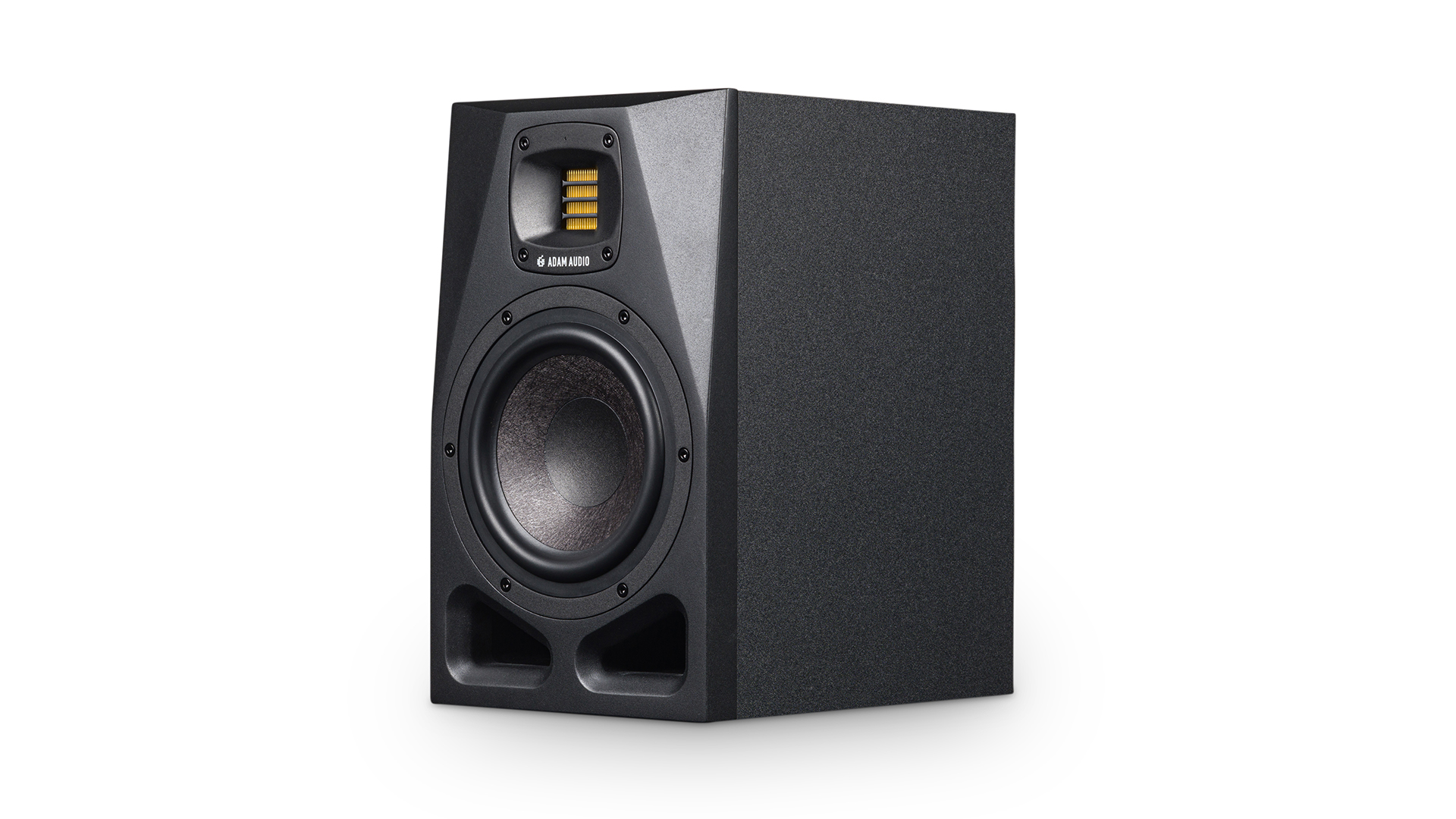

ADAM Audio A7V 7-inch Active Studio Monitor

The A7V is the two-way that replaced ADAM Audio's A7X. A 7-inch Multi-Layer Mineral woofer crosses at 2.8 kHz to a hand-built X-ART tweeter in a rotatable HPS waveguide, and the dual front ports let it sit close to a wall without the low end turning to mush.

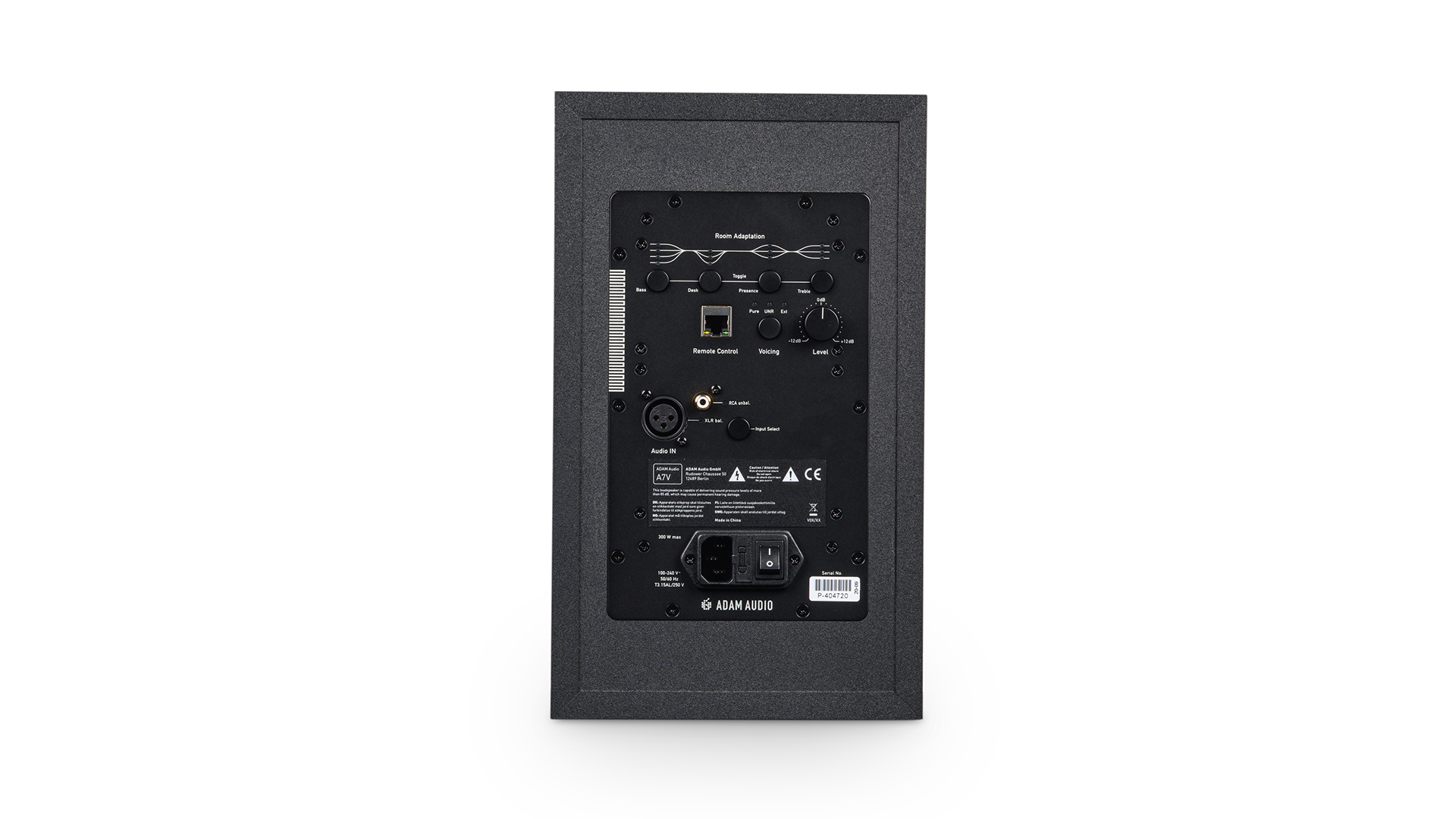

Voicing, EQ and room adaptation run in DSP and are set from A Control over Ethernet, including six bands of parametric EQ, level and delay, plus import of a Sonarworks SoundID Reference profile. Inputs are XLR and RCA, the amplifier stage pairs a PWM woofer amp with a Class A/B tweeter amp, and four M8 inserts on the base take stands or mounts.

TypeTwo-way active nearfield monitor
Woofer7 inch Multi-Layer Mineral
TweeterHandmade X-ART with rotatable HPS waveguide
Frequency Response40 Hz - 45 kHz (-6 dB)
Crossover2.8 kHz
Total Peak Amp Power130 W
Max Peak SPL at 1 m105 dB SPL
InputsXLR and RCA analog, RJ45 Ethernet for A Control
